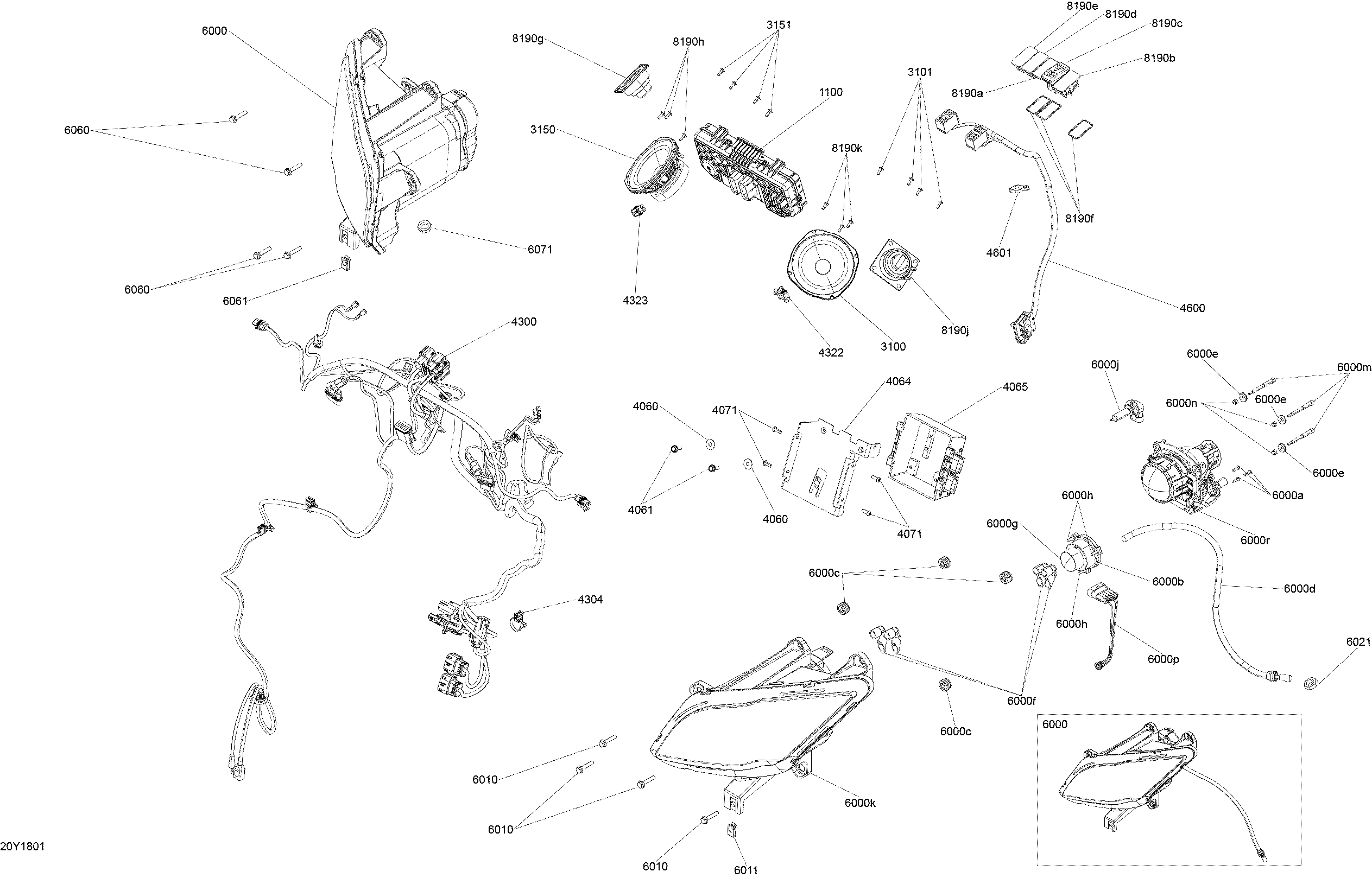

10- Electrical Console - STD для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
1100710005254 Speed-prog. North AmericaSpeed-prog. North America
-
1100710005254 Speed-prog. North AmericaSpeed-prog. North America
-
1100710006301 Speed-prog. Australia, EuropeSpeed-prog. Australia, Europe
-
1100710006301 Speed-prog. Australia, EuropeSpeed-prog. Australia, Europe
-
1100710006303 Speed-prog. JapanSpeed-prog. Japan
-
1100710006303 Speed-prog. JapanSpeed-prog. Japan
-
3100710005433 4.5'' Speaker4.5'' Speaker
-
3100710005433 4.5'' Speaker4.5'' Speaker
-
3101250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
3101250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
3150710005433 4.5'' Speaker4.5'' Speaker
-
3150710005433 4.5'' Speaker4.5'' Speaker
-
3151250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
3151250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
4060234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4060234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4061210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4061210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4064710005814 Amplifier HolderAmplifier Holder
-
4064710005814 Amplifier HolderAmplifier Holder
-
4065710005431 Amplifier 6 X 20 WattsAmplifier 6 X 20 Watts
-
4065710005431 Amplifier 6 X 20 WattsAmplifier 6 X 20 Watts
-
4071235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
4071235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
4075710004901 Connector Plug. North AmericaConnector Plug. North America
-
4075710004901 Connector Plug. North AmericaConnector Plug. North America
-
4076710004901 Connector Plug. North AmericaConnector Plug. North America
-
4076710004901 Connector Plug. North AmericaConnector Plug. North America
-
4300710005464 Dashboard HarnessDashboard Harness
-
4300710005464 Dashboard HarnessDashboard Harness
-
4304710005037 ClipClip
-
4304710005037 ClipClip
-
4322710002162 Packard Connector With PlugPackard Connector With Plug
-
4322710002162 Packard Connector With PlugPackard Connector With Plug
-
4323710002162 Packard Connector With PlugPackard Connector With Plug
-
4323710002162 Packard Connector With PlugPackard Connector With Plug
-
4600710005527 Switch HarnessSwitch Harness
-
4600710005527 Switch HarnessSwitch Harness
-
4601414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4601414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6000710001384 LH High Beam Ass'y. Australia. Includes 6000 to 6000qLH High Beam Ass'y. Australia. Includes 6000 to 6000q
-
6000710001384 LH High Beam Ass'y. Australia. Includes 6000 to 6000qLH High Beam Ass'y. Australia. Includes 6000 to 6000q
-
6000710001386 RH High Beam Ass'y. Australia. Includes 6000 to 6000qRH High Beam Ass'y. Australia. Includes 6000 to 6000q
-
6000710001386 RH High Beam Ass'y. Australia. Includes 6000 to 6000qRH High Beam Ass'y. Australia. Includes 6000 to 6000q
-
6000710001536 LH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000rLH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000r
-
6000710001536 LH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000rLH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000r
-
6000710001537 RH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000rRH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000r
-
6000710001537 RH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000rRH Bi-Halogen Beam Ass'y. North America. Includes 6000 to 6000r
-
6000a219800110 Chromed Screw 4X13Chromed Screw 4X13
-
6000a219800110 Chromed Screw 4X13Chromed Screw 4X13
-
6000b219800174 Cover With GasketCover With Gasket
-
6000b219800174 Cover With GasketCover With Gasket
-
6000c219800100 AntivibrationAntivibration
-
6000c219800100 AntivibrationAntivibration
-
6000d219800111 Adjustement CableAdjustement Cable
-
6000d219800111 Adjustement CableAdjustement Cable
-
6000e219800099 SpacerSpacer
-
6000e219800099 SpacerSpacer
-
6000f219800101 Rubber VentilationRubber Ventilation
-
6000f219800101 Rubber VentilationRubber Ventilation
-
6000g710002031 Light Housing. North AmericaLight Housing. North America
-
6000g710002031 Light Housing. North AmericaLight Housing. North America
-
6000h219800134 Chromed Screw 4X19. North AmericaChromed Screw 4X19. North America
-
6000h219800134 Chromed Screw 4X19. North AmericaChromed Screw 4X19. North America
-
6000j219800140 Halogen Bulb H9 65W. AustraliaHalogen Bulb H9 65W. Australia
-
6000j219800140 Halogen Bulb H9 65W. AustraliaHalogen Bulb H9 65W. Australia
-
6000j219800136 Halogen Bulb HB3 65W. North AmericaHalogen Bulb HB3 65W. North America
-
6000j219800136 Halogen Bulb HB3 65W. North AmericaHalogen Bulb HB3 65W. North America
-
6000k710000779 HousingHousing
-
6000k710000779 HousingHousing
-
6000m219800106 Fixing Screw KitFixing Screw Kit
-
6000m219800106 Fixing Screw KitFixing Screw Kit
-
6000n219800109 Fixing Nut Kit. North AmericaFixing Nut Kit. North America
-
6000n219800109 Fixing Nut Kit. North AmericaFixing Nut Kit. North America
-
6000p219800114 Beam Harness. AustraliaBeam Harness. Australia
-
6000p219800114 Beam Harness. AustraliaBeam Harness. Australia
-
6000p219800107 Beam Harness. North AmericaBeam Harness. North America
-
6000p219800107 Beam Harness. North AmericaBeam Harness. North America
-
6000p219800135 Beam Harness. North AmericaBeam Harness. North America
-
6000p219800135 Beam Harness. North AmericaBeam Harness. North America
-
6000q219800109 Fixing Nut Kit. AustraliaFixing Nut Kit. Australia
-
6000q219800109 Fixing Nut Kit. AustraliaFixing Nut Kit. Australia
-
6000r219800138 Module. North AmericaModule. North America
-
6000r219800138 Module. North AmericaModule. North America
-
6010207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
6010207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
6011250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6011250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6021232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
6021232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
6060207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
6060207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
6061250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6061250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6071232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
6071232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
8190a710002260 PlugPlug
-
8190a710002260 PlugPlug
-
8190b710001999 Plug CarlingPlug Carling
-
8190b710001999 Plug CarlingPlug Carling
-
8190c710002354 Switch, Heat GripSwitch, Heat Grip
-
8190c710002354 Switch, Heat GripSwitch, Heat Grip
-
8190d710001999 Plug CarlingPlug Carling
-
8190d710001999 Plug CarlingPlug Carling
-
8190e710001999 Plug CarlingPlug Carling
-
8190e710001999 Plug CarlingPlug Carling
-
8190f710002288 Panel SealPanel Seal
-
8190f710002288 Panel SealPanel Seal
