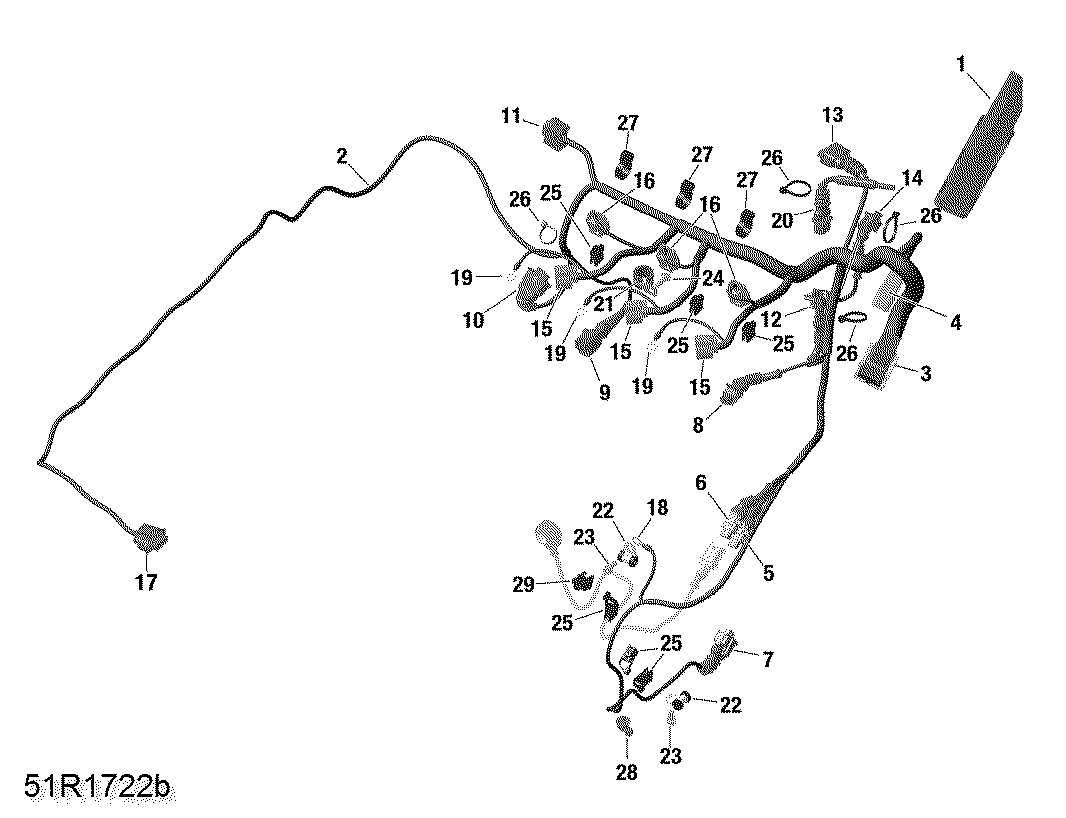

10- Engine Harness and Electronic Module - SM6 для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
1420464231 Electronic BoxElectronic Box
-
2>18420266783 Wiring HarnessWiring Harness
-
4270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
7278001830 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9710001184 HousingHousing
-
10278001830 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
11710001872 Housing, 6 PositionsHousing, 6 Positions
-
12415128500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
13515176410 Male ConnectorMale Connector
-
15710002516 Connector COIL 1-3Connector COIL 1-3
-
16515176129 Connector INJ.Connector INJ.
-
17515176410 Male ConnectorMale Connector
-
19420853412 Cable clipCable clip
-
20420853414 ClampClamp
-
21420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
22420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
23420951650 Cable ClampCable Clamp
-
24420866714 Tie RapTie Rap
-
25420851493 Cable ClampCable Clamp
-
26420866716 Tie-RapTie-Rap
-
27420951341 Tie-Rap With MountTie-Rap With Mount
