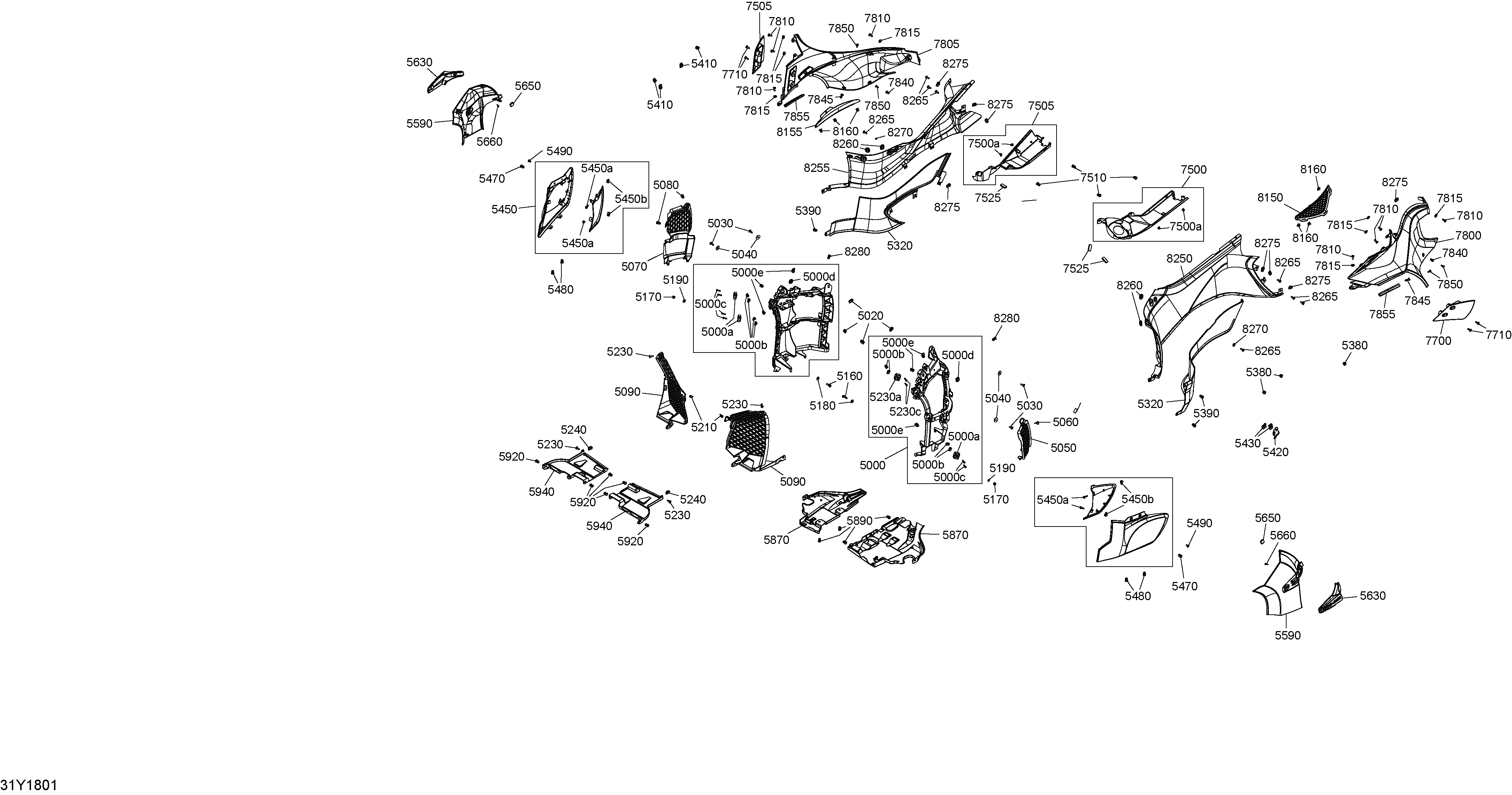

09- Body And Accessories - Panels для BRP RT STD SM6 & SE6 - 2018
-
№АртикулНазвание
-
5000705009063 LH Support. Includes 5000 to 5000eLH Support. Includes 5000 to 5000e
-
5000705009064 RH Support. Includes 5000 to 5000eRH Support. Includes 5000 to 5000e
-
5000a705005055 Grommet Ass'yGrommet Ass'y
-
5000b250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5000c207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
5000d705003264 GrommetGrommet
-
5000e250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5020250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5030250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5040250200029 Washer M6Washer M6
-
5050705007307 LH Side GrillLH Side Grill
-
5060708000759 Rubber StopperRubber Stopper
-
5070705004803 RH Side GrillRH Side Grill
-
5080293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5090705004789 LH Radiatior MouldingLH Radiatior Moulding
-
5090705004790 RH Radiatior MouldingRH Radiatior Moulding
-
5160207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5170233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5180234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5190250100163 Pressure NutPressure Nut
-
5210210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5230250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5240250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5320705006820 LH Lower PannelLH Lower Pannel
-
5320705007736 RH Lower PannelRH Lower Pannel
-
5390293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5450705003759 LH Water Deflector Ass'y. Includes 5450 to 5450bLH Water Deflector Ass'y. Includes 5450 to 5450b
-
5450705003760 RH Water Deflector Ass'y. Includes 5450 to 5450bRH Water Deflector Ass'y. Includes 5450 to 5450b
-
5450a207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
5450b250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5470293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5480293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5490250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
5590705008999 Vegas White Pearl LH Side PanelVegas White Pearl LH Side Panel
-
5590705009000 Vegas White Pearl RH Side PanelVegas White Pearl RH Side Panel
-
5630705010214 Black Carbon Lh Lat Pan CapBlack Carbon Lh Lat Pan Cap
-
5630705010215 Black Carbon Rh Lat Pan CapBlack Carbon Rh Lat Pan Cap
-
5650293830143 Rubber PadRubber Pad
-
5660250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
5870705004610 LH Deflector PannelLH Deflector Pannel
-
5880705004611 RH Deflector PannelRH Deflector Pannel
-
5890293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5920293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5940705005438 LH Skid PlateLH Skid Plate
-
5940705005439 RH Skid PlateRH Skid Plate
-
7500705004631 LH Tank Cover Ass'y. Includes 7500 to 7500aLH Tank Cover Ass'y. Includes 7500 to 7500a
-
7500a293750044 Tie Rap MountTie Rap Mount
-
7505705004632 RH Tank Cover Ass'y. Includes 7505 to 7505aRH Tank Cover Ass'y. Includes 7505 to 7505a
-
7505a293750044 Tie Rap Mount. Not ShownTie Rap Mount. Not Shown
-
7510293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
7525293200003 Neoprene SealNeoprene Seal
-
7700705004924 LH Lower Air DeflectorLH Lower Air Deflector
-
7705705004925 RH Lower Air DeflectorRH Lower Air Deflector
-
7710250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
7800705006168 White LH Upper PanelWhite LH Upper Panel
-
7801518329812 Upper Panel FoamUpper Panel Foam
-
7802518329821 LH Upper Panel FoamLH Upper Panel Foam
-
7805705006167 White RH Upper PanelWhite RH Upper Panel
-
7806518329820 RH Upper Panel FoamRH Upper Panel Foam
-
7810250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7815234062670 Flat Washer, StainlessFlat Washer, Stainless
-
7840705003842 KnobKnob
-
7845705003746 Angled KnobAngled Knob
-
7850250000459 Torx Screw, K50X16Torx Screw, K50X16
-
7855293200149 Neoprene SealNeoprene Seal
-
8150705003385 LH Upper Side Panel GrillLH Upper Side Panel Grill
-
8155705003386 RH Upper Side Panel GrillRH Upper Side Panel Grill
-
8160517302785 ClipClip
-
8250705006178 White LH Lateral PanelWhite LH Lateral Panel
-
8255705006177 White RH Upper Lateral PanelWhite RH Upper Lateral Panel
-
8260705000321 Oval WasherOval Washer
-
8265250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
8270234062670 Flat Washer, StainlessFlat Washer, Stainless
-
8275250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8280293150089 Tuflok Plastic RivetTuflok Plastic Rivet
