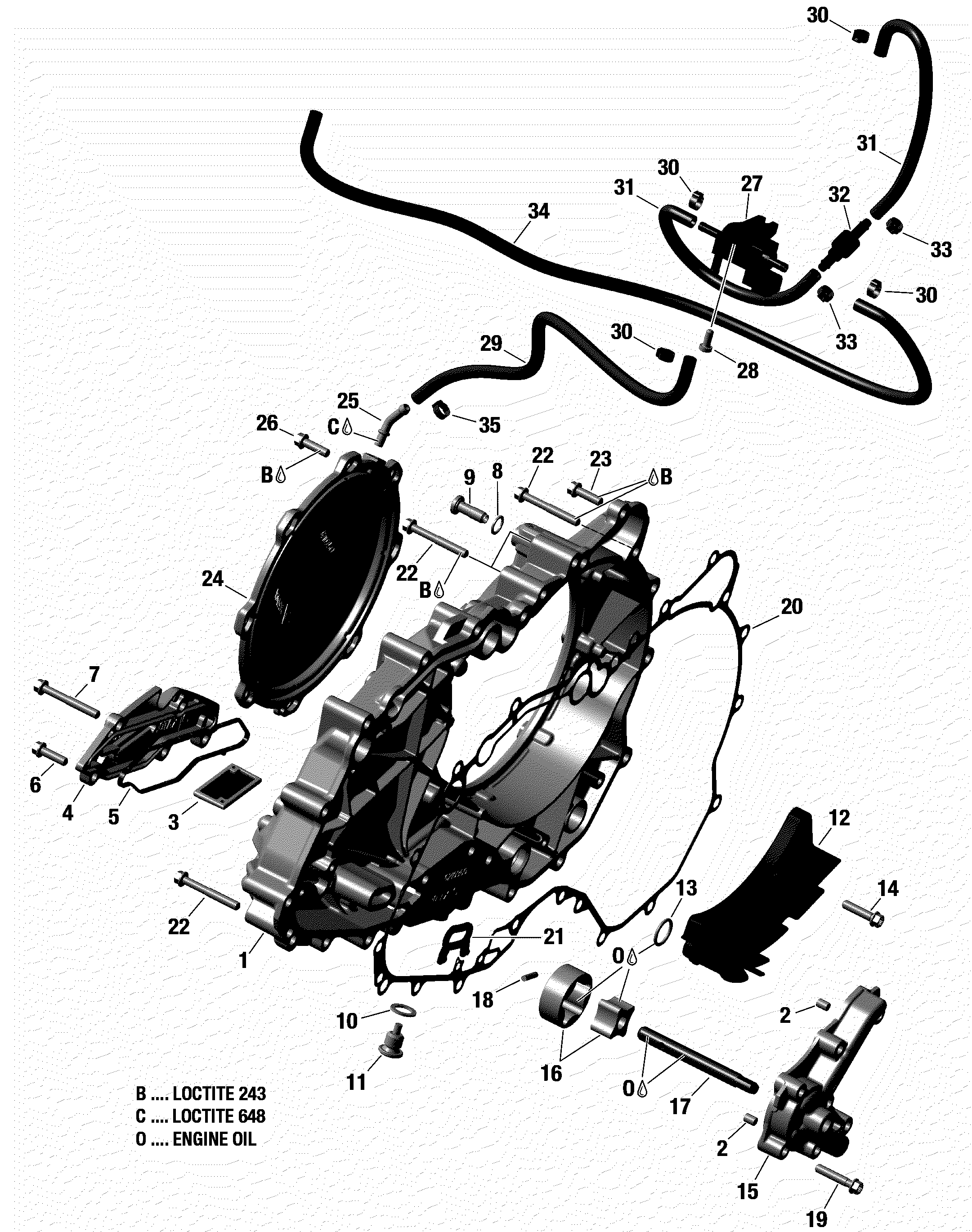

01- Clutch Cover для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
1>2420210353 Clutch Cover Ass'yClutch Cover Ass'y
-
2420232210 Center PinCenter Pin
-
3420656990 Oil SieveOil Sieve
-
4420210871 Oil Duct CoverOil Duct Cover
-
5420250630 GasketGasket
-
6420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
7420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
8420230150 Oil SealOil Seal
-
9420441701 Banjo BoltBanjo Bolt
-
10420250640 Copper WasherCopper Washer
-
11420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
12420224080 Oil Guiding PlateOil Guiding Plate
-
13420430220 O-RingO-Ring
-
14420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420612240 Oil Pump HousingOil Pump Housing
-
16420956278 Oil Pump RotorOil Pump Rotor
-
17420637140 Oil Pump ShaftOil Pump Shaft
-
18420232731 Needle PinNeedle Pin
-
19420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
20>21420450032 Gasket Ass`yGasket Ass`y
-
22420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
23420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
24>25420212238 Diaphragm CoverDiaphragm Cover
-
26420441835 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
27420664635 Solenoide ValveSolenoide Valve
-
28420640086 Torx Screw M5 X 12Torx Screw M5 X 12
-
29420260285 Hose 430 mmHose 430 mm
-
30420853133 Clamp 9.2-10.9 mmClamp 9.2-10.9 mm
-
31420260285 Hose 430 mmHose 430 mm
-
32420201480 Check ValveCheck Valve
-
33420851463 Gear ClampGear Clamp
-
34420260283 Hose 640mmHose 640mm
-
35420851468 Gear ClampGear Clamp
