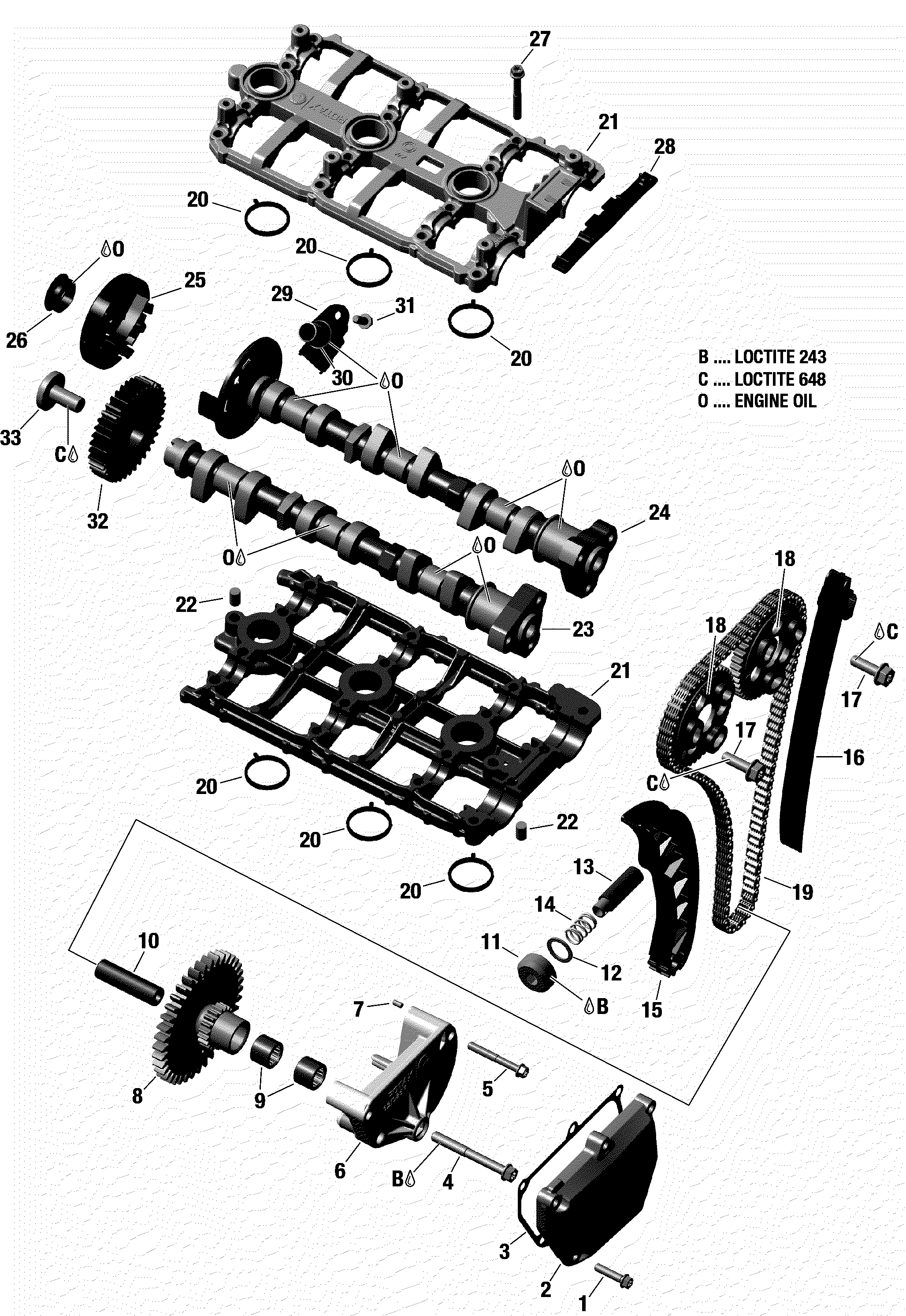

01- Valve Train для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
1420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
2420210861 Valve Train CoverValve Train Cover
-
3420450040 GasketGasket
-
4420440403 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
5420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
6420210868 Bearing BracketBearing Bracket
-
7420929075 Needle PinNeedle Pin
-
8>9420435316 Intermediate Gear 38\19 Teeth Ass'yIntermediate Gear 38\19 Teeth Ass'y
-
9420632391 Needle BushingNeedle Bushing
-
10420249011 Intermediate Gear ShaftIntermediate Gear Shaft
-
11420242365 Screw M24 X 1Screw M24 X 1
-
12420430623 Gasket RingGasket Ring
-
13420236910 Chain TensionerChain Tensioner
-
14420238734 Compression SpringCompression Spring
-
15420236900 Chain TensionerChain Tensioner
-
16420236890 Chain GuideChain Guide
-
17420440374 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
18420253185 Camshaft Sprocket 42TCamshaft Sprocket 42T
-
19420297420 Camshaft ChainCamshaft Chain
-
20420431765 GasketGasket
-
21>22420210175 Camshaft Support Ass'yCamshaft Support Ass'y
-
22420632010 Center Pin 8 X 12Center Pin 8 X 12
-
23420237179 Camshaft ExhaustCamshaft Exhaust
-
24420237178 Camshaft IntakeCamshaft Intake
-
25420201040 CoverCover
-
26420630125 V-RingV-Ring
-
27420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
28420936500 Chain Guide, UpperChain Guide, Upper
-
29>30420664045 Camshaft Position Sensor Ass'yCamshaft Position Sensor Ass'y
-
30420631890 O-RingO-Ring
-
31420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
32420435370 Drive Gear 39 TeethDrive Gear 39 Teeth
-
33420441365 Flat Head Screw M12 X 1.5Flat Head Screw M12 X 1.5
