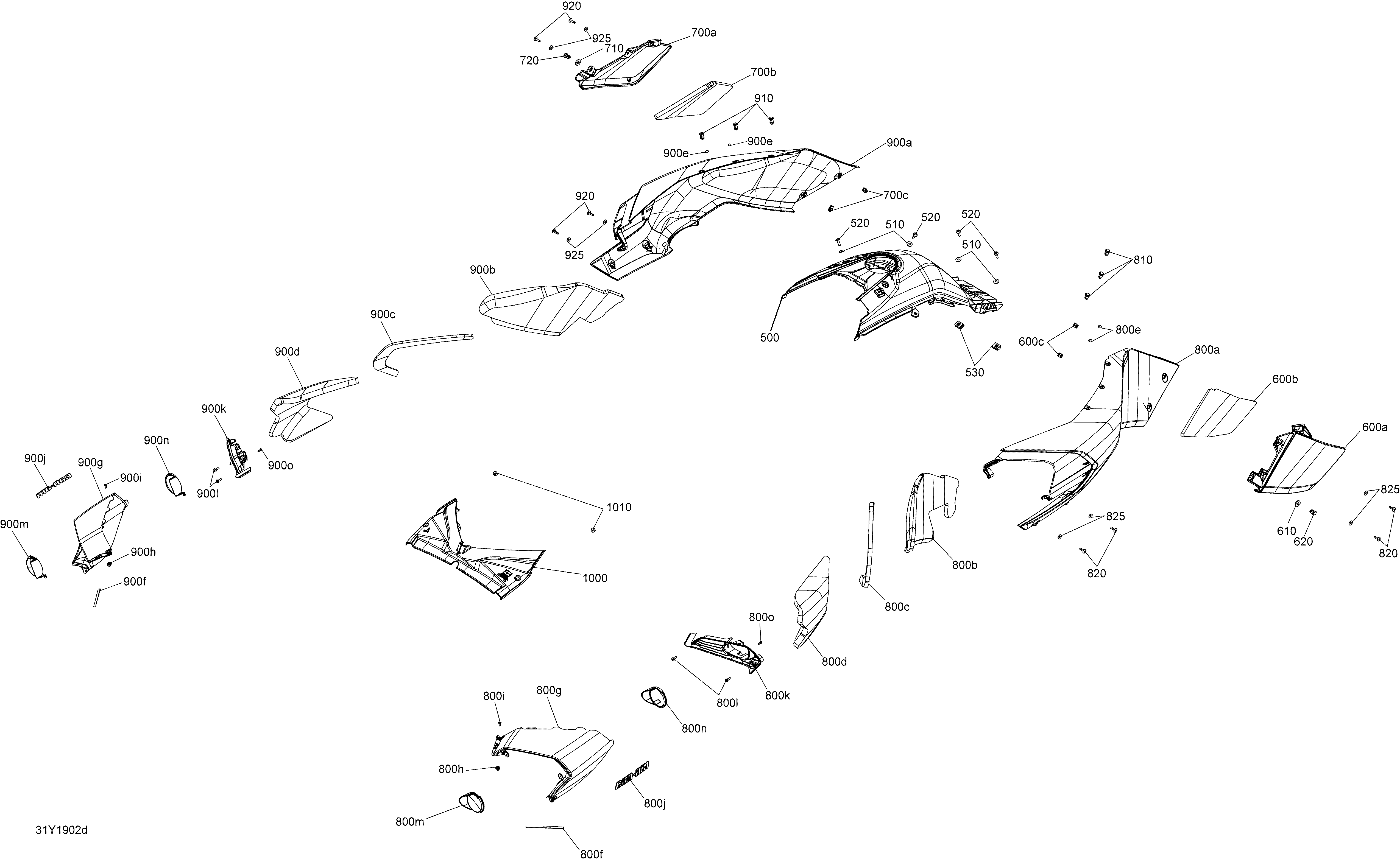

09- Body And Accessories Fairing для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
500705013571 Tank Cover - Deep BlackTank Cover - Deep Black
-
510234062670 Flat Washer, StainlessFlat Washer, Stainless
-
520250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
600a705009918 Lh Low Fairing - Monolith Black. Model B-393 Monolith BlackLh Low Fairing - Monolith Black. Model B-393 Monolith Black
-
600a705010775 LH Low Fairing - Oxford Blue. Model B-406 Oxford BlueLH Low Fairing - Oxford Blue. Model B-406 Oxford Blue
-
600a705013390 LH Low Fairing - Liquid Titan. Model B-429 Liquid TitanLH Low Fairing - Liquid Titan. Model B-429 Liquid Titan
-
600b705009153 Acoustic FoamAcoustic Foam
-
600c250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
610705010890 SpacerSpacer
-
620293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
700a705009919 Rh Lower Fairing - Monolith Black. Model B-393 Monolith BlackRh Lower Fairing - Monolith Black. Model B-393 Monolith Black
-
700a705010777 RH Lower Fairing - Oxford Blue. Model B-406 Oxford BlueRH Lower Fairing - Oxford Blue. Model B-406 Oxford Blue
-
700a705013395 RH Lower Fairing - Liquid Titan. Model B-429 Liquid TitanRH Lower Fairing - Liquid Titan. Model B-429 Liquid Titan
-
700b705009154 Acoustic FoamAcoustic Foam
-
700c250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
710705010890 SpacerSpacer
-
720293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
800a705010779 LH Lateral Fairing - Oxford Blue. Model B-406 Oxford BlueLH Lateral Fairing - Oxford Blue. Model B-406 Oxford Blue
-
800a705013396 LH Lateral Fairing - Liquid Titan. Model B-429 Liquid TitanLH Lateral Fairing - Liquid Titan. Model B-429 Liquid Titan
-
800b705009155 Acoustic FoamAcoustic Foam
-
800c705009157 Acoustic FoamAcoustic Foam
-
800d705009159 Acoustic FoamAcoustic Foam
-
800e705006634 Polyurethane StopperPolyurethane Stopper
-
800f293250143 SealSeal
-
800g705011175 LH Air Scoop - Carbon Black. Model B-429 Liquid TitanLH Air Scoop - Carbon Black. Model B-429 Liquid Titan
-
800g705011456 LH Air Scoop - Deep Black. Except Model B-429 Liquid TitanLH Air Scoop - Deep Black. Except Model B-429 Liquid Titan
-
800h705009430 Anchor PinAnchor Pin
-
800i250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
800j704905126 Logo Can-Am - Matt Black. Except Model B-429 Liquid TitanLogo Can-Am - Matt Black. Except Model B-429 Liquid Titan
-
800j704907415 Logo Can-Am - Liquid Titan. Model B-429 Liquid TitanLogo Can-Am - Liquid Titan. Model B-429 Liquid Titan
-
800k705010137 LH Air Vent Grid - Deep BlackLH Air Vent Grid - Deep Black
-
800l250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800m705007787 LH Light Cap - Deep Black. Canada/USALH Light Cap - Deep Black. Canada/USA
-
800n705008995 LH Heat Shield. Australia, Europe, JapanLH Heat Shield. Australia, Europe, Japan
-
800o250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
820250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
825234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
900a705010781 RH Lateral Fairing - Oxford Blue. Model B-406 Oxford BlueRH Lateral Fairing - Oxford Blue. Model B-406 Oxford Blue
-
900a705010839 RH Lateral Fairing - Monolith Black. Model B-393 Monolith BlackRH Lateral Fairing - Monolith Black. Model B-393 Monolith Black
-
900a705013572 RH Lateral Fairing - Liquid Titan. Model B-429 Liquid TitanRH Lateral Fairing - Liquid Titan. Model B-429 Liquid Titan
-
900b705009156 Acoustic FoamAcoustic Foam
-
900c705009158 Acoustic FoamAcoustic Foam
-
900d705009160 Acoustic FoamAcoustic Foam
-
900e705006634 Polyurethane StopperPolyurethane Stopper
-
900f293250143 SealSeal
-
900g705011176 RH Air Scoop - Carbon Black. Model B-429 Liquid TitanRH Air Scoop - Carbon Black. Model B-429 Liquid Titan
-
900g705011399 RH Air Scoop - Deep Black (non-painted). Except Model B-429 Liquid TitanRH Air Scoop - Deep Black (non-painted). Except Model B-429 Liquid Titan
-
900h705009430 Anchor PinAnchor Pin
-
900i250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
900j704905126 Logo Can-Am - Matt Black. Except Model B-429 Liquid TitanLogo Can-Am - Matt Black. Except Model B-429 Liquid Titan
-
900j704907415 Logo Can-Am - Liquid Titan. Model B-429 Liquid TitanLogo Can-Am - Liquid Titan. Model B-429 Liquid Titan
-
900k705010138 RH Air Vent Grid - Deep BlackRH Air Vent Grid - Deep Black
-
900l250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
900m705008963 RH Light Cap - Deep Black. Canada/USARH Light Cap - Deep Black. Canada/USA
-
900n705008996 RH Heat Shield. Australia, Europe, JapanRH Heat Shield. Australia, Europe, Japan
-
900o250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
920250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
925234052670 Inox. Flat Washer M5Inox. Flat Washer M5
-
1000705008058 Service Center FairingService Center Fairing
-
1010293830005 Rubber BumperRubber Bumper
