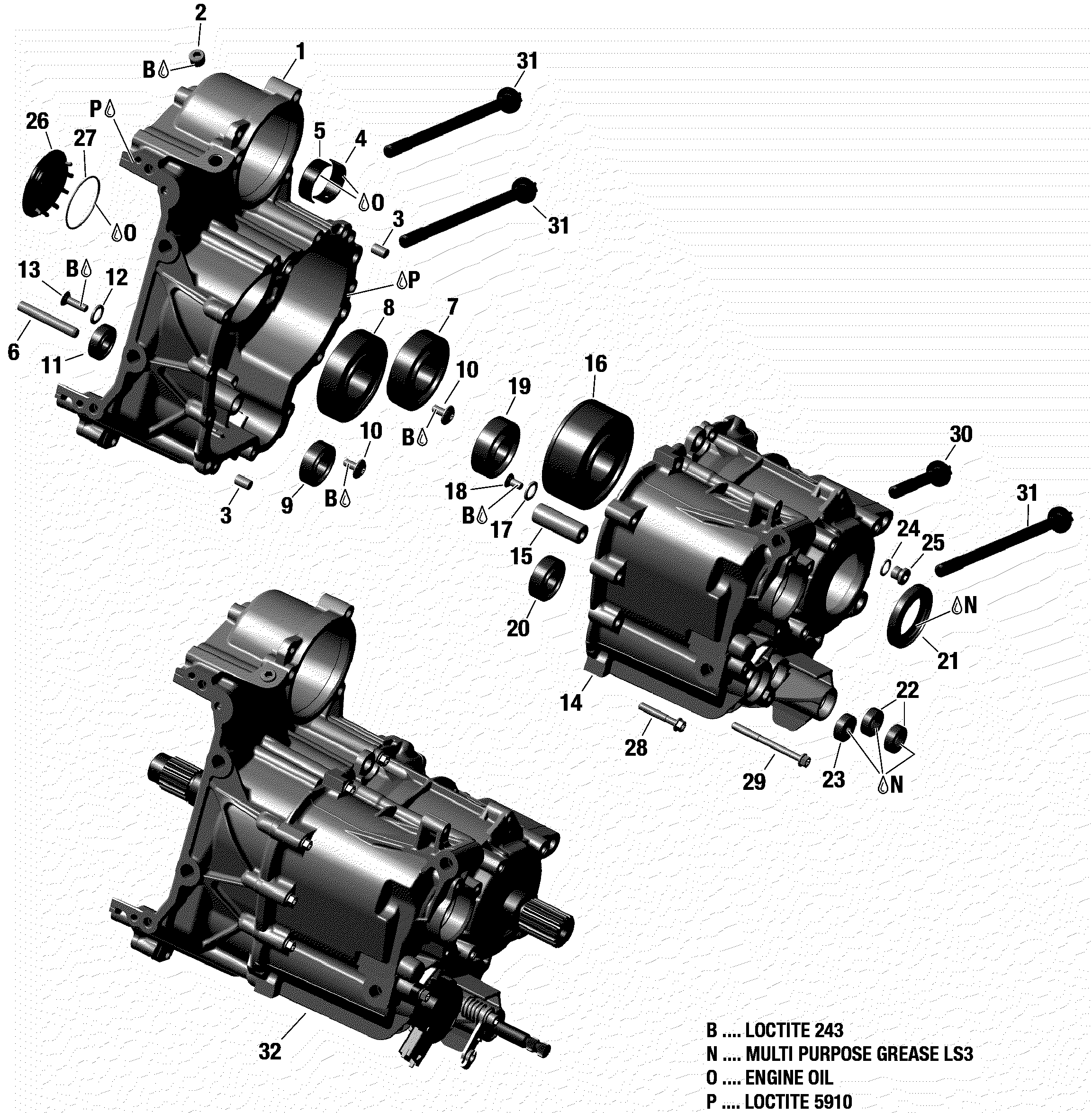

05- Gearbox Housing для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
1>13420212693 Gear Box Clutch SideGear Box Clutch Side
-
2420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
3420632010 Center Pin 8 X 12Center Pin 8 X 12
-
6420229384 Pin 8, M6 X 55Pin 8, M6 X 55
-
7420232782 Ball BearingBall Bearing
-
8420832232 Ball BearingBall Bearing
-
9420232625 Ball BearingBall Bearing
-
10420241535 Hex. Screw M6 X 13Hex. Screw M6 X 13
-
11420232402 Ball BearingBall Bearing
-
12420227085 WasherWasher
-
13420941436 Screw M6 X 20Screw M6 X 20
-
14>21420212684 Gear Box PTO SideGear Box PTO Side
-
15420249050 BoltBolt
-
16420632832 Ball BearingBall Bearing
-
17420227085 WasherWasher
-
18420441415 Screw M6 X 12Screw M6 X 12
-
19420932677 Ball BearingBall Bearing
-
20420932290 Ball BearingBall Bearing
-
21420831185 Oil SealOil Seal
-
22420250455 Oil SealOil Seal
-
23420631910 Oil SealOil Seal
-
24420230150 Oil SealOil Seal
-
25420641733 Plug Screw M10 X 1Plug Screw M10 X 1
-
26420201050 CoverCover
-
27420831160 O-RingO-Ring
-
28420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
29420440602 Hex. Flanged Screw M6 X 65Hex. Flanged Screw M6 X 65
-
30420441521 Torx Screw M10 X 65Torx Screw M10 X 65
-
31420640136 Torx Screw M10 X 175Torx Screw M10 X 175
-
32420686479 Gearbox Ass'yGearbox Ass'y
