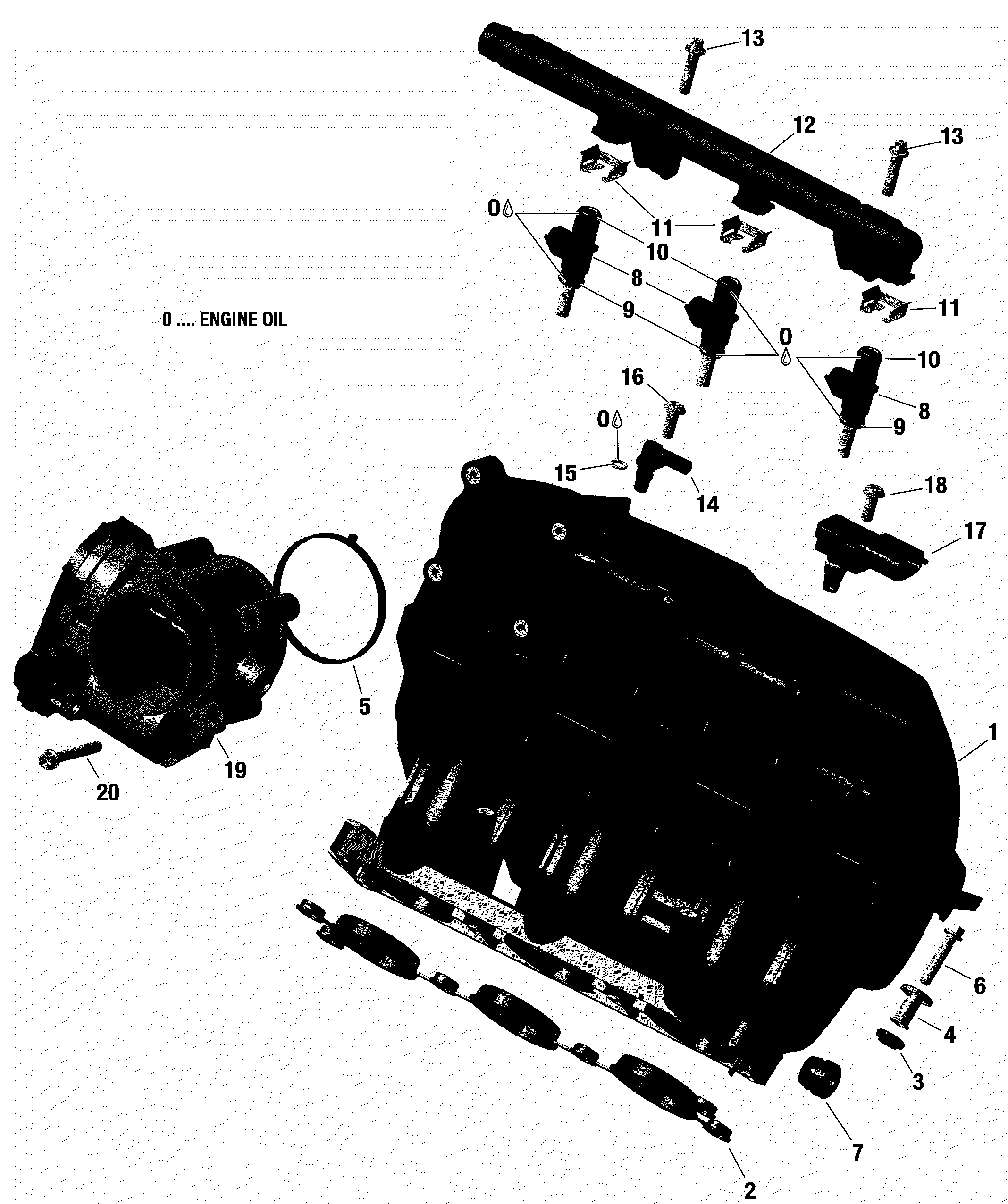

02- Air Intake Manifold для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
1>4420667687 Airbox Ass'yAirbox Ass'y
-
2420431667 GasketGasket
-
3>4420629175 Distance SleeveDistance Sleeve
-
5420431901 GasketGasket
-
6420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
7420201170 IsolatorIsolator
-
8>10420274217 Injection ValveInjection Valve
-
9420431890 O-RingO-Ring
-
10420631220 O-RingO-Ring
-
11420853030 ClipClip
-
12420274230 Fuel RailFuel Rail
-
13420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
14420201191 FittingFitting
-
15420230530 O-RingO-Ring
-
16420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
17707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
18420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
19420892596 Throttle BodyThrottle Body
-
20420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
