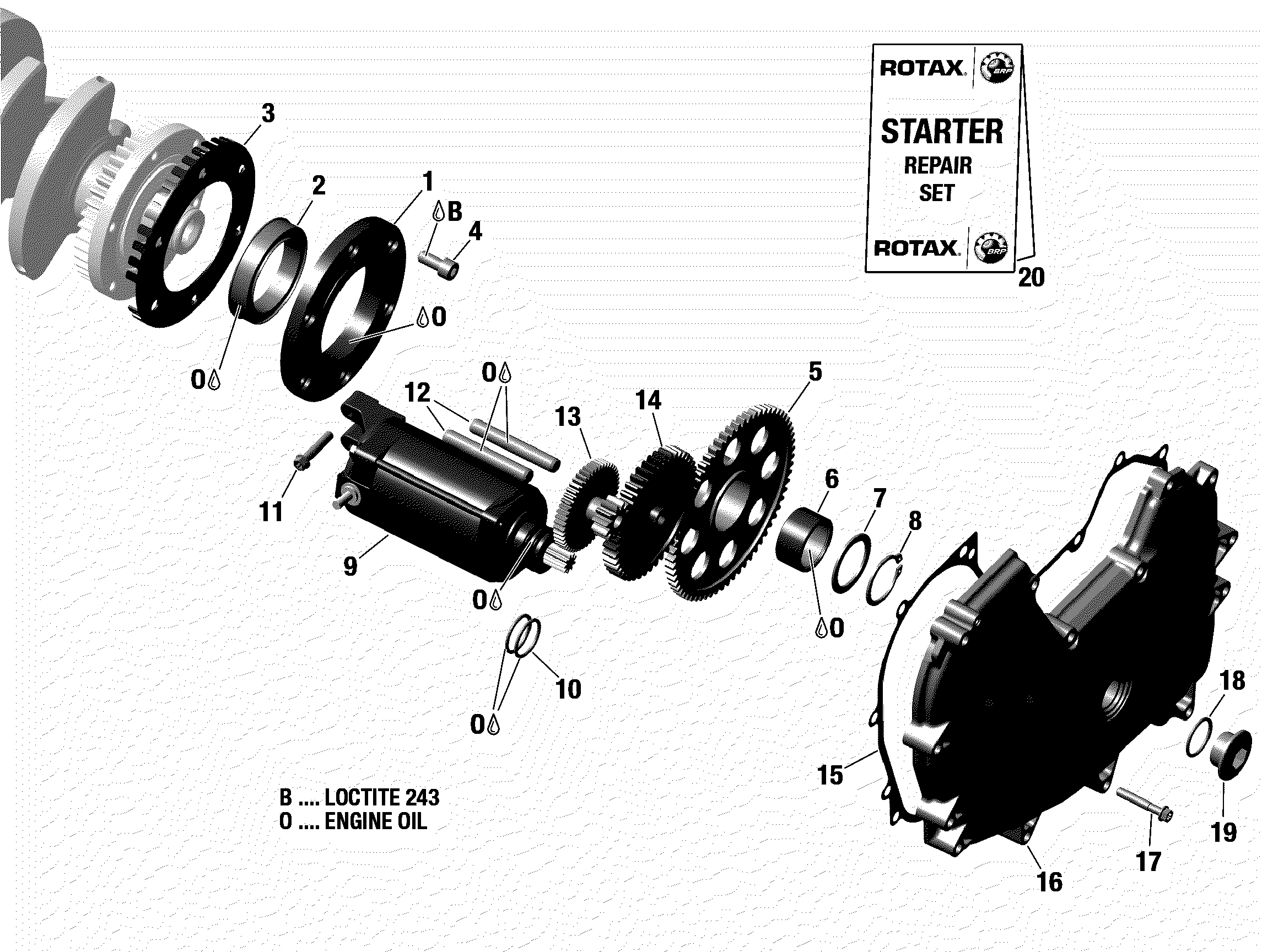

03- Electric Starter для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
1420458012 Sprag Clutch HousingSprag Clutch Housing
-
2420659119 Sprag ClutchSprag Clutch
-
3420266773 Trigger WheelTrigger Wheel
-
4420641509 Socket Head Screw M8 X1 8Socket Head Screw M8 X1 8
-
5>6420435336 Gear 66TGear 66T
-
7420427111 Thrust WasherThrust Washer
-
8420945720 Anneau De RetenueAnneau De Retenue
-
9>10420893830 Starter Ass'yStarter Ass'y
-
10420250145 O-RingO-Ring
-
11420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
12420229472 Pin CylindricalPin Cylindrical
-
13420435382 Double GearDouble Gear
-
14420435391 Gear 44TGear 44T
-
15420450010 GasketGasket
-
16420210296 Valve Train CoverValve Train Cover
-
17420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
18420430783 O-RingO-Ring
-
19420241635 Plug Screw M24 X 1.5Plug Screw M24 X 1.5
-
20420881145 Carbon Brush SetCarbon Brush Set
