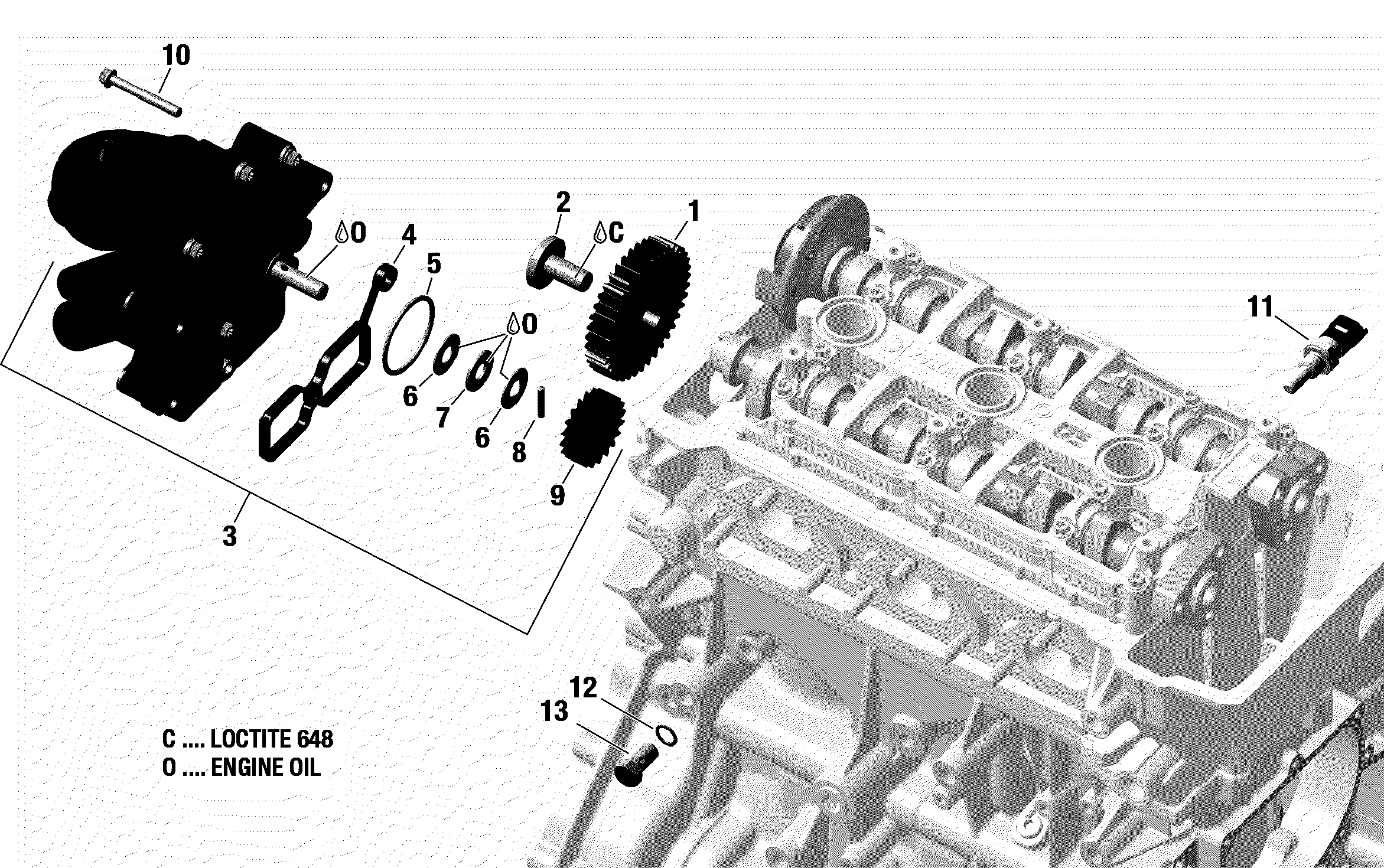

01- Engine Cooling для BRP 002 - F3 S SM6 - 2019
-
№АртикулНазвание
-
1420435370 Drive Gear 39 TeethDrive Gear 39 Teeth
-
2420441365 Flat Head Screw M12 X 1.5Flat Head Screw M12 X 1.5
-
3>9420686012 Water PumpWater Pump
-
4420431970 GasketGasket
-
5420450220 O-RingO-Ring
-
6420626790 Thrust WasherThrust Washer
-
7420632305 Needle BearingNeedle Bearing
-
8420232425 Needle PinNeedle Pin
-
9420435300 Water Pump GearWater Pump Gear
-
10420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
11278002895 Temperature SensorTemperature Sensor
-
12420230150 Oil SealOil Seal
-
13420940874 Banjo Bolt M10 X 19Banjo Bolt M10 X 19
