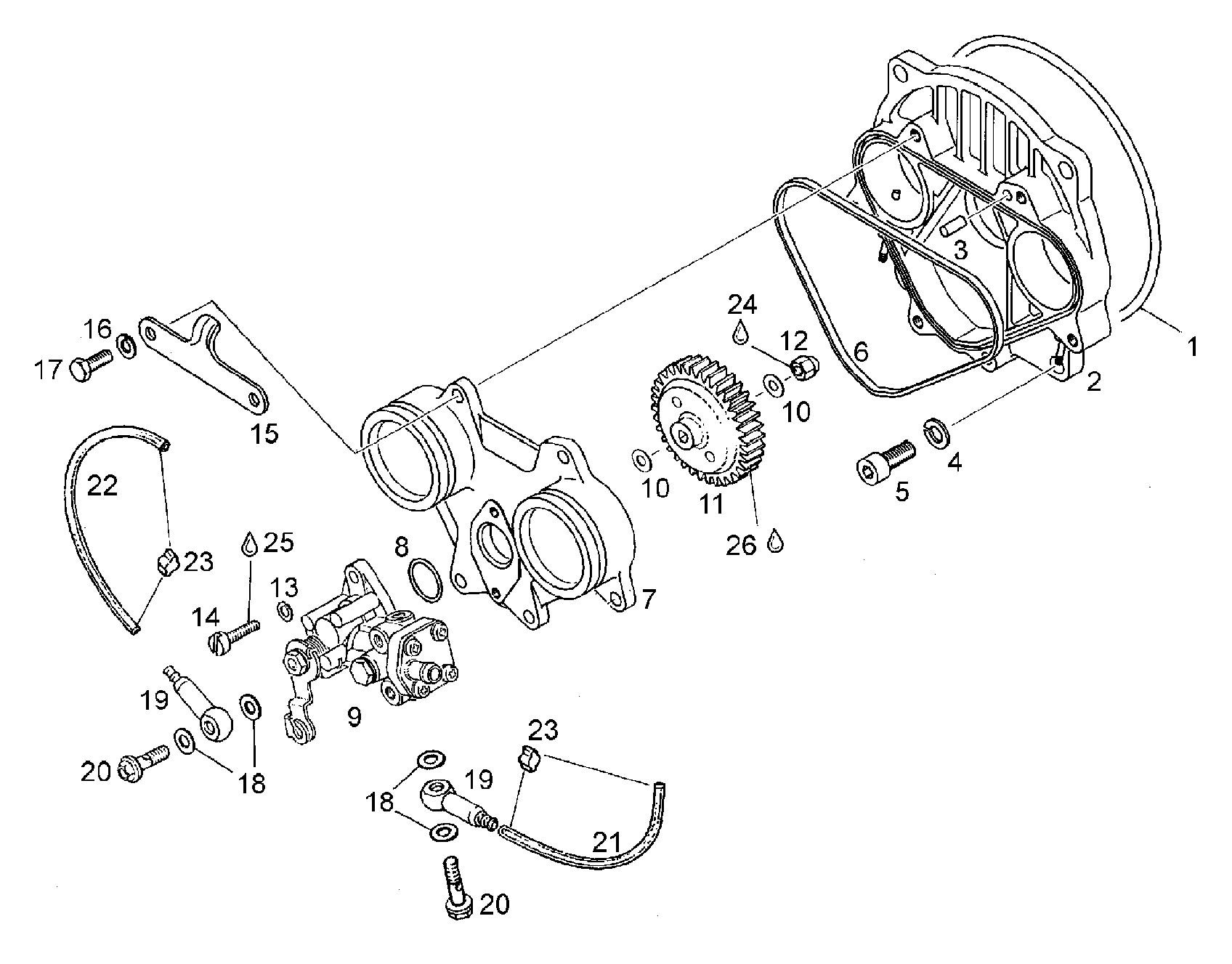

01- Oil Pump для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
1420831360 O-ringO-ring
-
2420810486 Rotary valve cover as. Includes items 2 thru 3Rotary valve cover as. Includes items 2 thru 3
-
3420929650 Drive pinDrive pin
-
4420945752 Lock washerLock washer
-
5420240071 Allen screw M8x20Allen screw M8x20
-
6420831707 Rubber ringRubber ring
-
7420810490 Pump mounting flanPump mounting flan
-
8420230370 O-ringO-ring
-
9420887931 Oil pump assyOil pump assy
-
10420927945 WasherWasher
-
11420935945 Oil pump gear 41 teeOil pump gear 41 tee
-
12420842040 Nut elastic M6Nut elastic M6
-
13420945750 Lock washerLock washer
-
14420240761 Screw M5x16Screw M5x16
-
15420851340 Intake-silencer plateIntake-silencer plate
-
16420945751 Lock washerLock washer
-
17420940561 Hex.screw M6x20Hex.screw M6x20
-
18420227500 Oil banjo gasketOil banjo gasket
-
19420956010 Adapter assyAdapter assy
-
20420241830 Banjo bolt M6x16Banjo bolt M6x16
-
21420860232 Oil line (MAG side)Oil line (MAG side)
-
22420960041 Oil line (PTO side)Oil line (PTO side)
-
23420853840 ClampClamp
-
24420899785 Loctite 221 violetLoctite 221 violet
-
25420897651 Loctite 243 blueLoctite 243 blue
