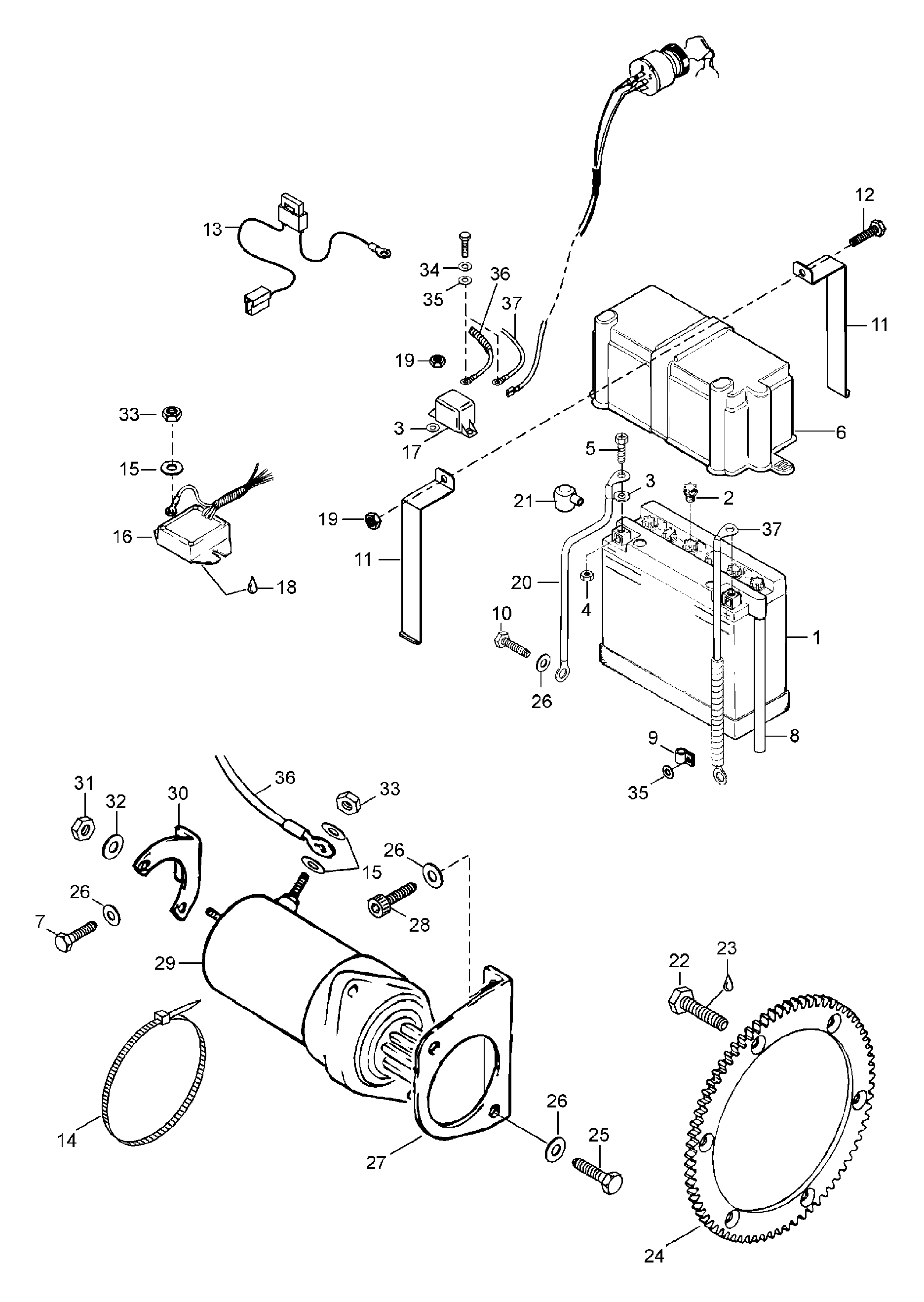

10- Battery для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
1410301100 Battery. Includes items 1 thru 5Battery. Includes items 1 thru 5
-
2410300800 CapCap
-
3391302100 WasherWasher
-
433002 Nut M6Nut M6
-
5222061665 Screw M6x16Screw M6x16
-
6570022000 Battery coverBattery cover
-
740035 Screw M8x16Screw M8x16
-
839055 HoseHose
-
927025 Cable FastenerCable Fastener
-
1040066 Allen screw M8x16Allen screw M8x16
-
115442811 Battery BracketBattery Bracket
-
1240031 Screw M6x25Screw M6x25
-
135443516 Chargening cableChargening cable
-
1427026 Tie RapTie Rap
-
1520009 WasherWasher
-
16549264 Rectifier ass’yRectifier ass’y
-
17420992817 Starter relayStarter relay
-
18413706400 Litium-greaseLitium-grease
-
1933200 Nut M6Nut M6
-
205443514 Ground wireGround wire
-
21570151000 Cap protectionCap protection
-
22236281684 Screw M8x16Screw M8x16
-
23413707400 Loctite 271, 10ccLoctite 271, 10cc
-
24415043100 Ring-gearRing-gear
-
2540036 Screw M8x20Screw M8x20
-
2620014 Lock washerLock washer
-
27539431 Starter bracketStarter bracket
-
2840305 Allen screw M8x20Allen screw M8x20
-
29420995430 Starter assyStarter assy
-
30539432 Starter bracket (MAG)Starter bracket (MAG)
-
3133009 Nut elastic M5Nut elastic M5
-
3220002 WasherWasher
-
3333010 Nut elastic M6Nut elastic M6
-
3420013 Lock washerLock washer
-
3520008 WasherWasher
-
365440815 Battery wire + tubingBattery wire + tubing
-
37
