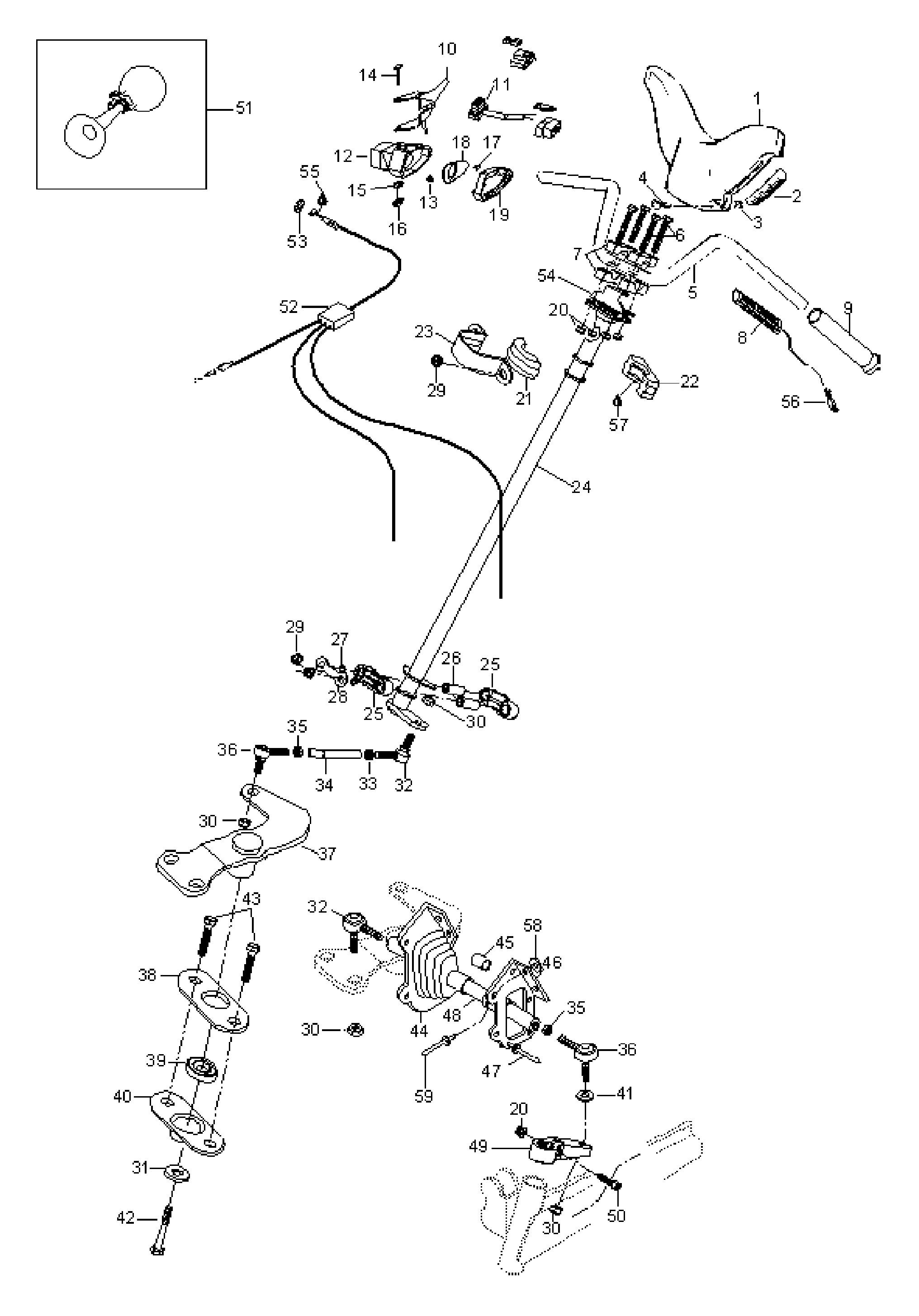

07- Steering для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
1572023800 PadPad
-
2572023900 KeyKey
-
333062 Nut M5Nut M5
-
440156 Screw M5x20Screw M5x20
-
5529751 Steering handle barSteering handle bar
-
640286 Allen screw M8x45Allen screw M8x45
-
7548448 FasteningFastening
-
8544345 Heating grip kitHeating grip kit
-
95340464 HandleHandle
-
105442276 Heated handleHeated handle
-
11414612700 Kill switchKill switch
-
12572086700 Throttle handle hous.Throttle handle hous.
-
13414440800 Screw M8x10Screw M8x10
-
14414438700 PinPin
-
15414438900 WasherWasher
-
16414439000 CirclipCirclip
-
17414473200 ScrewScrew
-
18572099400 PlatePlate
-
19572044600 Throttle adaptorThrottle adaptor
-
2033011 Nut elastic M8Nut elastic M8
-
21572064500 Bearing halfBearing half
-
22572064400 Bearing halfBearing half
-
235343381 Retaining supportRetaining support
-
245244925 Steering paleSteering pale
-
25506150400 Half-housingHalf-housing
-
26506150500 Bushing-housingBushing-housing
-
2720004 WasherWasher
-
28506150600 Plate stopperPlate stopper
-
2933201 Nut elastic M8Nut elastic M8
-
3033023 Nut elastic M10Nut elastic M10
-
315446279 WasherWasher
-
32414768100 Ball joint, leftBall joint, left
-
3333017 Nut M10 L.H.Nut M10 L.H.
-
345445590 Tie rod, shortTie rod, short
-
3533019 Nut M10 R.H.Nut M10 R.H.
-
36414768000 Ball joint, rightBall joint, right
-
375344929 Lever WeldLever Weld
-
385345380 PlatePlate
-
3931032 BearingBearing
-
405345339 Bearing SupportBearing Support
-
4131014 WasherWasher
-
4240337 Screw M8x16Screw M8x16
-
4340336 Screw M8x20Screw M8x20
-
44570024800 R.H. Cap rod tieR.H. Cap rod tie
-
44570024900 R.H. Cap rod tieR.H. Cap rod tie
-
45572036500 BushingBushing
-
46517241200 R.H. Plate-capR.H. Plate-cap
-
46517241300 L.H. Plate-capL.H. Plate-cap
-
47390402200 RivetRivet
-
485445591 Tie rodTie rod
-
495345119 Steering ArmSteering Arm
-
5040828 Allen screw M8x35Allen screw M8x35
-
5121003 HornHorn
-
525244975 Throttle cableThrottle cable
-
5331038 CirclipCirclip
-
545444196 SupportSupport
-
55413701700 Dielectric greaseDielectric grease
-
5642039 Male terminalMale terminal
-
57413711500 Synthetic greaseSynthetic grease
-
58517124300 WasherWasher
-
59390906800 RivetRivet
