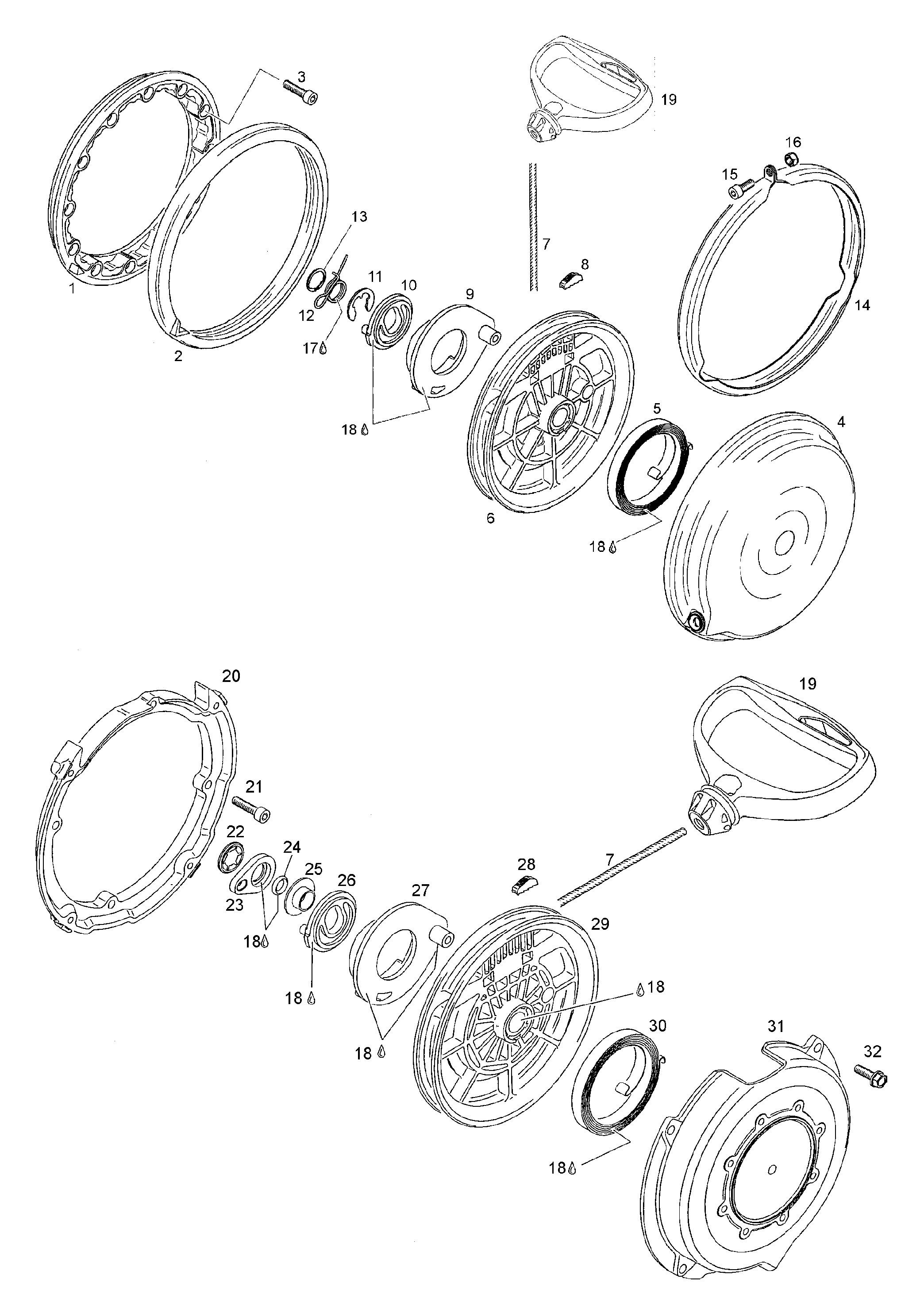

04- Rewind Starter для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
1420887441 Rewind starter kit. Includes items 1 thru 17Rewind starter kit. Includes items 1 thru 17
-
1420810860 Connecting flangedConnecting flanged
-
2420860950 Damper ringDamper ring
-
3420840861 Allen screw M6x25Allen screw M6x25
-
4420887442 Rewind starter assy. Includes items 4 thru 13Rewind starter assy. Includes items 4 thru 13
-
4420810875 Starter housingStarter housing
-
5420939115 Rewind spring assyRewind spring assy
-
6420852284 Rope sheaveRope sheave
-
7420852491 Starter rope 2,2mStarter rope 2,2m
-
7412500100 Starting rope 30mStarting rope 30m
-
8420852070 Key clampKey clamp
-
9420852296 PawlPawl
-
10420852301 Pawl lockPawl lock
-
11420845300 CirclipCirclip
-
12420938986 Locking springLocking spring
-
13420945770 Locking ringLocking ring
-
14420851330 ClampClamp
-
15420241236 Screw M6x16Screw M6x16
-
16420842040 Nut elastic M6Nut elastic M6
-
17420297433 Molykote G-NMolykote G-N
-
18420897061 Silicon compoundSilicon compound
-
19572084400 Starter gripStarter grip
