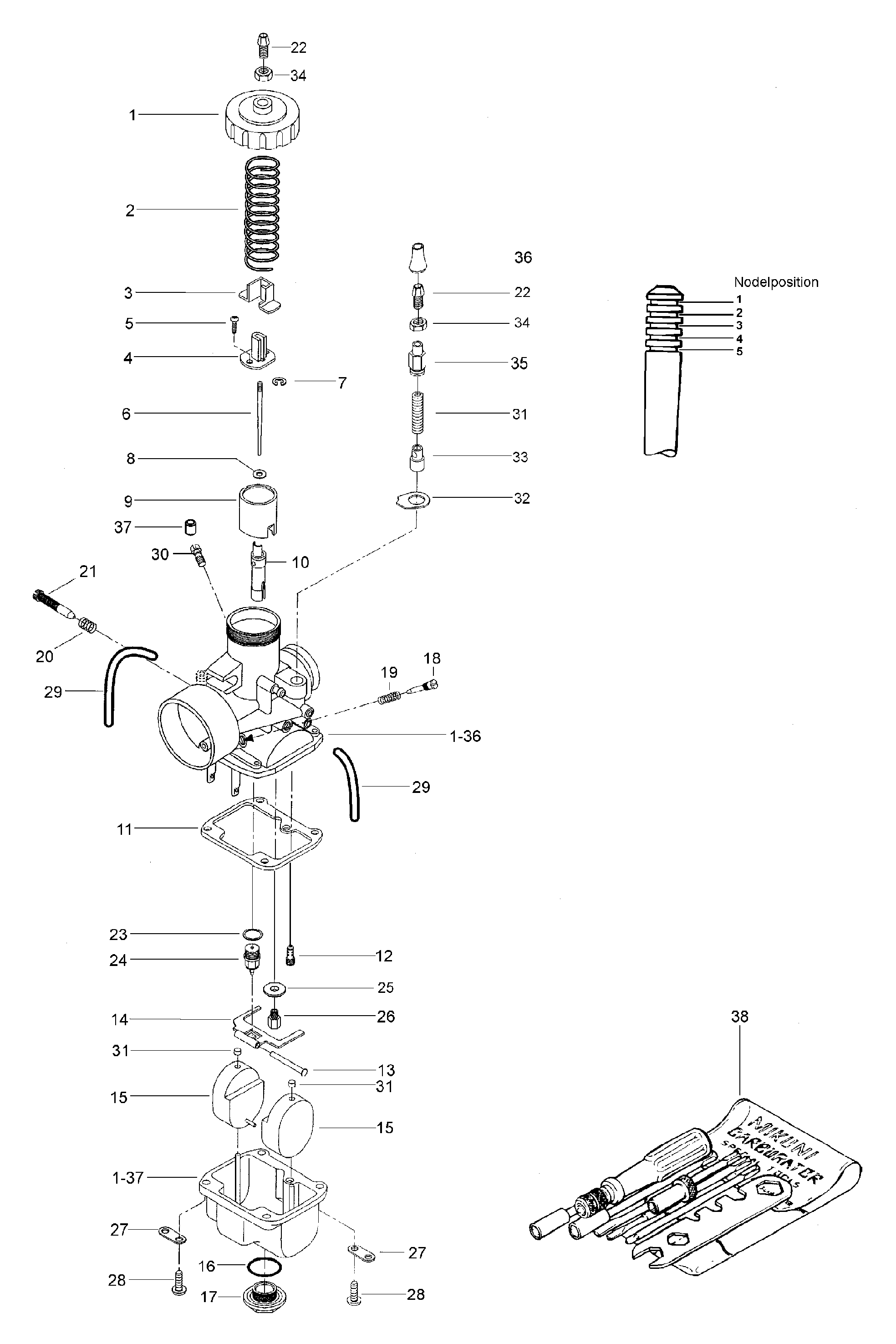

02- Carburetor для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
1404103700 CoverCover
-
2404154800 Throttle valve springThrottle valve spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with washerScrew with washer
-
6404161876 Jet needle J8-6DGHJet needle J8-6DGH
-
7404152400 E-ringE-ring
-
8404117000 O-ringO-ring
-
9404128400 Slide 2.5Slide 2.5
-
10404100700 Needle jet 159 P-2Needle jet 159 P-2
-
11404104200 Gasket panGasket pan
-
12404109100 Pilot jet PJ 40Pilot jet PJ 40
-
13404103300 Float arm pinFloat arm pin
-
14404107600 Float armFloat arm
-
15404107100 FloatFloat
-
16404107300 O-ringO-ring
-
17404107400 Plug screwPlug screw
-
18404149000 Air screwAir screw
-
19404139800 SpringSpring
-
20404101700 SpringSpring
-
21404125200 Throttle stop screwThrottle stop screw
-
23404101600 Washer-seatWasher-seat
-
24404103200 Needle valve 1.5Needle valve 1.5
-
26404111200 Main jet 220Main jet 220
-
27404103000 Tube retainer plateTube retainer plate
-
28404102000 Screw + lock washerScrew + lock washer
-
29404161802 Air vent tubeAir vent tube
-
30404153400 NippleNipple
-
31404127400 SpringSpring
-
32404158300 PlatePlate
-
33404161000 Plunger assyPlunger assy
-
35404161100 Holder guideHolder guide
-
3719057 CapCap
-
38404112000 Tool kitTool kit
