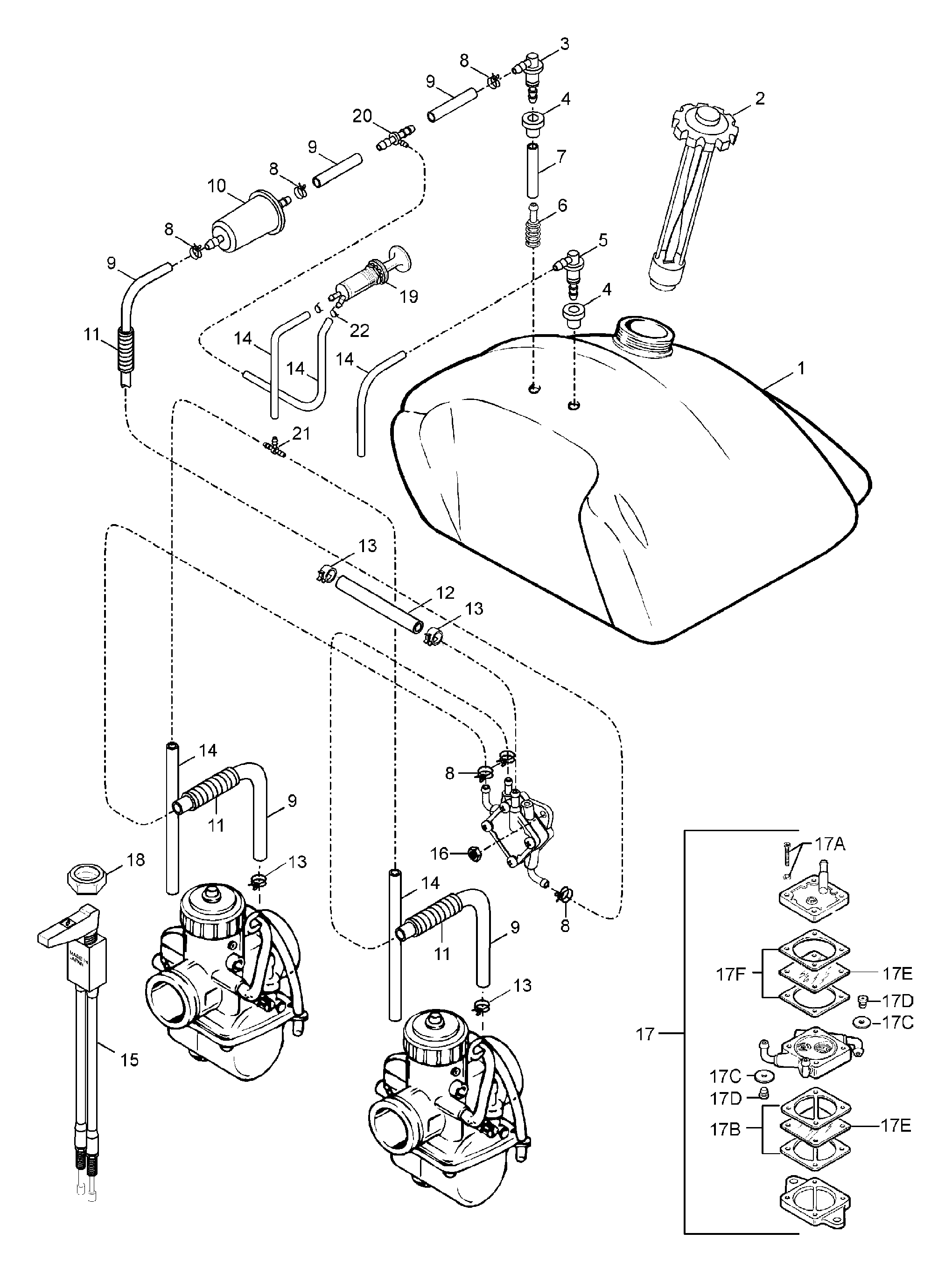

02- Fuel Tank для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
1519393 Fuel tank 42 lFuel tank 42 l
-
2572161200 CapCap
-
35341709 Connector-maleConnector-male
-
428037 GrommetGrommet
-
5533535 Connector-maleConnector-male
-
6414872100 Fuel FilterFuel Filter
-
739048 hose 12.5/7.5hose 12.5/7.5
-
827086 ClampClamp
-
939004 Fuel hose 8/5Fuel hose 8/5
-
10513032982 Fuel filterFuel filter
-
1128012 Spiral tubeSpiral tube
-
1239001 Fuel hose 11/6Fuel hose 11/6
-
13414420700 ClampClamp
-
1439035 Airpipe 5/3Airpipe 5/3
-
15535482 ChokeChoke
-
1633010 Nut elastic M6Nut elastic M6
-
17c404902100 GrommetGrommet
-
17d404900300 ValveValve
-
17E404902200 DiaphragmDiaphragm
-
17F404902400 GasketGasket
-
17b404902300 GasketGasket
-
1719057 Fuel pumpFuel pump
-
17a404131600 ScrewScrew
-
18414977200 Plastic nutPlastic nut
