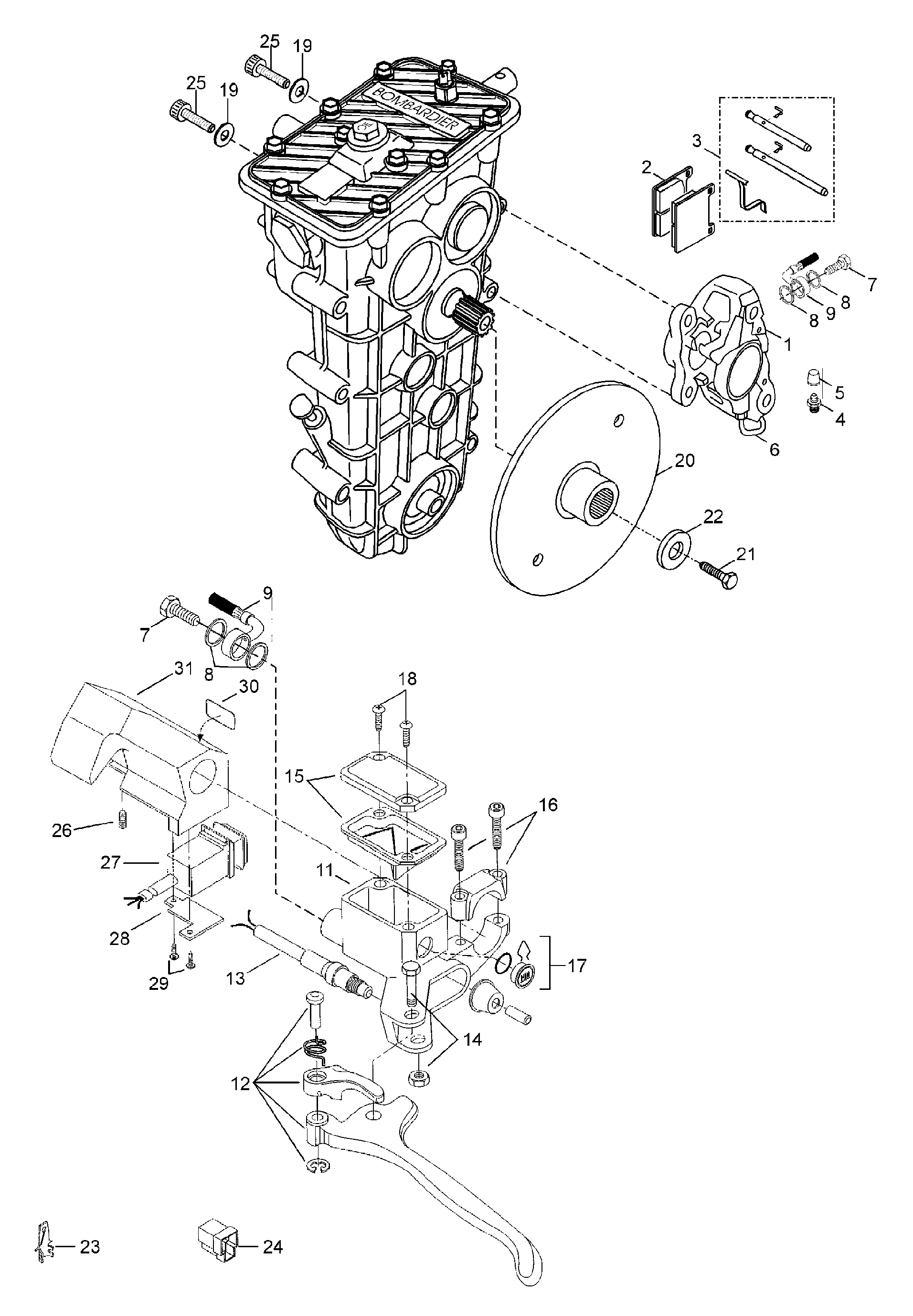

06- Brake Assy для BRP Lynx 5900 ST - 2000
-
№АртикулНазвание
-
124041 Caliber. Includes items 1 thru 6Caliber. Includes items 1 thru 6
-
2414990000 Brake lining kitBrake lining kit
-
3414990700 KitKit
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
7414920500 BoltBolt
-
8414920600 WasherWasher
-
9507032219 Brake lineBrake line
-
11507032277 Master cylinder. Includes items 11 thru 18Master cylinder. Includes items 11 thru 18
-
12415075300 Lever assyLever assy
-
13415117500 Microswitch assyMicroswitch assy
-
14507032280 Pin assyPin assy
-
15415029900 CoverCover
-
16415029800 Clamp assyClamp assy
-
17414990600 WindowWindow
-
18415078900 ScrewScrew
-
1920068 WasherWasher
-
205344710 Brake disk assyBrake disk assy
-
2140336 Screw M8x20Screw M8x20
-
22546336 WasherWasher
-
2342031 TabTab
-
2442036 Housing tabHousing tab
-
2540277 Allen screw M10x65Allen screw M10x65
-
26414440800 Set screwSet screw
-
27515175293 Light switchLight switch
-
28517283800 Housing-plateHousing-plate
-
29414473200 Self tabbing screwSelf tabbing screw
-
30415025500 Dimmer switch decalDimmer switch decal
-
31572079500 Housing-dimmerHousing-dimmer
