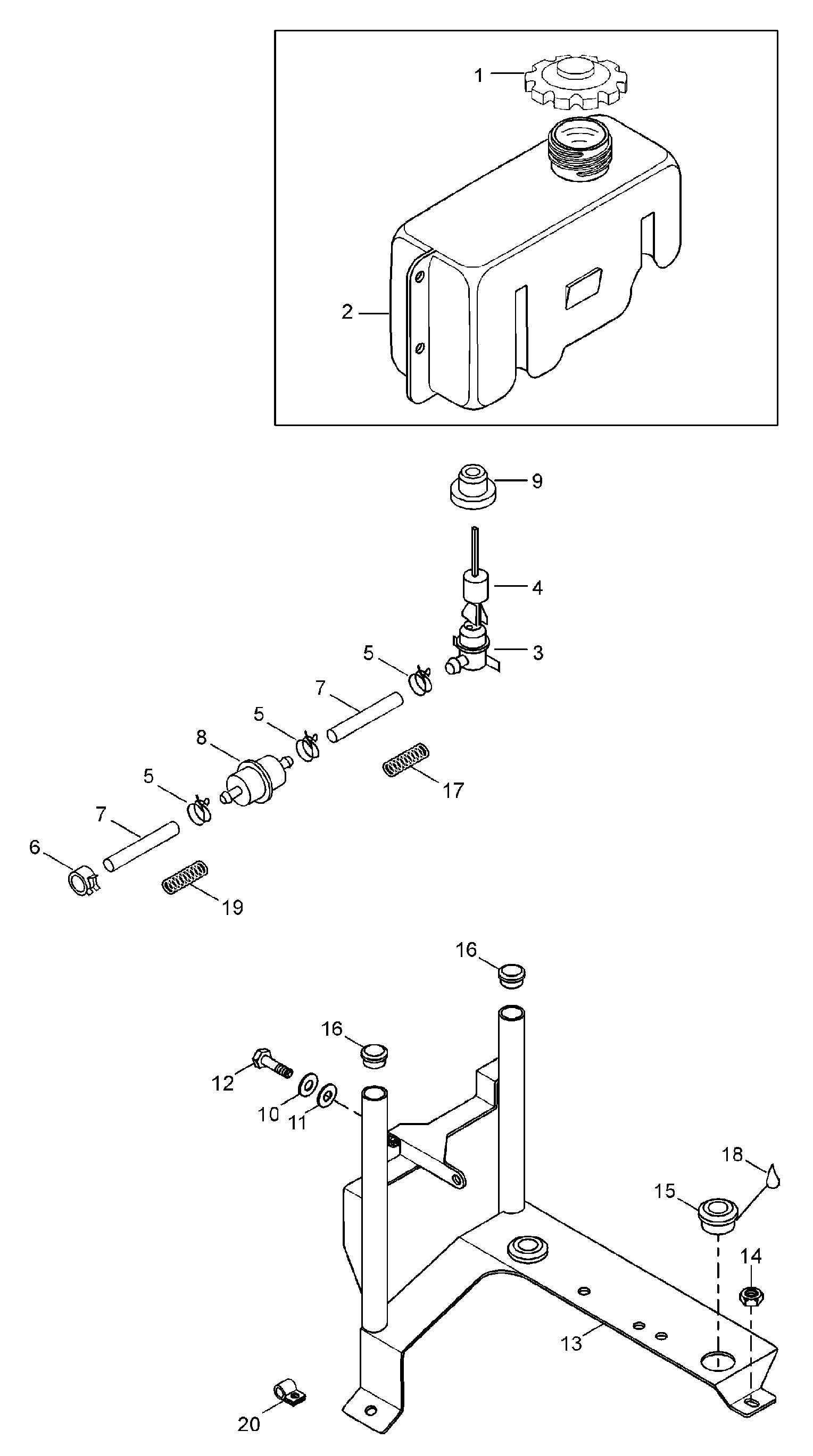

01- Oil Tank для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
1572071000 CapCap
-
25142700 Oil tankOil tank
-
3414681800 Oil level sensorOil level sensor
-
4414681900 Float for sensorFloat for sensor
-
527119F Spring clipSpring clip
-
6414420700 Spring clipSpring clip
-
739046 Oil line 11/8Oil line 11/8
-
8414536500 Oil filterOil filter
-
9570023000 GrommetGrommet
-
1020052 Lock washerLock washer
-
1120009 WasherWasher
-
1240029 Screw M6x16Screw M6x16
-
135342647 SupportSupport
-
1433200 Nut M6Nut M6
-
1528022 GrommetGrommet
-
1628136 PlugPlug
-
1728015 TubeTube
-
19250002 SpringSpring
-
2027092 ClampClamp
