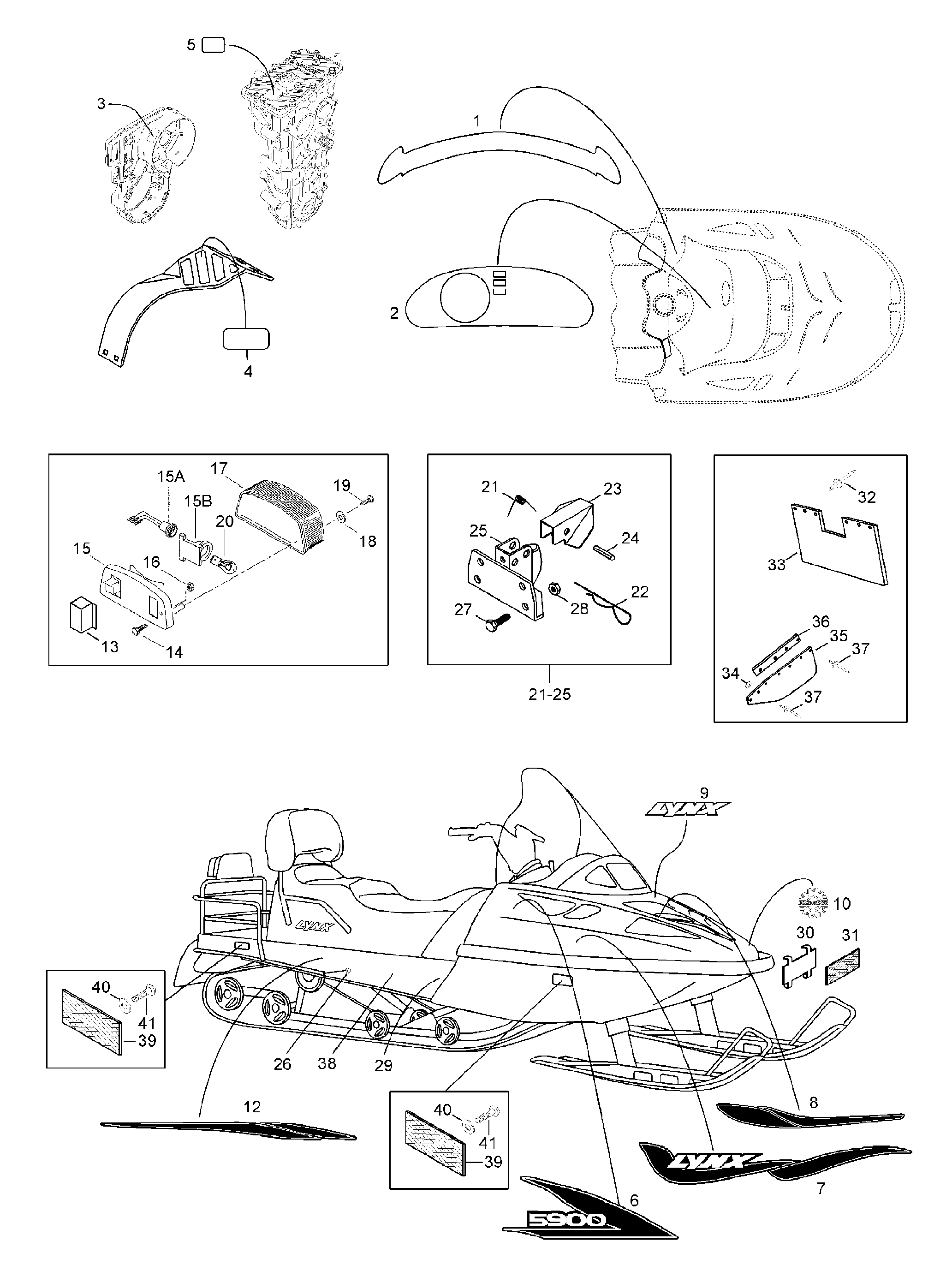

09- Equipment для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
5145729 Decal assy hood cont. decals: 6, 7, 8, 9Decal assy hood cont. decals: 6, 7, 8, 9
-
5145730 Chassis decal kit contains decals: 12Chassis decal kit contains decals: 12
-
15343811 Instruction decalInstruction decal
-
25343810 Dash decalDash decal
-
3544073 Fanbelt decalFanbelt decal
-
4546820 Warning decalWarning decal
-
5544068 Oil cheking decalOil cheking decal
-
65345821 Decal, upper hood R.Decal, upper hood R.
-
65345822 Decal, upper hood L.HDecal, upper hood L.H
-
75345822 Hood decal lower R.H.Hood decal lower R.H.
-
75345823 Hood decal lower L.H.Hood decal lower L.H.
-
85345818 Hood decal upper R.HHood decal upper R.H
-
85345819 Hood decal upper L.H.Hood decal upper L.H.
-
95345824 Middle decal hoodMiddle decal hood
-
10516000282 Decal BombardierDecal Bombardier
-
125345831 Decal chassis R.H.Decal chassis R.H.
-
125345832 vansterDecal chassis L.H.vansterDecal chassis L.H.
-
135345713 AdapterAdapter
-
1440032 Screw M6x30Screw M6x30
-
155341214 Rear lamp assy. Includes items 15 thru 20Rear lamp assy. Includes items 15 thru 20
-
15414979400 Tail lamp housingTail lamp housing
-
15a414979410 SocketSocket
-
15b414979411 Rubber DamperRubber Damper
-
1633200 Nut M6Nut M6
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
20410504000 Bulb tail lampBulb tail lamp
-
21545693 SpringSpring
-
215344156 Hitch Assy. Includes items 21 thru 25Hitch Assy. Includes items 21 thru 25
-
2241029 PinPin
-
235440767 LatchLatch
-
2441012 CotterCotter
-
255344208 Bracket weldedBracket welded
-
2628136 PluggPlugg
-
2740336 Screw M8x20Screw M8x20
-
2833011 Nut elastic M8Nut elastic M8
-
295445636 CE-decalCE-decal
-
305440839 SupportSupport
-
3121060 Front reflector whiteFront reflector white
-
3236036 RivetRivet
-
33535437 Snow guardSnow guard
-
3420008 WasherWasher
-
355142828 Lateral snow guardLateral snow guard
-
365340532 Side supportSide support
-
3736005 RivetRivet
-
385144861 ChassisChassis
-
39414510200 Yellow reflectorYellow reflector
-
4020018 WasherWasher
-
4140070 Screw M5x10Screw M5x10
