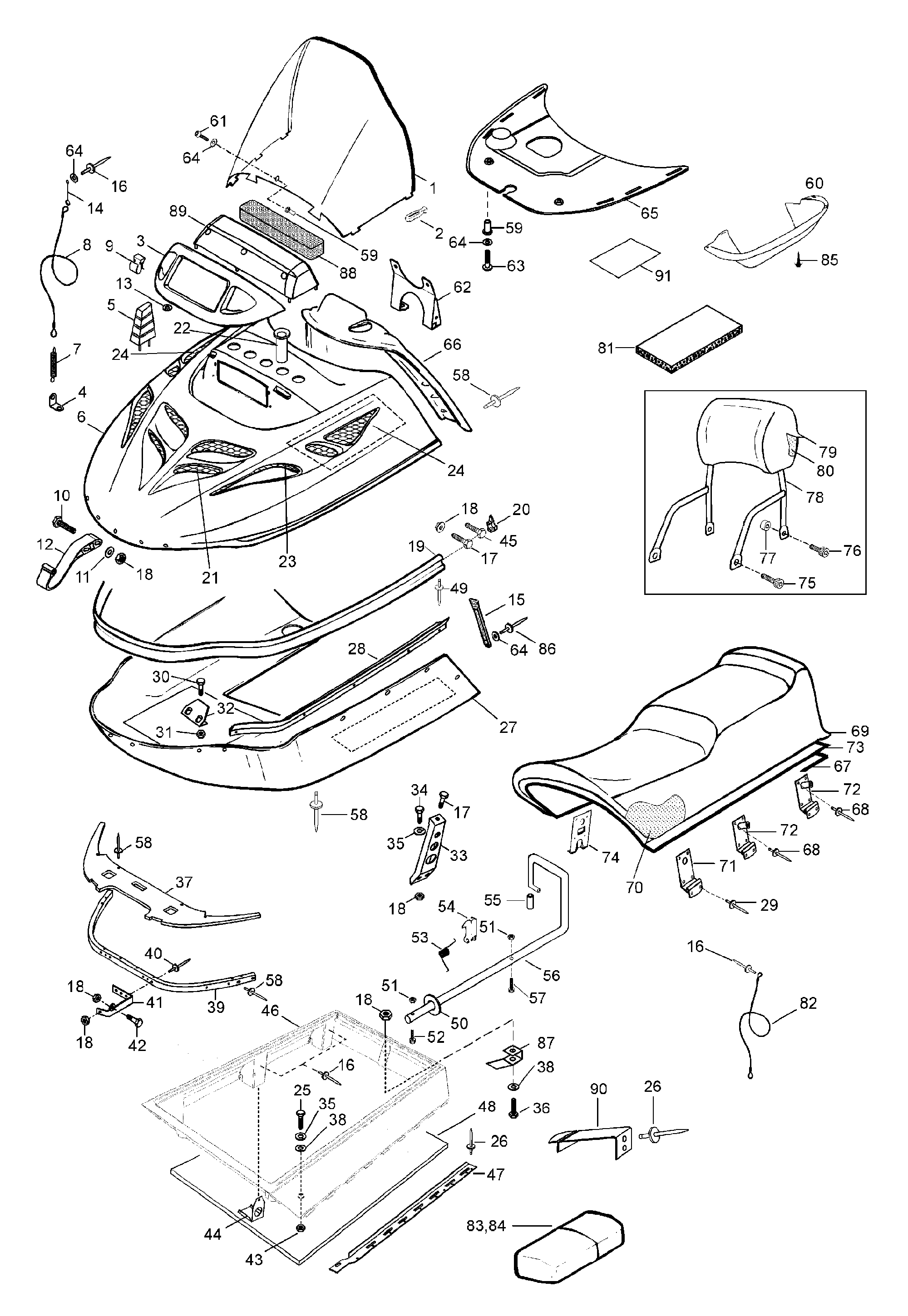

09- Hood для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
15245105 WindshieldWindshield
-
2570023800 RubberRubber
-
3572079200 Headlamp CoverHeadlamp Cover
-
45443123 Spring plateSpring plate
-
55443136 Wind screen supportWind screen support
-
65144991 RIM-hood pre assyRIM-hood pre assy
-
75442675 SpringSpring
-
85342674 Cap retainer cableCap retainer cable
-
9414227300 SlipSlip
-
1040193 Screw M6x50Screw M6x50
-
1120009 WasherWasher
-
125343075 HingeHinge
-
1336084 Locking plateLocking plate
-
145442870 Cable keeperCable keeper
-
155342952 Fastening rubberFastening rubber
-
1636005 RivetRivet
-
1740078 Screw M6x22Screw M6x22
-
1833200 Nut M6Nut M6
-
195242798 BumperBumper
-
20549096L Plug L.H.Plug L.H.
-
20549096R Plug R.H.Plug R.H.
-
215142669 Middle grillMiddle grill
-
225444445 PipePipe
-
235242672 R.H. lower grillR.H. lower grill
-
235342673 L.H. lower grillL.H. lower grill
-
245242671 R.H. upper grillR.H. upper grill
-
245242670 L.H. upper grillL.H. upper grill
-
2540052 Allen screw M6x20Allen screw M6x20
-
2636083 RivetRivet
-
275144049 Pan bottomPan bottom
-
285242803 Guide side L.H.Guide side L.H.
-
285242804 Guide side R.H.Guide side R.H.
-
2936489 RivetRivet
-
3040247 Screw M5x16Screw M5x16
-
3133062 Nut M5Nut M5
-
325443217 Guide shortGuide short
-
335342509 Support for bumperSupport for bumper
-
3440332 Allen screw M6x16Allen screw M6x16
-
3520052 Lock washerLock washer
-
3640149 Screw M6x30Screw M6x30
-
375142623 Protector for hingeProtector for hinge
-
3820009 WasherWasher
-
395142799 Front supportFront support
-
4036489 RivetRivet
-
415342234 Hinge, R.H.Hinge, R.H.
-
415342345 Hinge, L.H.Hinge, L.H.
-
4240084 Screw M6x45Screw M6x45
-
4333066 Nut M6Nut M6
-
445443661 SupportSupport
-
4540031 Screw M6x25Screw M6x25
-
465142066 Seat boxSeat box
-
475144029 Clip plate R.H.Clip plate R.H.
-
475144028 Clip plate L.H.Clip plate L.H.
-
485344621 FoamFoam
-
4936003 RivetRivet
-
5020004 WasherWasher
-
5133008 Nut elastic M4Nut elastic M4
-
5240144 Allen screw M4x16Allen screw M4x16
-
535444439 SpringSpring
-
545443664 Locking tonqueLocking tonque
-
5528019 PluggPlugg
-
565344987 Pin-PivotPin-Pivot
-
5740146 Allen screw M4x20Allen screw M4x20
-
5836036 RivetRivet
-
5928050 Well-NutWell-Nut
-
605144412 Cooling channelCooling channel
-
6140358 Allen screw M5x30Allen screw M5x30
-
625343120 SupportSupport
-
6340808 Screw M5x30Screw M5x30
-
6420008 WasherWasher
-
655142622 Tween-DeckTween-Deck
-
665344648 Rear hood w/o tapesRear hood w/o tapes
-
675440059 Sealing strip profilSealing strip profil
-
6836043 RivetRivet
-
695244983 Seat coverSeat cover
-
705244982 Seat FoamSeat Foam
-
715440581 Hinge for set ass’yHinge for set ass’y
-
72549874 Hinge plate weld.Hinge plate weld.
-
73519394 Seat baseSeat base
-
74549732 Lock plate weld.Lock plate weld.
-
7540305 Allen screw M8x20Allen screw M8x20
-
7640135 Allen screw M8x30Allen screw M8x30
-
775440665 SleeveSleeve
-
785245664 Backrest-frameBackrest-frame
-
795340917 Backrest coverBackrest cover
-
80539399 Backrest foamBackrest foam
-
81414631900 Foam acousticFoam acoustic
-
82546777 Retainer cableRetainer cable
-
835445401 kompl.Tool box assykompl.Tool box assy
-
84572036310 Tool boxTool box
-
85414644300 Dart-windshieldDart-windshield
-
8636009 RivetRivet
-
875444464 Retainer cable lugRetainer cable lug
-
885343135 FilterFilter
-
895142624 Cover intakeCover intake
-
905344443 Toolkit supportToolkit support
-
915443578 AL-coverAL-cover
