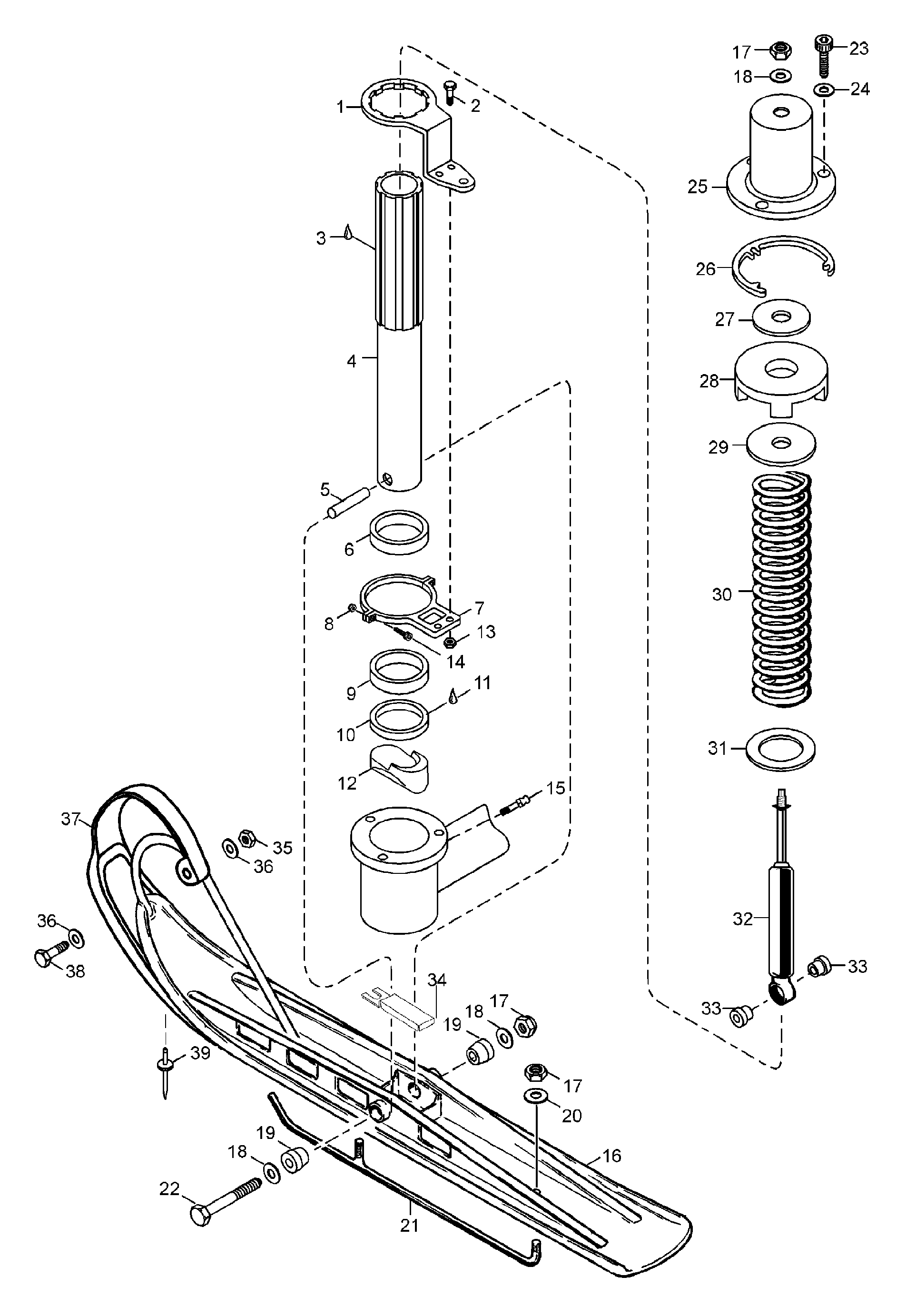

08- Front Suspension для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
15244182 Arm-steeringArm-steering
-
240031 Screw M6x25Screw M6x25
-
3413706100 GreaseGrease
-
45245362 Ski-legSki-leg
-
5549716 SleeveSleeve
-
6414803100 Upper cushionUpper cushion
-
75344180 Support arm assySupport arm assy
-
833008 Nut elastic M4Nut elastic M4
-
9414803200 Lower cushionLower cushion
-
10316373 Oil sealOil seal
-
11420899785 Loctite 221, 10ccLoctite 221, 10cc
-
125341750 StopperStopper
-
1333200 Nut M6Nut M6
-
1440146 Allen screw M4x20Allen screw M4x20
-
1534019 Grease nippleGrease nipple
-
165245338 SkiSki
-
1733012 Nut elastic M10Nut elastic M10
-
1820012 Washer A10.5Washer A10.5
-
19547543 RubberRubber
-
2020005 Washer A10.5Washer A10.5
-
215344021 Carbide ski runnerCarbide ski runner
-
2240354 Screw M10x125Screw M10x125
-
2340305 Allen screw M8x20Allen screw M8x20
-
2420014 Lock washerLock washer
-
255244225 Welded coverWelded cover
-
26503145600 Spacer plateSpacer plate
-
275440399 PlatePlate
-
28570025800 StopperStopper
-
29549492 Holder plateHolder plate
-
305241330 SpringSpring
-
31549493 BearingplateBearingplate
-
3223018 ShockShock
-
33572034500 CushionCushion
-
345445639 Support plateSupport plate
-
3533010 Nut elastic M6Nut elastic M6
-
3620009 WasherWasher
-
375144415 SkilinerSkiliner
-
3840031 Screw M6x25Screw M6x25
-
3936070 RivetRivet
