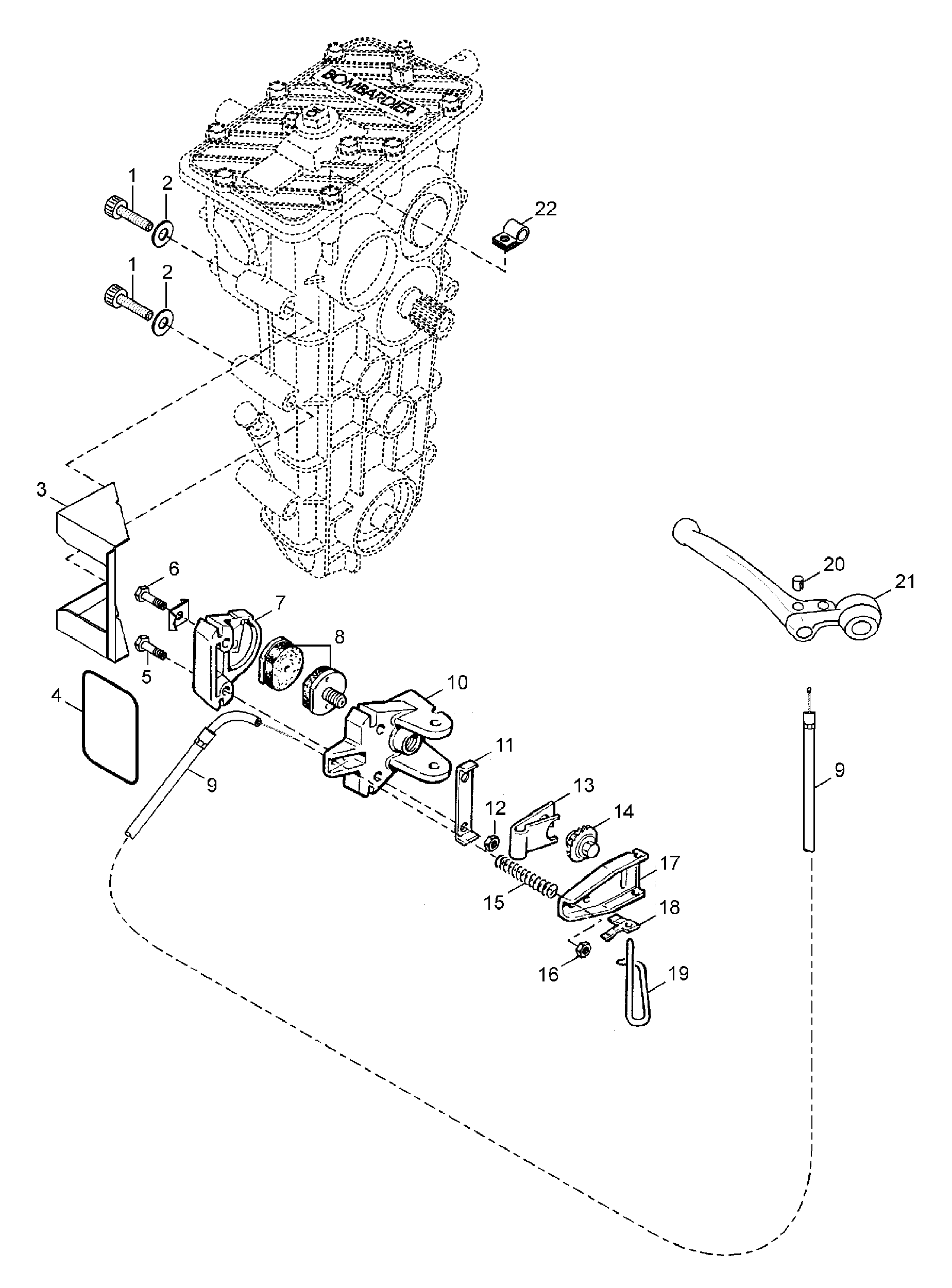

11- Mechanical Brake Kit для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
15443197 Mechanical brake kit. Includes items 1 thru 22Mechanical brake kit. Includes items 1 thru 22
-
140089 Screw M8x75Screw M8x75
-
220014 Lock washerLock washer
-
35341267 Slider weld.Slider weld.
-
4572013500 Gasket ringGasket ring
-
540009 Screw M8x50Screw M8x50
-
6222051465 ScrewScrew
-
7414466800 Caliber-anuilCaliber-anuil
-
8860700100 Kit pad brakeKit pad brake
-
95341281 Brake wireBrake wire
-
10507026600 Brake lining holderBrake lining holder
-
11507020400 Locking tabLocking tab
-
1233011 Nut elastic M8Nut elastic M8
-
13507020200 Release springRelease spring
-
14507019600 Ratchet wheelRatchet wheel
-
15414460600 SpringSpring
-
1633009 Nut elastic M5Nut elastic M5
-
17507021500 Brake leverBrake lever
-
18507009400 Ratchet wheel springRatchet wheel spring
-
19507027500 PinPin
-
2024020 NippleNipple
-
2124003 Brake handleBrake handle
-
2227025 Wire keeperWire keeper
