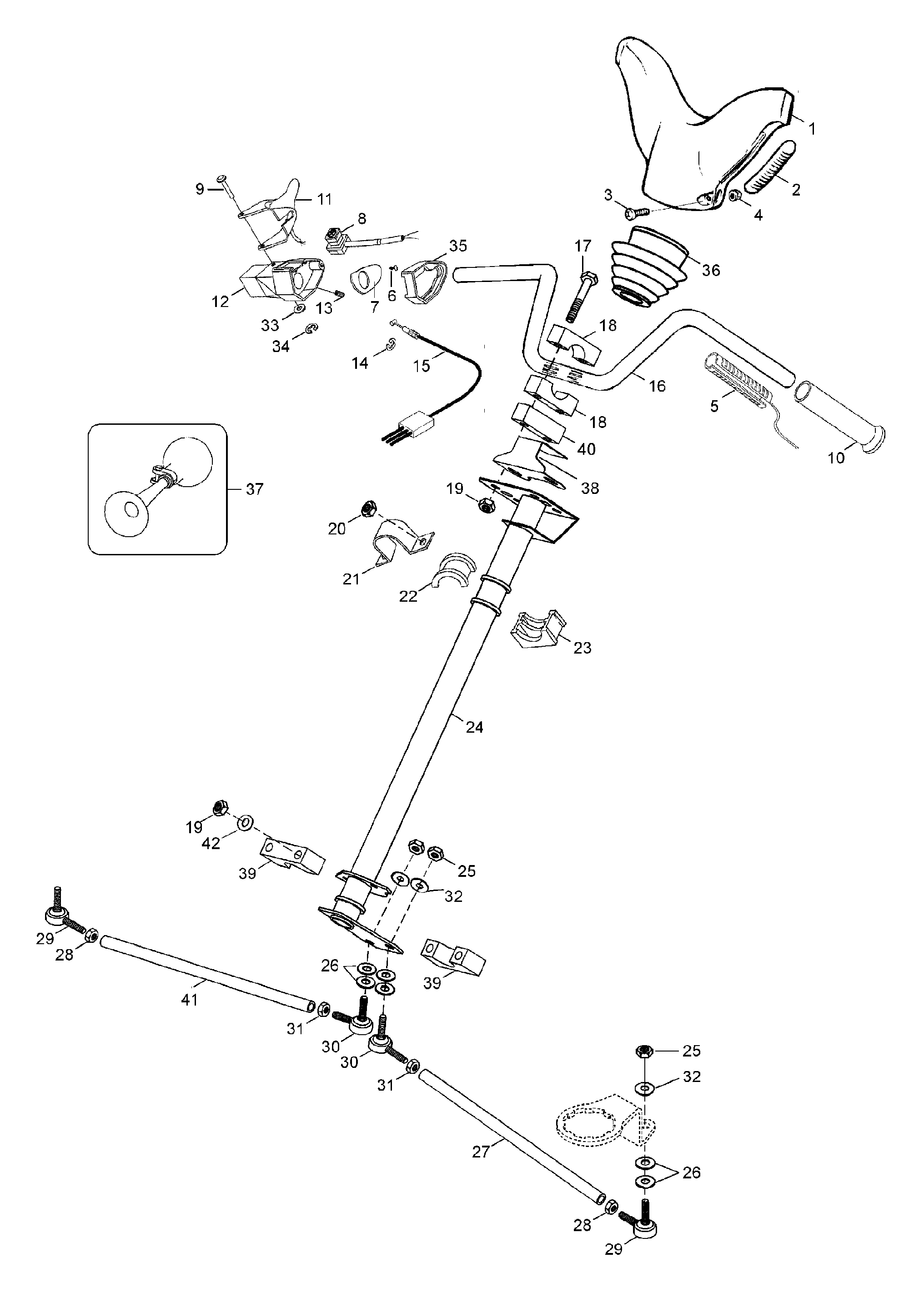

07- Steering для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
1572023800 PadPad
-
2572023900 KeyKey
-
340156 Screw M5x20Screw M5x20
-
433062 Nut M5Nut M5
-
5544345 Heating grip kitHeating grip kit
-
6414473200 ScrewScrew
-
7572099400 WasherWasher
-
8414612700 Kill switchKill switch
-
9414438700 PinPin
-
105340464 HandleHandle
-
115442276 Heated handleHeated handle
-
12572086700 Throttle housingThrottle housing
-
13414440800 Screw M8x10Screw M8x10
-
1431038 Lock ringLock ring
-
155244975 Gas wireGas wire
-
16529751 Steering handle barSteering handle bar
-
1740286 Allen screw M8x45Allen screw M8x45
-
18548448 FasteningFastening
-
1933011 Nut elastic M8Nut elastic M8
-
2033201 Nut elastic M8Nut elastic M8
-
215343381 Retaining supportRetaining support
-
22572064500 Bearing halfBearing half
-
23572064400 Bearing halfBearing half
-
245244297 Steering paleSteering pale
-
2533023 Nut elastic M10Nut elastic M10
-
2631014 WasherWasher
-
27548983 vansterTie rod L.H.vansterTie rod L.H.
-
2833019 Nut M10 R.H.Nut M10 R.H.
-
29414768000 Ball joint, rightBall joint, right
-
30414768100 Ball joint, leftBall joint, left
-
3133017 Nut M10 L.H.Nut M10 L.H.
-
3220015 Spring washerSpring washer
-
33414438900 WasherWasher
-
34414439000 CirclipCirclip
-
35572044600 Throttle adaptorThrottle adaptor
-
36539033 RubberRubber
-
3721003 HornHorn
-
385444196 SupportSupport
-
395343947 Bearing assyBearing assy
-
415441066 Tie rod R.H.Tie rod R.H.
-
4220004 WasherWasher
