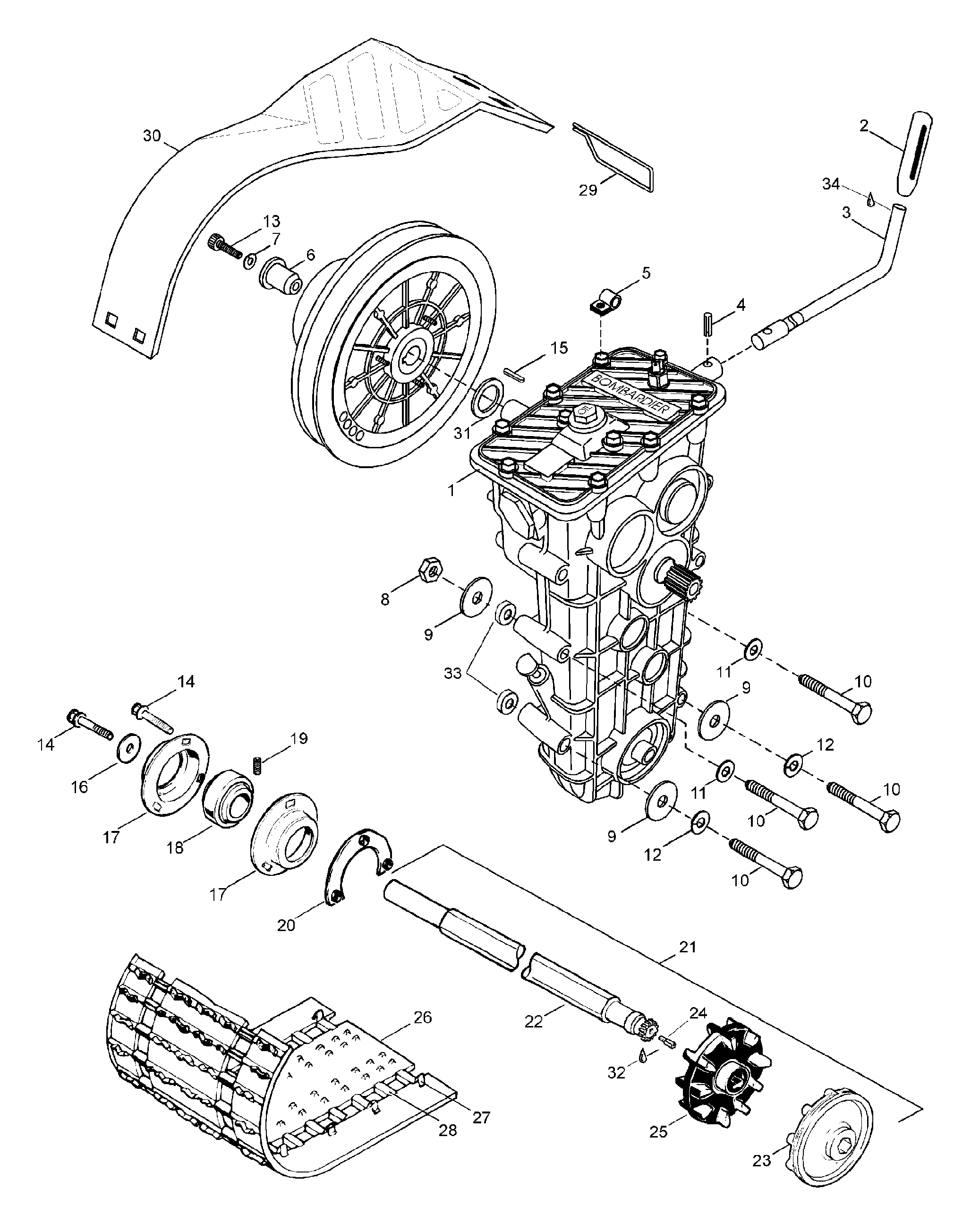

05- Drive Axle для BRP Lynx GLX 5900 FCE - 2000
-
№АртикулНазвание
-
1870156074 Gear boxGear box
-
228247 ButtonButton
-
35340902 Shift handleShift handle
-
441007 Spring keySpring key
-
55443134 Cable keeperCable keeper
-
65443201 SpacerSpacer
-
720014 Spring washerSpring washer
-
833011 Nut elastic M8Nut elastic M8
-
920010 WasherWasher
-
1040012 Screw M8x80Screw M8x80
-
1120004 WasherWasher
-
1220014 Lock washerLock washer
-
1340286 Allen screw M8x45Allen screw M8x45
-
1440336 Screw M8x20Screw M8x20
-
15418763 KeyKey
-
16546336 WasherWasher
-
17534430 Bearing housing setBearing housing set
-
1831UC205 BearingBearing
-
1910531 Lock screwLock screw
-
20546421 Thrust ringThrust ring
-
215344384 Drive axle assyDrive axle assy
-
225341662 Drive axleDrive axle
-
235342920 Sprocket 1:2Sprocket 1:2
-
24542013 Speedometer drive iSpeedometer drive i
-
25539750 Sprocket 1:1Sprocket 1:1
-
2613055 Track 500 mm. Includes items 26 thru 28Track 500 mm. Includes items 26 thru 28
-
275318323 Cleat guideCleat guide
-
285318322 Slide guideSlide guide
-
295442726 PinPin
-
305142660 Belt guardBelt guard
-
32293800005 Loctite 271, 10mlLoctite 271, 10ml
-
3320077 WasherWasher
