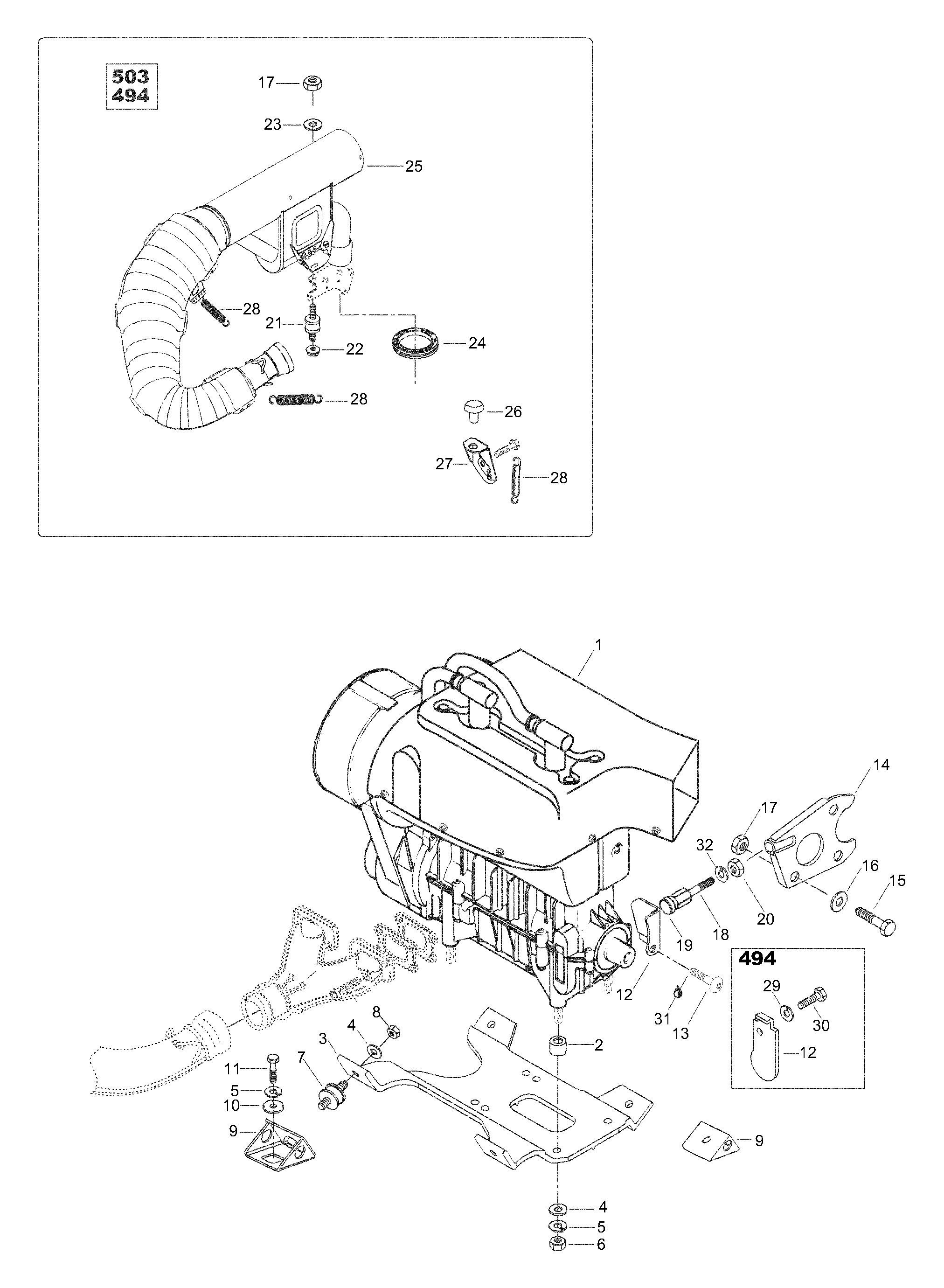

01- Engine Mount Plate/Muffler для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
1400509721 Engine >Engine >
-
2512051800 SpacerSpacer
-
3512059134 Engine supportEngine support
-
420005 WasherWasher
-
520113 Spring washerSpring washer
-
633004 Nut M10Nut M10
-
7570127700 Rubber mountRubber mount
-
833082 Nut elastic M10Nut elastic M10
-
9512050900 SupportSupport
-
10512056700 Lock washerLock washer
-
1140040 Screw M10x25Screw M10x25
-
12512059198 Stopper plateStopper plate
-
1340882 Screw M8x20Screw M8x20
-
14517271800 Support plateSupport plate
-
1540037 Screw M8x25Screw M8x25
-
1620004 WasherWasher
-
1733011 Nut elastic M8Nut elastic M8
-
18517244200 ScrewScrew
-
19570025100 Gummi damperGummi damper
-
2033063 Nut M12Nut M12
-
21514052838 Rubber bumperRubber bumper
-
2233201 Elastic flanged nut M8Elastic flanged nut M8
-
2320010 WasherWasher
-
24570039000 Exhaust grommetExhaust grommet
-
25514097600 MufflerMuffler
-
26570048700 Rubber bumperRubber bumper
-
27514044100 Muffler supportMuffler support
-
28415107100 SpringSpring
-
31293800005 Loctite 271, 10mlLoctite 271, 10ml
