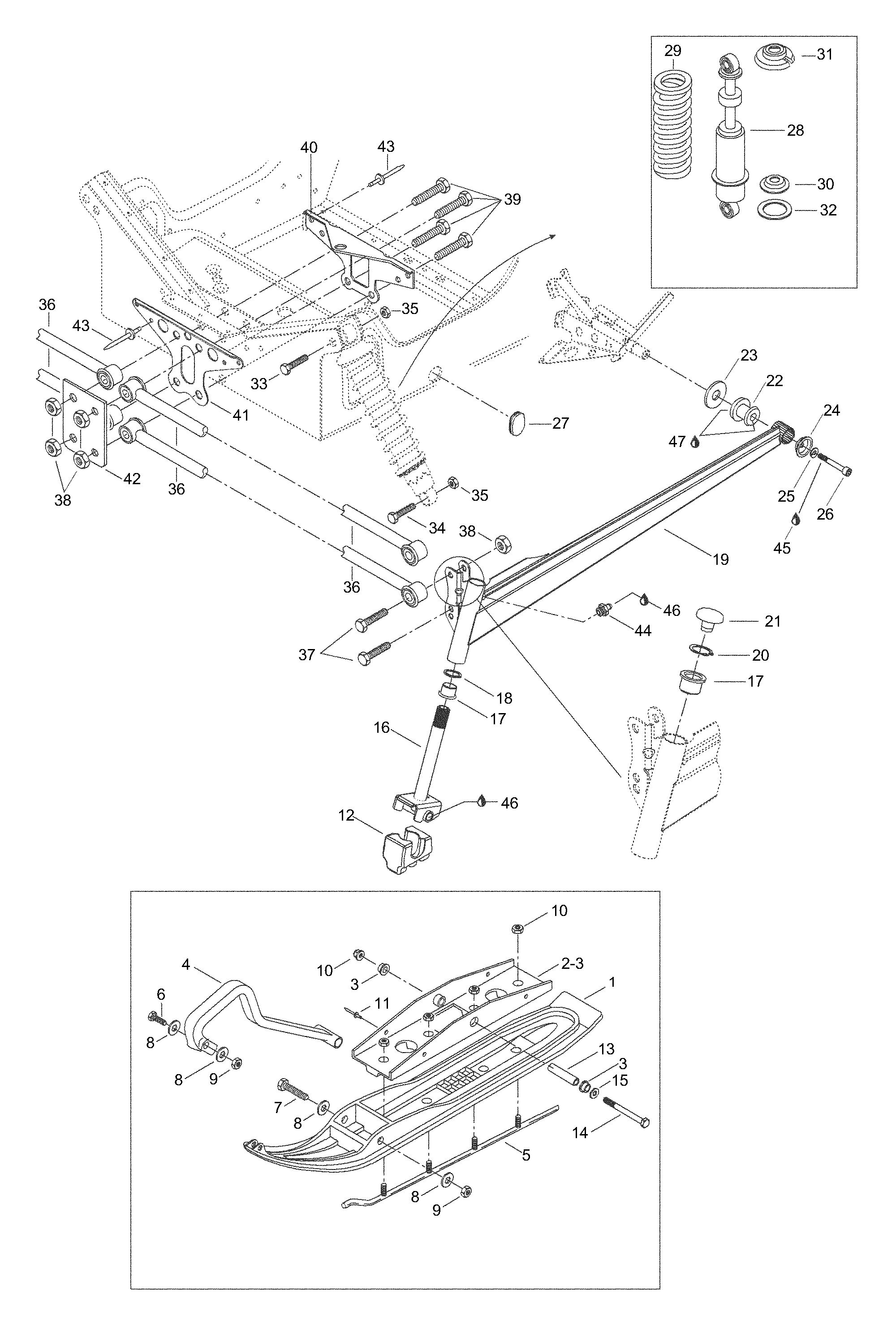

08- Front Suspension для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
1505070190 Flexible ski linerFlexible ski liner
-
2505070055 Bridge assy. Includes items 2 thru 3Bridge assy. Includes items 2 thru 3
-
3505070001 SleeveSleeve
-
4572101000 Plastic handlePlastic handle
-
5860501900 Runner pairRunner pair
-
640009 Screw M8x50Screw M8x50
-
740869 Screw M8x100Screw M8x100
-
820004 WasherWasher
-
933011 Nut elastic M8Nut elastic M8
-
1033074 Nut M10Nut M10
-
11390911100 RivetRivet
-
12506151233 Ski stopperSki stopper
-
13506133300 SleeveSleeve
-
1440814 Screw M10x110Screw M10x110
-
1520105 Washer, hardenedWasher, hardened
-
16506151234 Ski legSki leg
-
17505070003 SleeveSleeve
-
18505070004 WasherWasher
-
19503189735 R.H. swing armR.H. swing arm
-
19503189736 L.H. swing armL.H. swing arm
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22570062200 Rubber damperRubber damper
-
23503146700 WasherWasher
-
24506115800 Cup washerCup washer
-
2520014 Spring washerSpring washer
-
2640289 Allen screw M8x25Allen screw M8x25
-
27414916600 PluggPlugg
-
28505070013 ShockShock
-
29414955800 Spring, blackSpring, black
-
30503165100 Spring guideSpring guide
-
31503140600 Spring stopperSpring stopper
-
32503184400 WasherWasher
-
3340019 Screw M10x60Screw M10x60
-
3440018 Screw M10x55Screw M10x55
-
3533082 Nut elastic M10Nut elastic M10
-
36580649500 ArmArm
-
37401250 Screw M12x50Screw M12x50
-
3833013 Nut elastic M12Nut elastic M12
-
3940023 Screw M10x100Screw M10x100
-
40517254900 Rear link plateRear link plate
-
41517254800 Front link plateFront link plate
-
42518306700 SupportSupport
-
4336070 RivetRivet
-
4434011 Crease nippleCrease nipple
-
45293800060 Loctite 243, 10mlLoctite 243, 10ml
-
46413711500 Synthetic greaseSynthetic grease
-
47293550014 GreaseGrease
