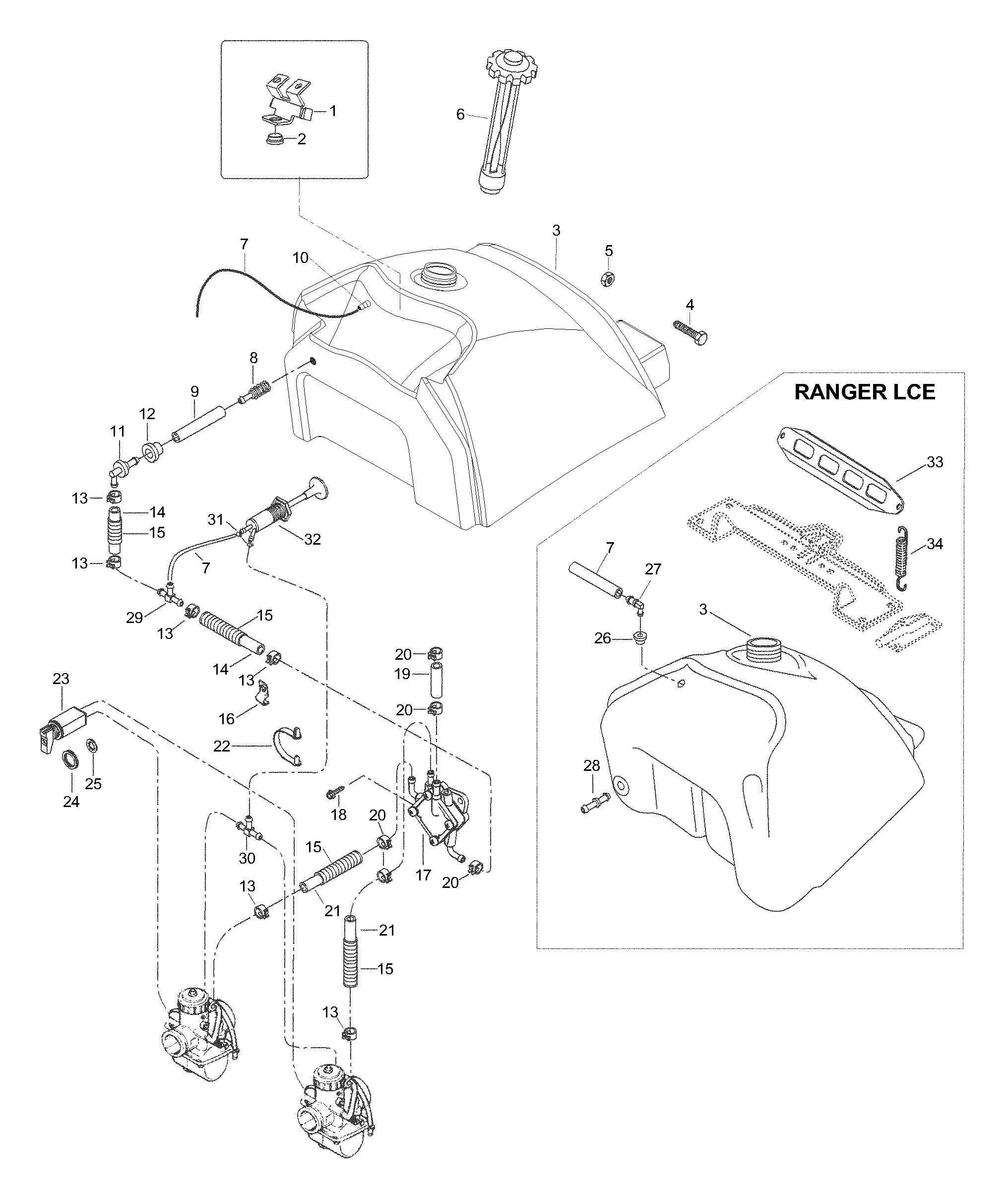

02- Fuel Tank для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
15346938 Fuel tank bracketFuel tank bracket
-
25446939 Al-sleeveAl-sleeve
-
35145048 Fuel tankFuel tank
-
440826 Screw M6x90Screw M6x90
-
533200 Elastic flanged nut M6Elastic flanged nut M6
-
6572161200 Fuel tank capFuel tank cap
-
739035 Hose 5/3Hose 5/3
-
8414865700 Fuel filterFuel filter
-
939030 Fuel line 8/5Fuel line 8/5
-
10404153400 Male connectorMale connector
-
11414580600 Male connectorMale connector
-
12570045500 GrommetGrommet
-
13414554800 ClampClamp
-
1439004 Fuel line 8/5Fuel line 8/5
-
1528012 TubingTubing
-
16415018200 ClipClip
-
17403801000 Fuel pumpFuel pump
-
1840322 Screw M6x16Screw M6x16
-
1939001 Fuel line 11/6Fuel line 11/6
-
20414420700 ClampClamp
-
2139060 Fuel line 8/5.5Fuel line 8/5.5
-
22414379300 Cable clipCable clip
-
23414967000 Choke cableChoke cable
-
24414977200 Plastic nutPlastic nut
-
25394103300 Lock washerLock washer
