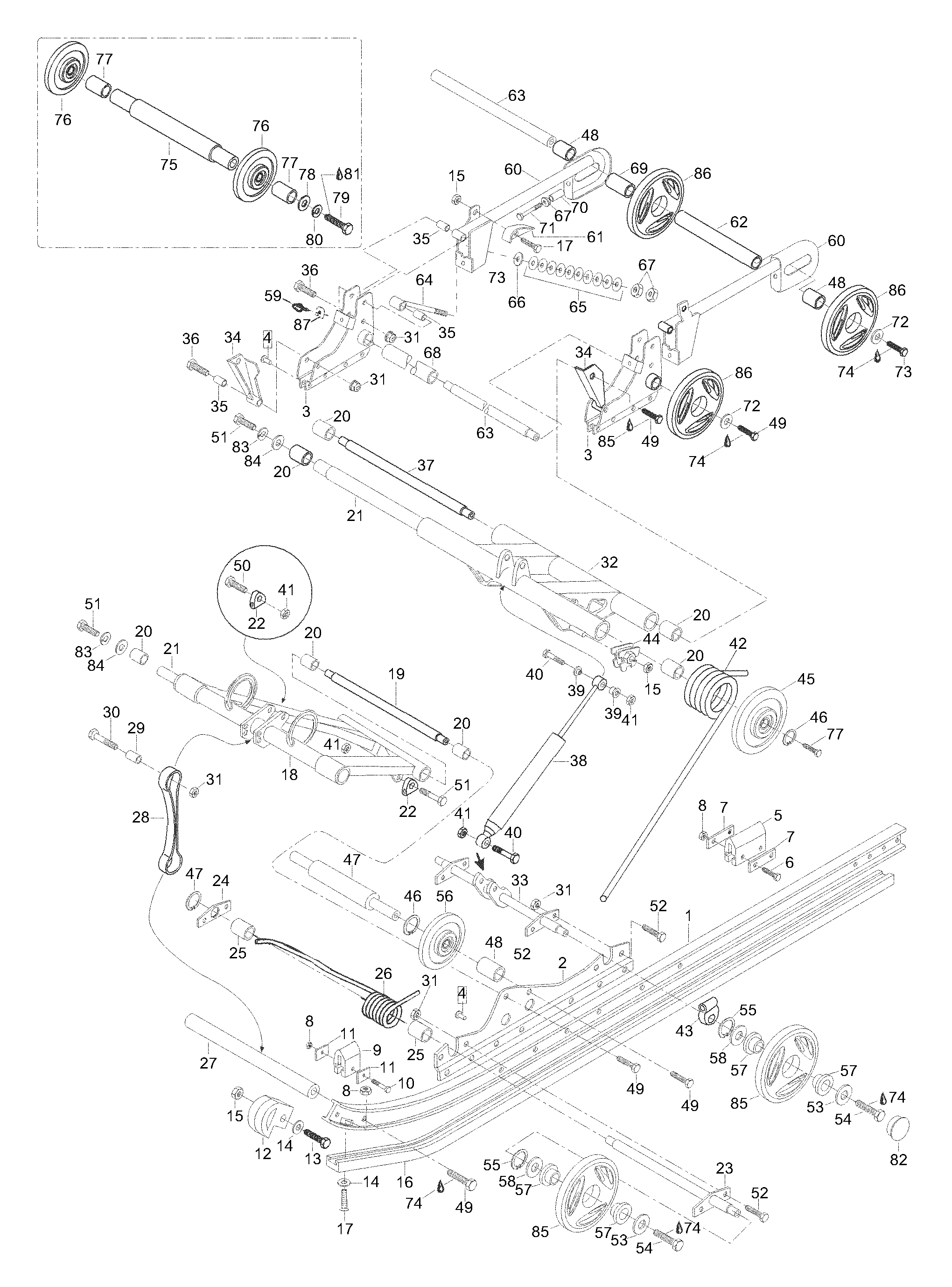

08- Rear Suspension для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
15142865 Slide rail assy, L.H.. Includes items 1 thru 4Slide rail assy, L.H.. Includes items 1 thru 4
-
15142866 Slide rail assy, R.H.. Includes items 1 thru 4Slide rail assy, R.H.. Includes items 1 thru 4
-
15142864 Slide railSlide rail
-
25344811 Side plate R.H.Side plate R.H.
-
25344810 Side plate L.H.Side plate L.H.
-
3539673 Extension plate L.H.Extension plate L.H.
-
3539672 Extension plate R.H.Extension plate R.H.
-
4544212 RivetRivet
-
5570023100 Rubber damperRubber damper
-
640002 Screw M6x40Screw M6x40
-
7548387 WasherWasher
-
833010 Lock nut M6Lock nut M6
-
95442328 Rubber damperRubber damper
-
1040032 Screw M6x30Screw M6x30
-
11548470 WasherWasher
-
12534578 Slide pieceSlide piece
-
1340031 Screw M6x25Screw M6x25
-
1420003 WasherWasher
-
1533200 Nut M6Nut M6
-
16549582 Slide surfaceSlide surface
-
1740030 Screw M6x20Screw M6x20
-
18538796 Rocker arm, frontRocker arm, front
-
19548944 Boggie shaftBoggie shaft
-
2031046 Slide BearingSlide Bearing
-
21538945 ShaftShaft
-
22548799 Crank blockCrank block
-
23538802 Support wheel shaftSupport wheel shaft
-
24548469 Support plateSupport plate
-
25548841 Support sleeveSupport sleeve
-
26538798 Spring, R.H. d=9.0Spring, R.H. d=9.0
-
26538797 Spring, L.H. d=9.0Spring, L.H. d=9.0
-
27546599 Belt shaftBelt shaft
-
285445988 Stop beltStop belt
-
29546065 SleeveSleeve
-
3040122 Screw M8x50Screw M8x50
-
3133011 Lock nut M8Lock nut M8
-
32538801 Rocking frame, rearRocking frame, rear
-
33538803 ShaftShaft
-
345440349 Lever, L.H.Lever, L.H.
-
345440350 Lever, R.H.Lever, R.H.
-
35545758 SleeveSleeve
-
3640008 Screw M8x45Screw M8x45
-
37548946 ShaftShaft
-
3823016 Shock absorberShock absorber
-
39544417 SleeveSleeve
-
4040017 Screw M10x50Screw M10x50
-
4133012 Nut elastic M10Nut elastic M10
-
425342228 Spring, L.H. d=11Spring, L.H. d=11
-
425342229 Spring, R.H. d=11Spring, R.H. d=11
-
43548804 Spring crank blockSpring crank block
-
44572030800 Adjustment Cam, L.H.Adjustment Cam, L.H.
-
44572030900 Adjustment Cam, R.H.Adjustment Cam, R.H.
-
4546031 Support wheel, 165/BKSupport wheel, 165/BK
-
4631001 CirclipCirclip
-
475445985 Support wheel shaftSupport wheel shaft
-
485444098 SleeveSleeve
-
4940335 Allen screw M10x30Allen screw M10x30
-
5040018 Screw M10x55Screw M10x55
-
5140042 Screw M10x35Screw M10x35
-
5240035 Screw M8x16Screw M8x16
-
53503183100 WasherWasher
-
5440336 Screw M8x20Screw M8x20
-
5531007 CirclipCirclip
-
5646035 Support wheel, 135/BKSupport wheel, 135/BK
-
57503189534 InsertInsert
-
5831091 ShimShim
-
59535455 Rubber dampperRubber dampper
-
605243099 Extension R.H.Extension R.H.
-
605243098 Extension L.H.Extension L.H.
-
61548262 Track guardTrack guard
-
625444096 SleeveSleeve
-
635445986 Axle, rearAxle, rear
-
645440377 Spring controllerSpring controller
-
6525004 Cop washerCop washer
-
6620011 WasherWasher
-
6733004 Nut M10Nut M10
-
68542105 Sleeve,L=176Sleeve,L=176
-
695444097 SleeveSleeve
-
70546668 SleeveSleeve
-
7140239 Screw M10x100Screw M10x100
-
72503183300 WasherWasher
-
73250000019 Locking screwLocking screw
-
74293800060 Loctite 243Loctite 243
-
75503153600 ShaftShaft
-
76572043500 Support wheelSupport wheel
-
77572048300 SleeveSleeve
-
7820004 WasherWasher
-
7940047 Screw M8x30Screw M8x30
-
8020014 Spring washerSpring washer
-
81293800005 Loctite 271, 10mlLoctite 271, 10ml
-
82570063600 CapCap
-
8320047 Spring washerSpring washer
-
8420105 Washer, hardenedWasher, hardened
-
855345345 Support wheel, 135/BLSupport wheel, 135/BL
-
865345346 Support wheel, 165/BLSupport wheel, 165/BL
-
875440645 Shim plateShim plate
