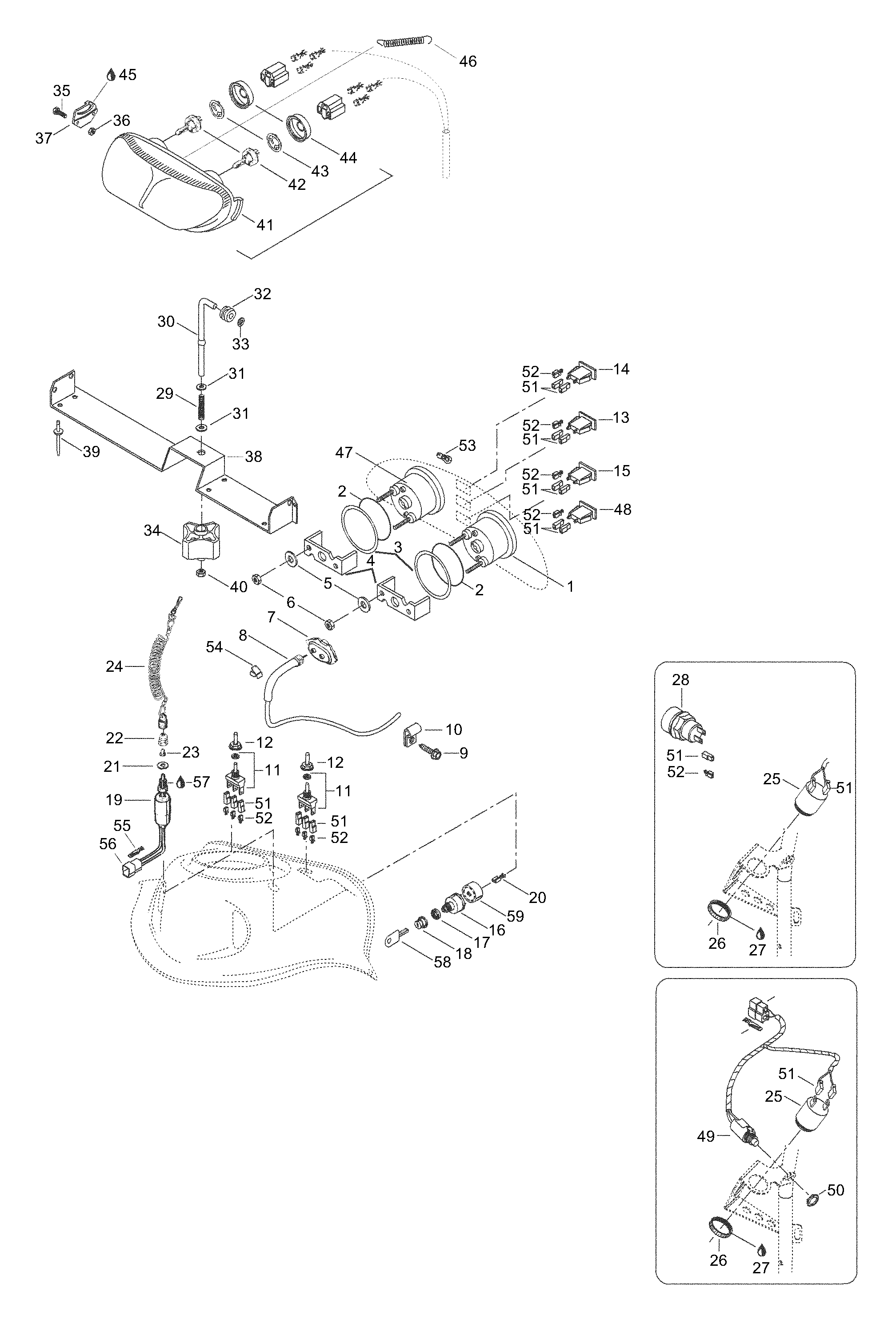

10- Electric для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
1515175335 Speedometer assySpeedometer assy
-
2414807100 O-ringO-ring
-
3517258500 WasherWasher
-
4414806500 Housing supportHousing support
-
520002 WasherWasher
-
633009 Nut elastic M5Nut elastic M5
-
7515175400 Drive AngleDrive Angle
-
8414761400 Speedometer cableSpeedometer cable
-
940870 ScrewScrew
-
10414176000 ClipClip
-
11410107300 SwitchSwitch
-
12515175281 Switch coverSwitch cover
-
13410109500 Pilot lamp, redPilot lamp, red
-
14410109600 Pilot lamp, bluePilot lamp, blue
-
15410113400 Pilot-lamp (reverse)Pilot-lamp (reverse)
-
1642019 Ignition switchIgnition switch
-
17410112100 Switch nutSwitch nut
-
18570013700 Switch bootSwitch boot
-
19515175369 Brake switchBrake switch
-
20561503100 ConnectorConnector
-
2120005 WasherWasher
-
22515145900 Switch nutSwitch nut
-
23570151100 Plunger capPlunger cap
-
24515151500 Switch cap assySwitch cap assy
-
25415060900 HornHorn
-
26414805101 Plastic nutPlastic nut
-
27293800005 Loctite 271, 10mlLoctite 271, 10ml
-
28415101200 Reverse knobReverse knob
-
2925042 SpringSpring
-
305445735 Grip of Head LightGrip of Head Light
-
3120009 WasherWasher
-
32415100800 GrommetGrommet
-
33732610072 Nut pushNut push
-
34515175548 HandleHandle
-
3540366 Screw M5x16Screw M5x16
-
3633009 Nut elastic M5Nut elastic M5
-
37517289400 R.H. supportR.H. support
-
37517289300 L.H. supportL.H. support
-
385345290 Head Lamp HolderHead Lamp Holder
-
3936037 RivetRivet
-
4033010 Nut elastic M6Nut elastic M6
-
41515175158 Headlamp assyHeadlamp assy
-
4242263 Bulp, HS1Bulp, HS1
-
43410608300 Bulp halderBulp halder
-
44410607100 CoverCover
-
45413707500 Grease tube, 400gGrease tube, 400g
-
465445737 SpringSpring
-
51409010400 Connector housingConnector housing
-
52409010100 ConnectorConnector
-
53410504200 Instrumentation bulpInstrumentation bulp
-
54414227300 ClipClip
-
55409210000 ConnectorConnector
-
56409204600 Connector housingConnector housing
-
57293550004 Dielectric greaseDielectric grease
-
58414991700 Blank keyBlank key
-
59572150700 Ignition switch blockIgnition switch block
