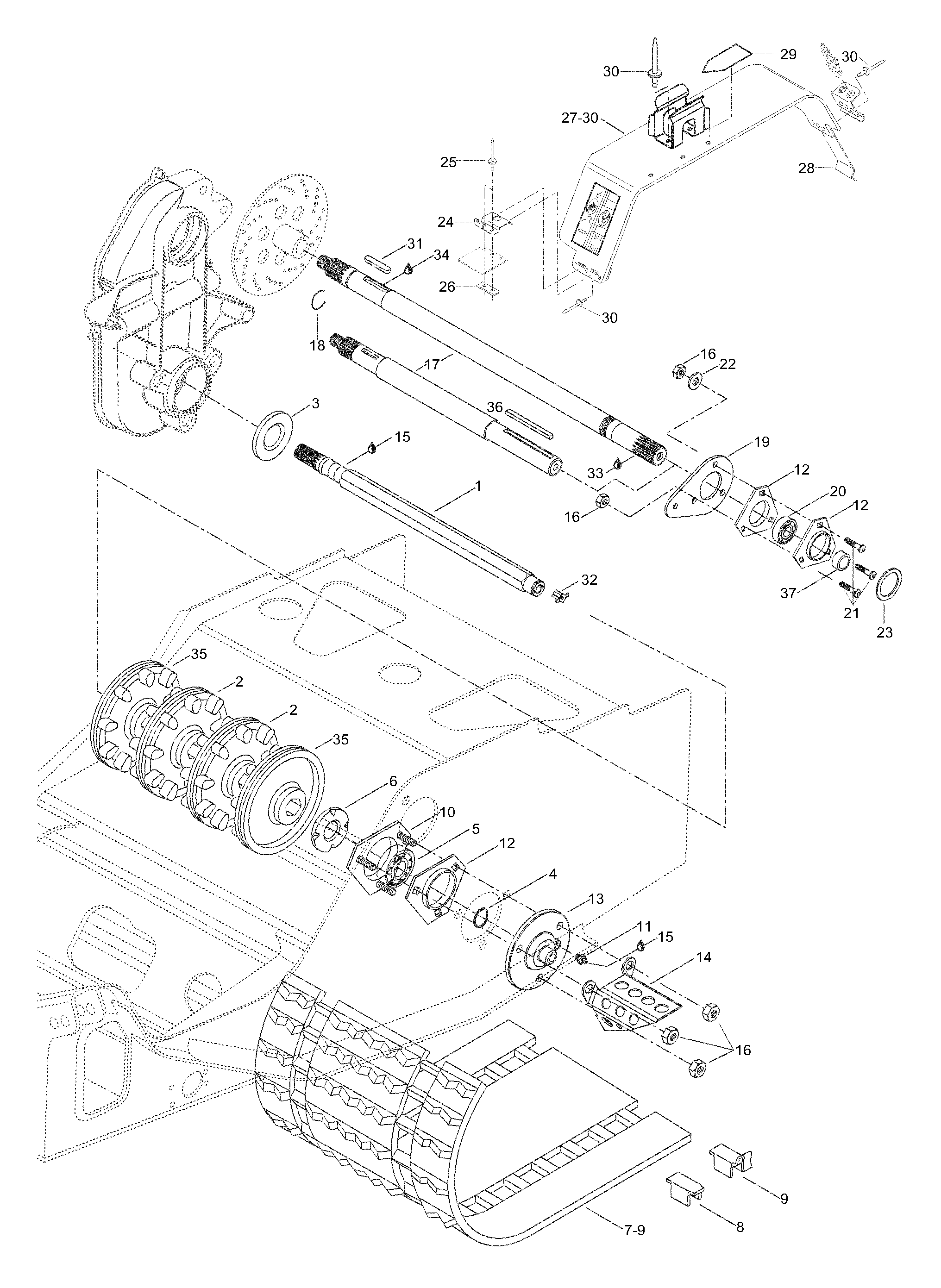

05- Drive Axle для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
1504151714 Drive axleDrive axle
-
2414882600 Sprocket, 9-teethSprocket, 9-teeth
-
3581101700 Oil sealOil seal
-
4371910200 CirclipCirclip
-
5405408600 BearingBearing
-
6501017400 Ball bearing protectorBall bearing protector
-
713057 Track. Includes items 7 thru 9Track. Includes items 7 thru 9
-
85318329 Flat cleatFlat cleat
-
95318330 Guide cleatGuide cleat
-
10504151860 Ball bearing housingBall bearing housing
-
1134011 Grease fittingGrease fitting
-
12501025000 FlangeFlange
-
13504151836 FlangeFlange
-
14517290100 Cable protectorCable protector
-
15413711500 Synthetic greaseSynthetic grease
-
1633011 Nut elastic M8Nut elastic M8
-
17504150300 Counter shaftCounter shaft
-
18371910000 CirclipCirclip
-
19501022300 SpacerSpacer
-
20405408900 BearingBearing
-
2140344 Screw M8x25Screw M8x25
-
2220004 WasherWasher
-
23417300054 ShimShim
-
24518314200 BracketBracket
-
2536489 RivetRivet
-
26518207500 SupportSupport
-
27417300012 Belt guard. Includes items 27 thru 30Belt guard. Includes items 27 thru 30
-
28414941800 Tool box springTool box spring
-
29516000132 Warning labelWarning label
-
30390402200 RivetRivet
-
31507021300 KeyKey
-
32572010100 Insert-speedoInsert-speedo
-
33293800023 Loctite 767Loctite 767
