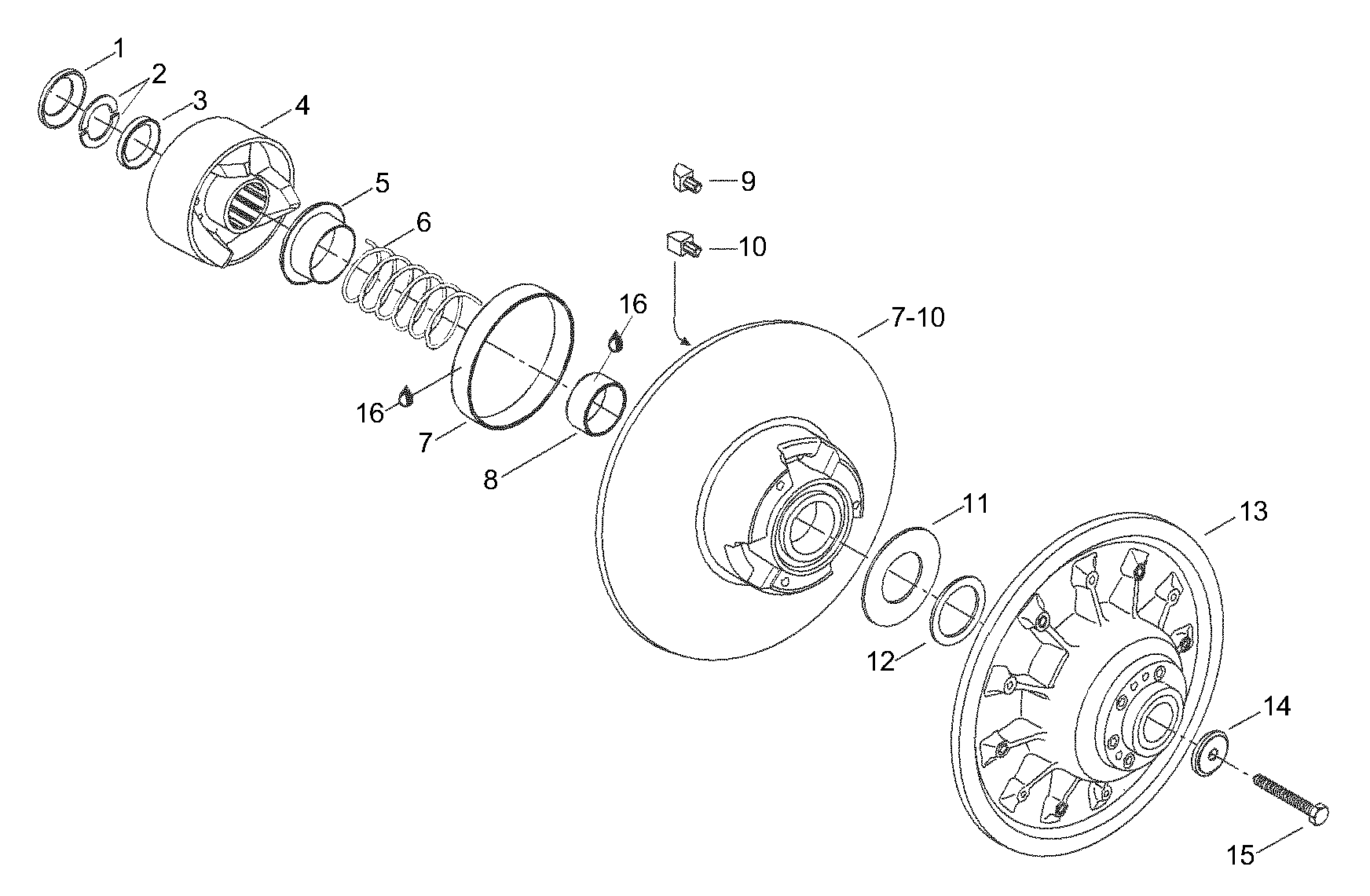

05- Driven Pulley для BRP Lynx Ranger FCE - 2001
-
№АртикулНазвание
-
1417300055 ProtectorProtector
-
2371911000 Half keyHalf key
-
3417126368 SpacerSpacer
-
4417124700 Cam 47-44Cam 47-44
-
5415006000 GuardGuard
-
6415092800 Spring, yellowSpring, yellow
-
7417126403 Sliding pulley. Includes items 7 thru 10Sliding pulley. Includes items 7 thru 10
-
7415092700 BushingBushing
-
8415092600 BushingBushing
-
9417126373 Front cam shoe slide, RDFront cam shoe slide, RD
-
10417126374 Front cam shoe slide, BKFront cam shoe slide, BK
-
11504099600 Stopper washerStopper washer
-
12504112300 ShimShim
-
13417126401 Fixed flange assyFixed flange assy
-
14517302322 WasherWasher
-
1540012 Screw M8x80Screw M8x80
-
16413703100 Loctite 609, 10mlLoctite 609, 10ml
