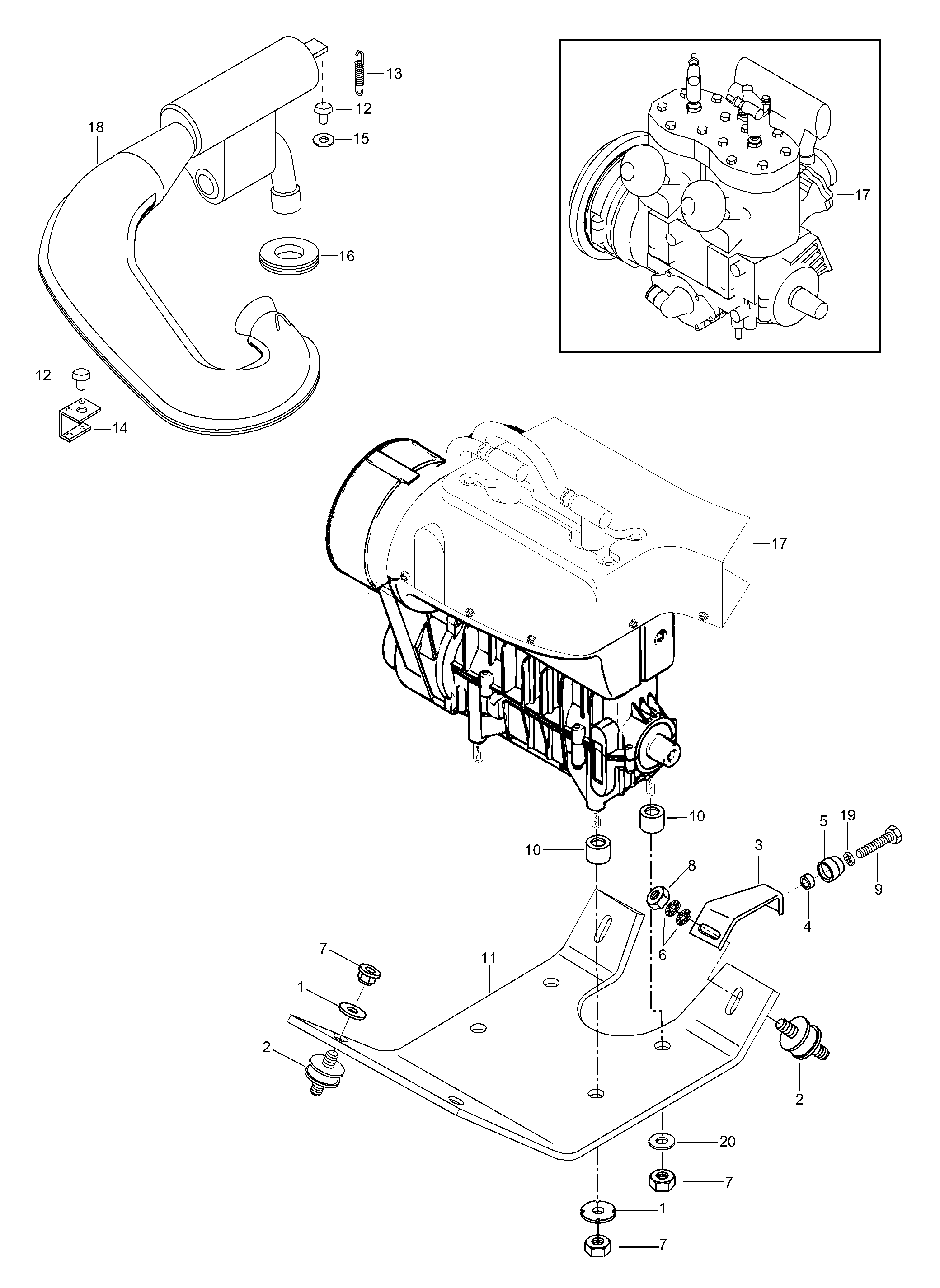

01- Engine Mount Plate/Muffler для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
1512056700 Lock washerLock washer
-
2570127700 Rubber mountRubber mount
-
3539902 SupportSupport
-
42846014 Rubber washerRubber washer
-
55440091 SleeveSleeve
-
620068 Lock washerLock washer
-
733012 Nut elastic M10Nut elastic M10
-
833004 Nut M10Nut M10
-
940121 Screw M8x40Screw M8x40
-
105446347 SleeveSleeve
-
115347639 Engine supportEngine support
-
12570048700 Rubber-bumberRubber-bumber
-
13420938795 SpringSpring
-
145345893 SuportSuport
-
1520087 ShimShim
-
16570039000 Exhaust washerExhaust washer
-
1711000063 > Engine> Engine
-
18420979858 Tuned pipeTuned pipe
-
1933003 Nut M8Nut M8
-
2020105 Washer, hardenedWasher, hardened
