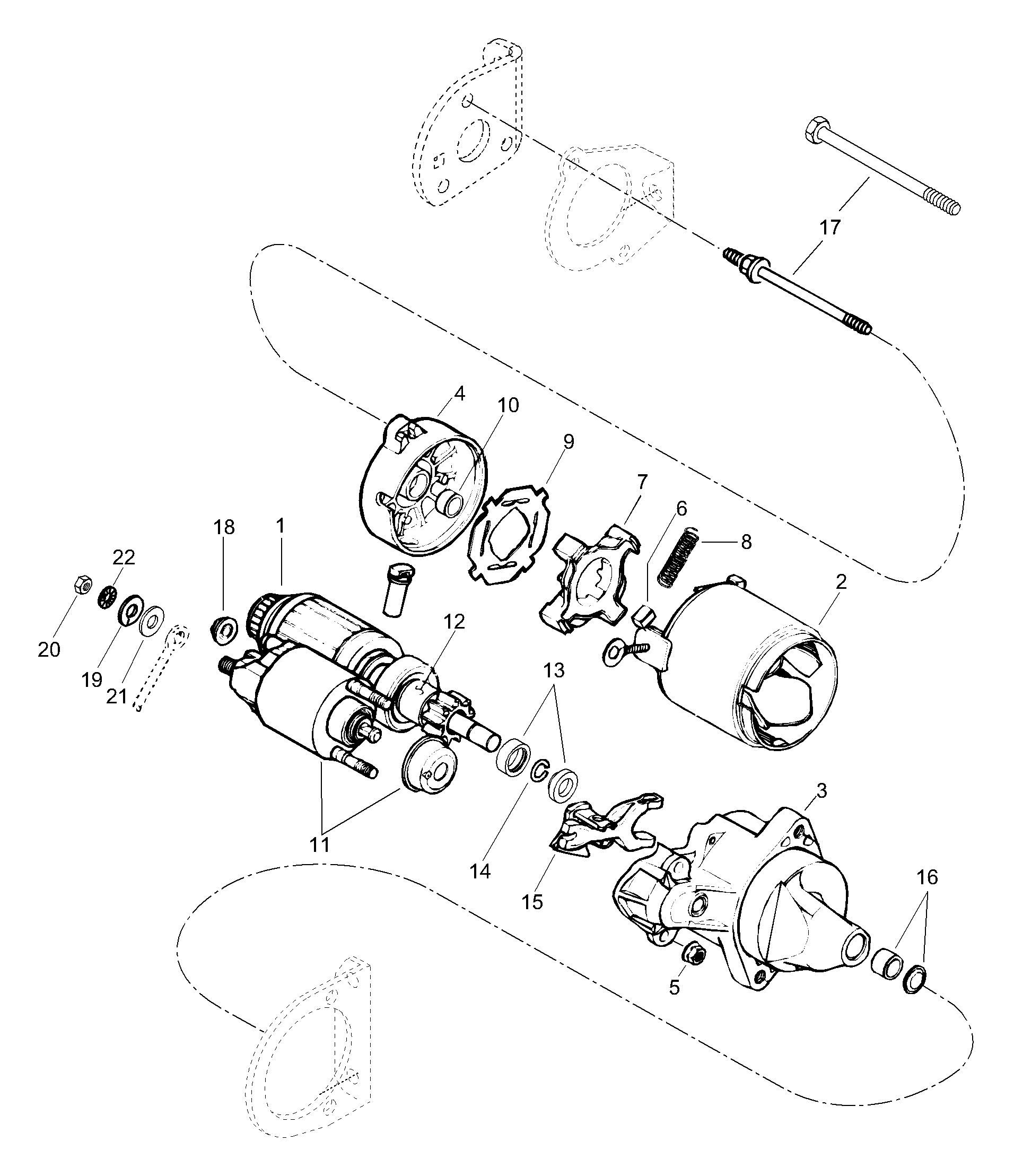

10- Electric Starter для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
1515175537 Electric starter. Includes items 1 thru 18Electric starter. Includes items 1 thru 18
-
1410210200 Armature assyArmature assy
-
2410213106 Housing starterHousing starter
-
3410213110 HousingHousing
-
5410211200 NutNut
-
6410213107 Brush kitBrush kit
-
7410209700 Brush holderBrush holder
-
8410209800 SpringSpring
-
9410209900 InsulatorInsulator
-
10410210100 Bushing brassBushing brass
-
11410210300 Switch assySwitch assy
-
12410210400 Bendix wheelBendix wheel
-
13410212500 Toothed nutToothed nut
-
14410212600 CirclipCirclip
-
15410213109 LeverLever
-
16410210900 Bushing brassBushing brass
-
17410213112 BoltBolt
-
18410211100 NutNut
-
2033003 Nut M8Nut M8
-
2120004 WasherWasher
-
2220072 Locking washerLocking washer
