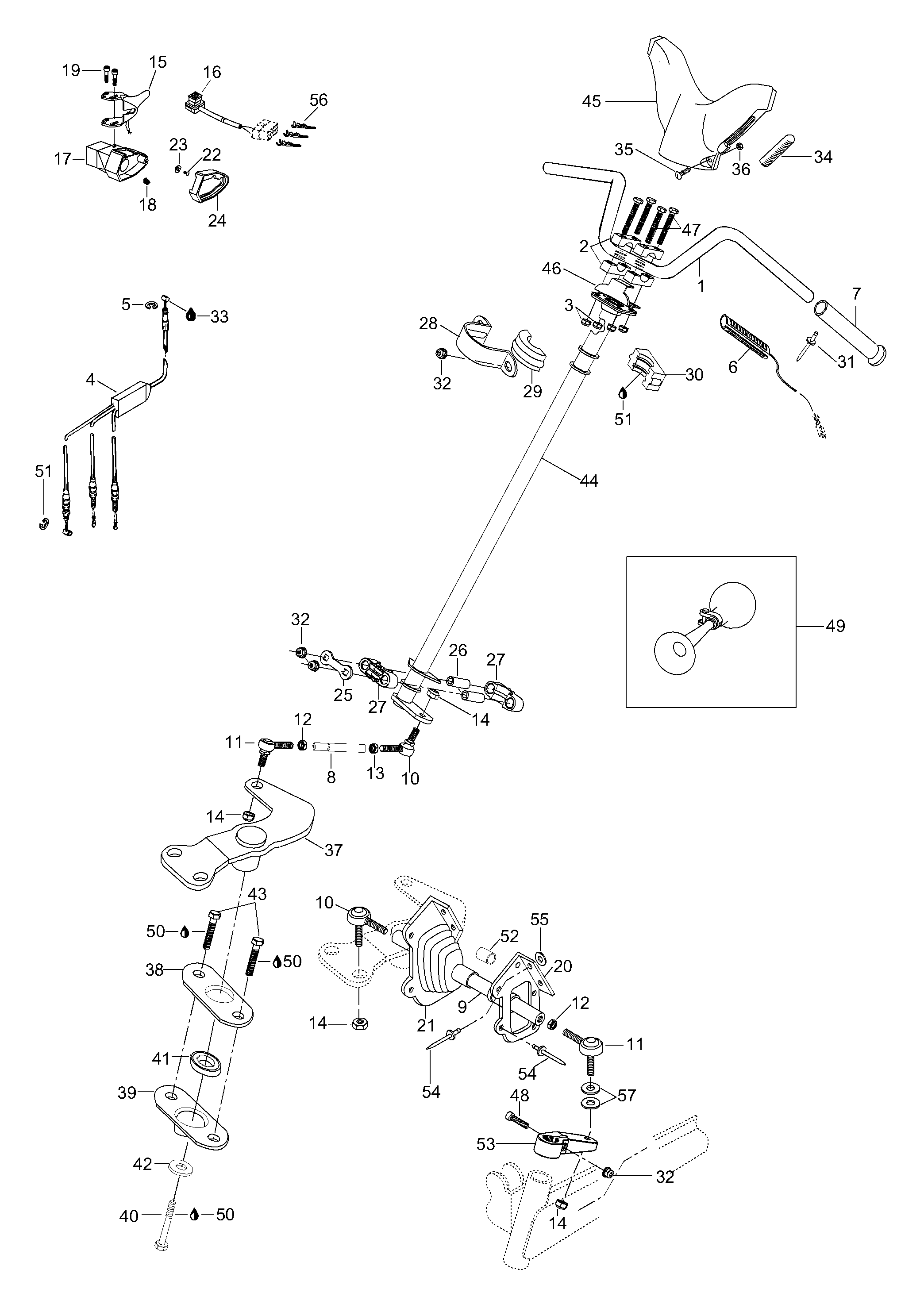

07- Steering для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
1529751 Steering handle barSteering handle bar
-
2548448 FasteningFastening
-
333011 Nut elastic M8Nut elastic M8
-
45246328 Throttle CableThrottle Cable
-
531038 CirclipCirclip
-
6515175664 Heating grip kitHeating grip kit
-
75340464 HandleHandle
-
85445590 Tie rod, shortTie rod, short
-
95445591 Tie rodTie rod
-
10506151495 Ball joint, leftBall joint, left
-
11506151492 Ball joint, rightBall joint, right
-
1233019 Nut M10 R.H.Nut M10 R.H.
-
1333017 Nut M10 L.H.Nut M10 L.H.
-
1433023 Nut elastic M10Nut elastic M10
-
15512059162 Heated handleHeated handle
-
16414612700 Kill switchKill switch
-
17572028600 Throttle handle hous.Throttle handle hous.
-
18414440800 Screw M8x10Screw M8x10
-
19732601143 ScrewScrew
-
20517241200 R.H. Plate-capR.H. Plate-cap
-
20517241300 L.H. Plate-capL.H. Plate-cap
-
21570024800 R.H. Cap rod tieR.H. Cap rod tie
-
21570024900 R.H. Cap rod tieR.H. Cap rod tie
-
22414473200 ScrewScrew
-
2320026 WasherWasher
-
24572044600 Throttle adaptorThrottle adaptor
-
25506150600 Plate stopperPlate stopper
-
26506150500 Bushing-housingBushing-housing
-
27506150400 Half-housingHalf-housing
-
285343381 Retaining supportRetaining support
-
29572064500 Bearing halfBearing half
-
30572064400 Bearing halfBearing half
-
3136005 RivetRivet
-
3233201 Nut elastic M8Nut elastic M8
-
33413701700 GreaseGrease
-
34572023900 KeyKey
-
3540156 Screw M5x20Screw M5x20
-
3633062 Nut M5Nut M5
-
375344929 Lever WeldLever Weld
-
385345380 PlatePlate
-
395345339 Bearing SupportBearing Support
-
4040337 Screw M8x16Screw M8x16
-
41405404500 BearingBearing
-
425446279 WasherWasher
-
4340336 Screw M8x20Screw M8x20
-
44605248433 Steering paleSteering pale
-
45572023800 PadPad
-
465444196 SupportSupport
-
4740286 Allen screw M8x45Allen screw M8x45
-
4840828 Allen screw M8x35Allen screw M8x35
-
4921003 Condor HornCondor Horn
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
5131035 CirclipCirclip
-
52572036500 BushingBushing
-
535348261 Steering ArmSteering Arm
-
5436036 RivetRivet
-
5520008 WasherWasher
-
5642603 ConnectorConnector
-
5720105 Washer, hardenedWasher, hardened
