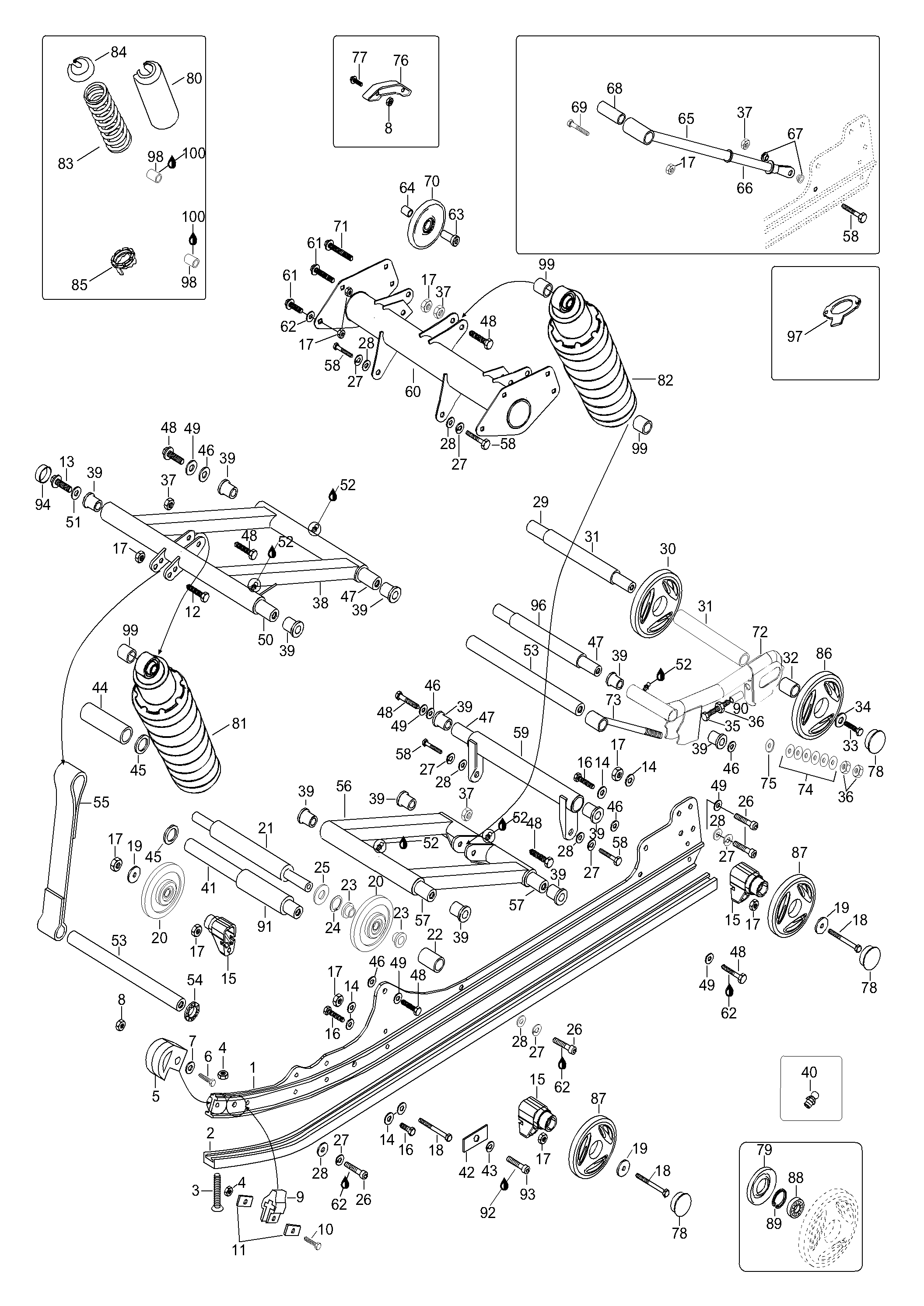

08- Rear Suspension для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
15247224 RunnerRunner
-
25347724 Shoe runnerShoe runner
-
340059 Allen screw M6x60Allen screw M6x60
-
433010 Nut elastic M6Nut elastic M6
-
5534578 Runner protectorRunner protector
-
640031 Screw M6x25Screw M6x25
-
720003 WasherWasher
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95448216 Rubber stopperRubber stopper
-
1040032 Screw M6x30Screw M6x30
-
11548470 PlatePlate
-
1240008 Screw M8x45Screw M8x45
-
1340243 Screw M12x60Screw M12x60
-
1420104 Washer, hardenedWasher, hardened
-
155447079 SupportSupport
-
1640037 Screw M8x25Screw M8x25
-
1733011 Nut elastic M8Nut elastic M8
-
1840089 Screw M8x75Screw M8x75
-
19503183100 Washer, hardenedWasher, hardened
-
20503188998 Idler wheel 139, blackIdler wheel 139, black
-
215347950 AxleAxle
-
225447951 SleeveSleeve
-
23503189534 InsertInsert
-
2431007 CirclipCirclip
-
2531091 ShimShim
-
2640134 Allen screw M10x45Allen screw M10x45
-
2720047 Spring washerSpring washer
-
2820105 Washer, hardenedWasher, hardened
-
295343284 AxleAxle
-
30503189478 Idler wheel 165Idler wheel 165
-
315444096 SleeveSleeve
-
325444098 SleeveSleeve
-
33250000019 Locking screw M10x35Locking screw M10x35
-
34503183300 Washer, hardenedWasher, hardened
-
3540239 Screw M10x100Screw M10x100
-
3633004 Nut M10Nut M10
-
3733012 Elastic nut M10Elastic nut M10
-
385147672 Front arm weldedFront arm welded
-
3931083 SleeveSleeve
-
4034011 Grease nippleGrease nipple
-
415347726 AxleAxle
-
425447940 Support plateSupport plate
-
4320068 Lock washerLock washer
-
445346649 SleeveSleeve
-
4531013 ShimShim
-
4620116 WasherWasher
-
475347713 ShaftShaft
-
4840016 Screw M10x45Screw M10x45
-
49512056700 Lock washerLock washer
-
505347719 ShaftShaft
-
5120090 Spring washerSpring washer
-
52413711500 Synthetic greaseSynthetic grease
-
535347717 ShaftShaft
-
544181158 Snapp ringSnapp ring
-
555447961 Stopper strapStopper strap
-
565245536 Rear arm weldedRear arm welded
-
575346865 ShaftShaft
-
5840014 Screw M10x40Screw M10x40
-
595347668 Rear arm weldedRear arm welded
-
605247670 Upper armUpper arm
-
6140058 Locking screw M8x20Locking screw M8x20
-
635448078 SleeveSleeve
-
645448079 SleeveSleeve
-
655347851 Poker tube weld.Poker tube weld.
-
665347852 Poker shaft weld.Poker shaft weld.
-
675447853 InsertInsert
-
685447848 SleeveSleeve
-
6940011 Screw M8x70Screw M8x70
-
7046027 Idler wheelIdler wheel
-
7140217 Screw M8x65Screw M8x65
-
725247806 R.H. ExtensionR.H. Extension
-
725247808 L.H. ExtensionL.H. Extension
-
735447373 Eye bolt adjusterEye bolt adjuster
-
7425004 PlatePlate
-
7520011 WasherWasher
-
765343191 ProtectorProtector
-
7740064 Locking screw M6x40Locking screw M6x40
-
78570063600 ProtectorProtector
-
79572089000 Labyrinth sealLabyrinth seal
-
805346754 Shock protectorShock protector
-
8123151 Shock assy, front (incl. parts:83, 84, 85)Shock assy, front (incl. parts:83, 84, 85)
-
8223152 Shock assy, rear (incl. parts:83, 84, 85)Shock assy, rear (incl. parts:83, 84, 85)
-
83230077 Spring, centerSpring, center
-
83230079 Spring, rearSpring, rear
-
84230076 Spring seatSpring seat
-
85230078 Adjusting camAdjusting cam
-
865347563 Idler wheel 165/RedIdler wheel 165/Red
-
875348071 Idler wheel 139/redIdler wheel 139/red
-
88405405500 Ball bearingBall bearing
-
89371901700 CirclipCirclip
-
90546668 SleeveSleeve
-
915347718 SleeveSleeve
-
9232089 Glue Loctite 243, 5 gGlue Loctite 243, 5 g
-
9340536 Allen screw M10x45Allen screw M10x45
-
945448025 CapCap
-
95207103544 Screw M10x35Screw M10x35
-
96605448429 SleeveSleeve
-
975347884 Adjusting wrenchAdjusting wrench
-
9831094 Slide bearingSlide bearing
-
995446652 SleeveSleeve
