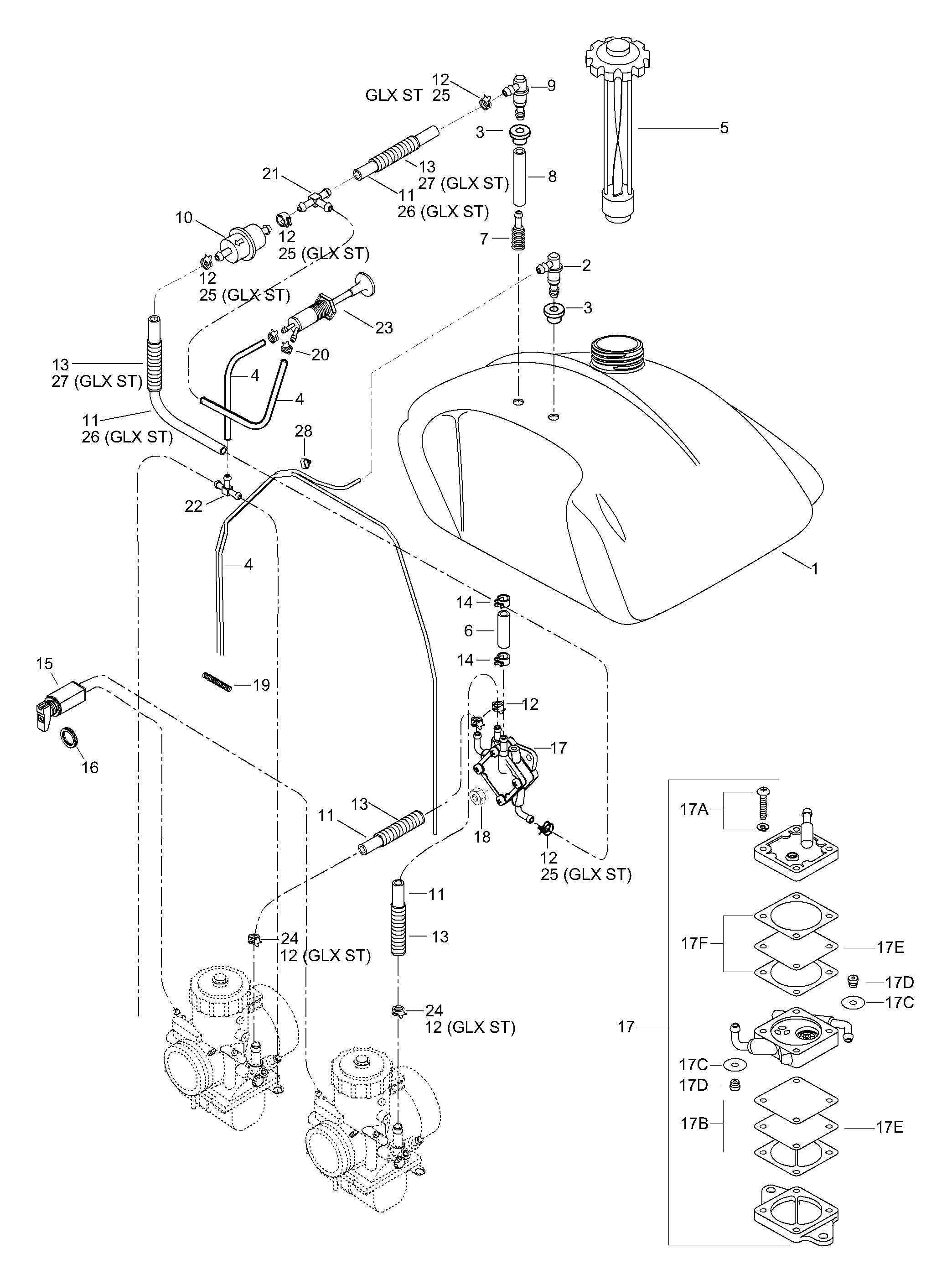

02- Fuel Tank для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
1519393 Fuel tank 42 lFuel tank 42 l
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 Airpipe 5/3Airpipe 5/3
-
5572161200 CapCap
-
639001 Fuel hose 11/6Fuel hose 11/6
-
7414872100 Fuel FilterFuel Filter
-
839048 Fuel hose 12.5/7.5Fuel hose 12.5/7.5
-
95341709 Connector-maleConnector-male
-
10414536500 Fuel filterFuel filter
-
1139004 Fuel hose 8/5Fuel hose 8/5
-
1227086 ClampClamp
-
14414420700 ClampClamp
-
15535482 ChokeChoke
-
16414977200 Plastic nutPlastic nut
-
1719113 Fuel pumpFuel pump
-
1833010 Nut elastic M6Nut elastic M6
-
1925006 SpringSpring
-
25414415200 ClampClamp
-
2639046 Fuel hose 11/8Fuel hose 11/8
-
2728015 Spiral tubeSpiral tube
-
28513032923 Clamp tubeClamp tube
