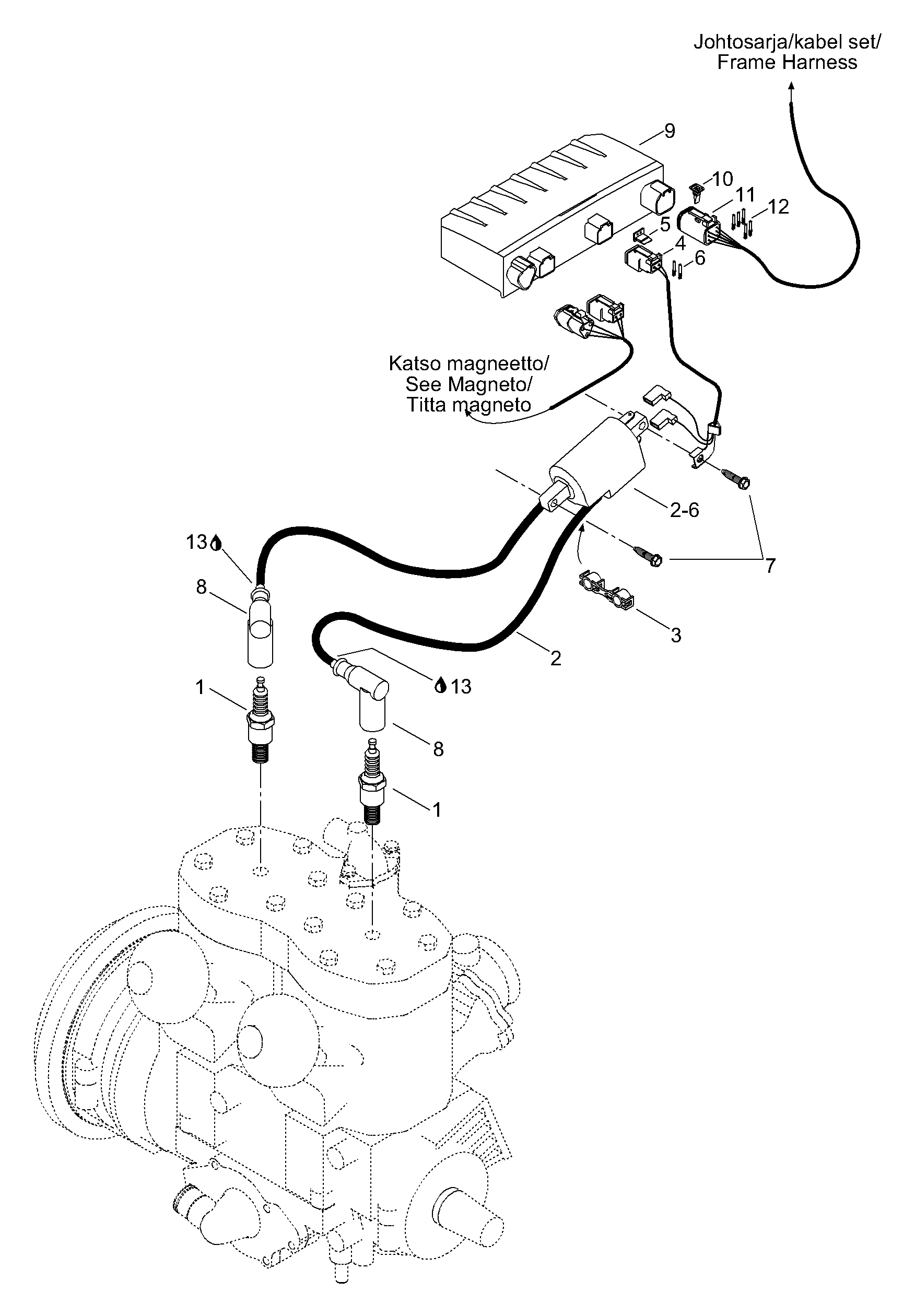

10- DESS для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
1512059533 Spark plug BR9ECSSpark plug BR9ECS
-
25246315 Ignition coil assy. Includes items 2 thru 6Ignition coil assy. Includes items 2 thru 6
-
3410914600 Plastic clipPlastic clip
-
442610 Female terminal housiFemale terminal housi
-
542609 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
740377 Screw M6x20Screw M6x20
-
8278000237 Spark plug protectorSpark plug protector
-
95247879 Calibration moduleCalibration module
-
10278000737 Female lock (6 circuits)Female lock (6 circuits)
-
11278000736 Female terminal housiFemale terminal housi
-
12278000632 Female terminalFemale terminal
-
13293550004 140gDielectric grease, 140g140gDielectric grease, 140g
Все узлы модели:
- 01- Air Silencer
- 01- Crankshaft Assy
- 01- Cylinder
- 01- Engine Mount Plate/Muffler
- 01- Oil Tank
- 01- Radiator, Hoses
- 02- Carburetor
- 02- Fuel Tank
- 03- Fly Wheel
- 04- Rewind Starter
- 05- Clutch
- 05- Crankcase
- 05- Drive Axle
- 05- Driven Pulley
- 05- Gearbox
- 06- Brake Assy
- 07- Steering
- 08- Front Suspension
- 08- Rear Suspension
- 09- Equipment
- 09- Frame
- 09- Hood
- 10- Battery
- • 10- DESS
- 10- Electric
- 10- Electric Starter
- 11- Accessories
