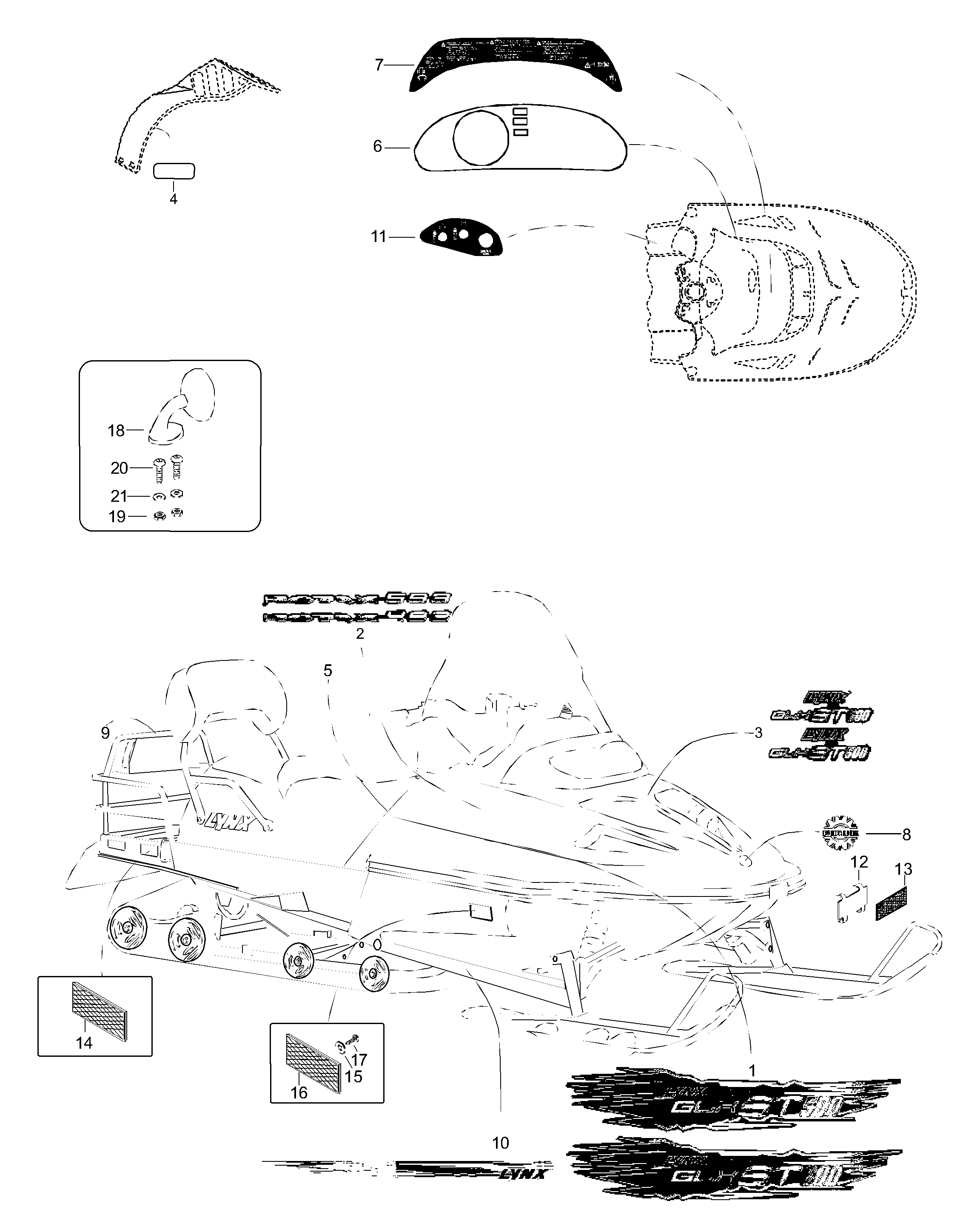

09- Equipment для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
5147496 Decal assy hood cont. decals: 1, 2, 3Decal assy hood cont. decals: 1, 2, 3
-
15147390 Decal, upper hood R.H.Decal, upper hood R.H.
-
15147391 Decal, upper hood L.H.Decal, upper hood L.H.
-
25147393 Decal, Rotax 593Decal, Rotax 593
-
35147392 Front decal, hoodFront decal, hood
-
45447014 Warning decalWarning decal
-
55447012 Oil cheking decalOil cheking decal
-
65347660 Dash decalDash decal
-
75348181 Instruction decalInstruction decal
-
8516000983 Decal BombardierDecal Bombardier
-
95447929 Instruction decalInstruction decal
-
105247403 L.H. arm decalL.H. arm decal
-
105247404 R.H. arm decalR.H. arm decal
-
115448180 Heat thumb/grip decalHeat thumb/grip decal
-
125440839 SupportSupport
-
1321060 Front reflector whiteFront reflector white
-
1421121 Yellow reflectorYellow reflector
-
1520018 WAsherWAsher
-
16414510200 Reflector, AmberReflector, Amber
-
1740070 Screw M5x10Screw M5x10
-
18414971900 R.H. mirrorR.H. mirror
-
18414972000 L.H. mirrorL.H. mirror
-
1933008 Nut elastic M4Nut elastic M4
-
2040167 Screw M4x16Screw M4x16
-
2120001 WasherWasher
