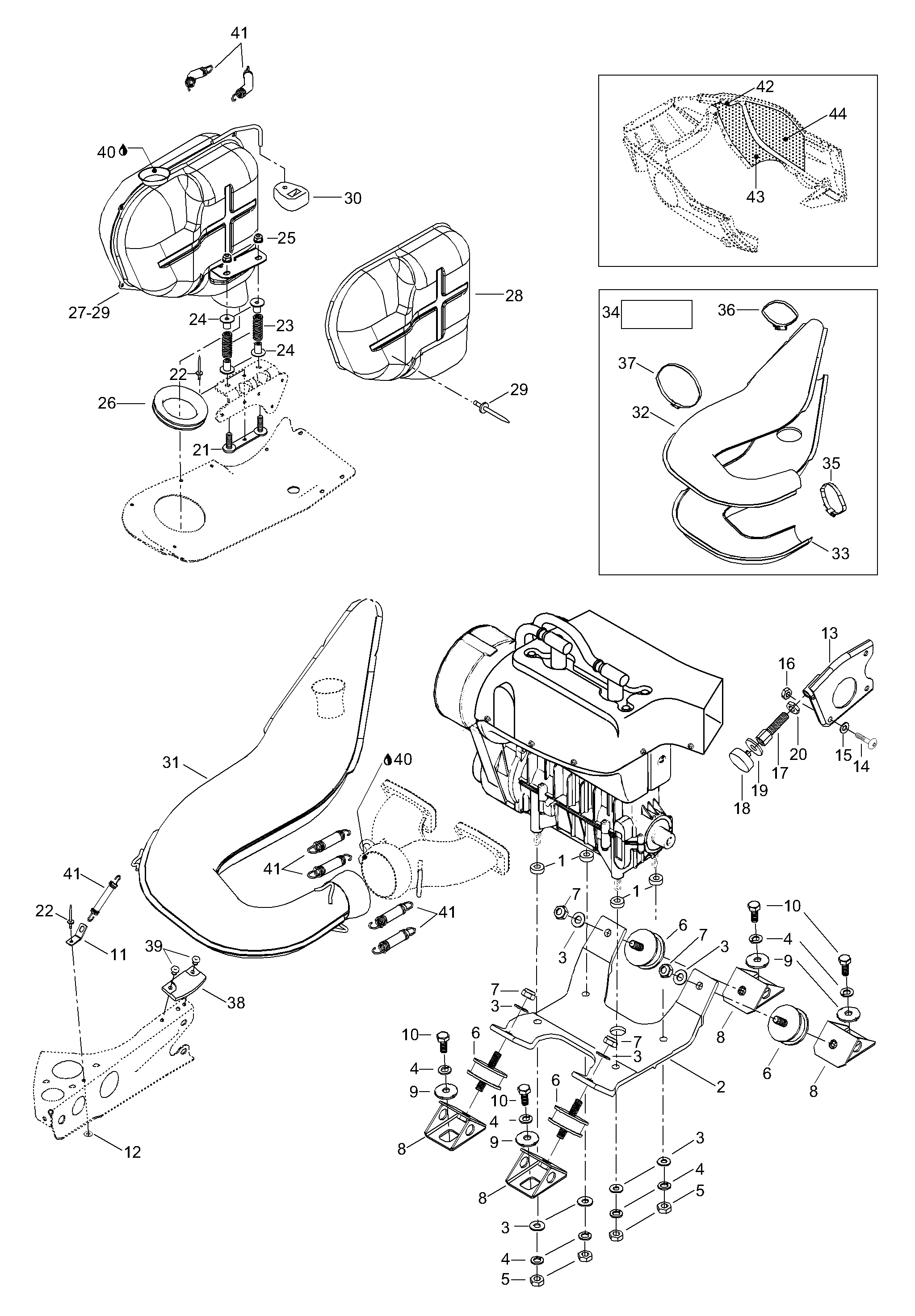

01- Engine Mount Plate/Muffler для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
2512059397 Engine supportEngine support
-
320105 Washer, hardenedWasher, hardened
-
420113 Spring washerSpring washer
-
533004 Nut M10Nut M10
-
6570128700 Rubber mountRubber mount
-
733082 Nut elastic M10Nut elastic M10
-
8512050900 Engine supportEngine support
-
9512056700 Lock washerLock washer
-
1040040 Screw M10 x 25Screw M10 x 25
-
115447086 Spring bracketSpring bracket
-
1220008 WasherWasher
-
13512059446 Support plateSupport plate
-
1440344 Allen screw M8 x 25Allen screw M8 x 25
-
1520004 WasherWasher
-
1633011 Nut elastic M8Nut elastic M8
-
17512058800 Stopper screwStopper screw
-
18512059056 StopperStopper
-
195147306 WasherWasher
-
2033218 Jam nut M12Jam nut M12
-
215447628 BracketBracket
-
2236489 RivetRivet
-
23414913700 SpringSpring
-
24514053343 SleeveSleeve
-
2533029 Elastic flanged nut M8Elastic flanged nut M8
-
26570039000 Rubber grommetRubber grommet
-
27514053648 Muffler assy. 27 Includes items 29Muffler assy. 27 Includes items 29
-
28514053389 L.H. heat shieldL.H. heat shield
-
29390910000 RivetRivet
-
30514052704 Rubber pumberRubber pumber
-
31605150460 Tune pipeTune pipe
-
32605150451 Upper enveloppeUpper enveloppe
-
33605150452 Lower enveloppeLower enveloppe
-
34605250454 Lower isolationLower isolation
-
34605250453 Upper isolationUpper isolation
-
35293650079 ClampClamp
-
36514053074 ClampClamp
-
37514053224 ClampClamp
-
38570044100 Rubber padRubber pad
-
3936037 RivetRivet
-
40413710300 Sealant, loctite 17914Sealant, loctite 17914
-
41415107100 SpringSpring
-
42514053363 IsoleringIsolering
-
43514052718 IsoleringIsolering
-
44514053390 IsoleringIsolering
