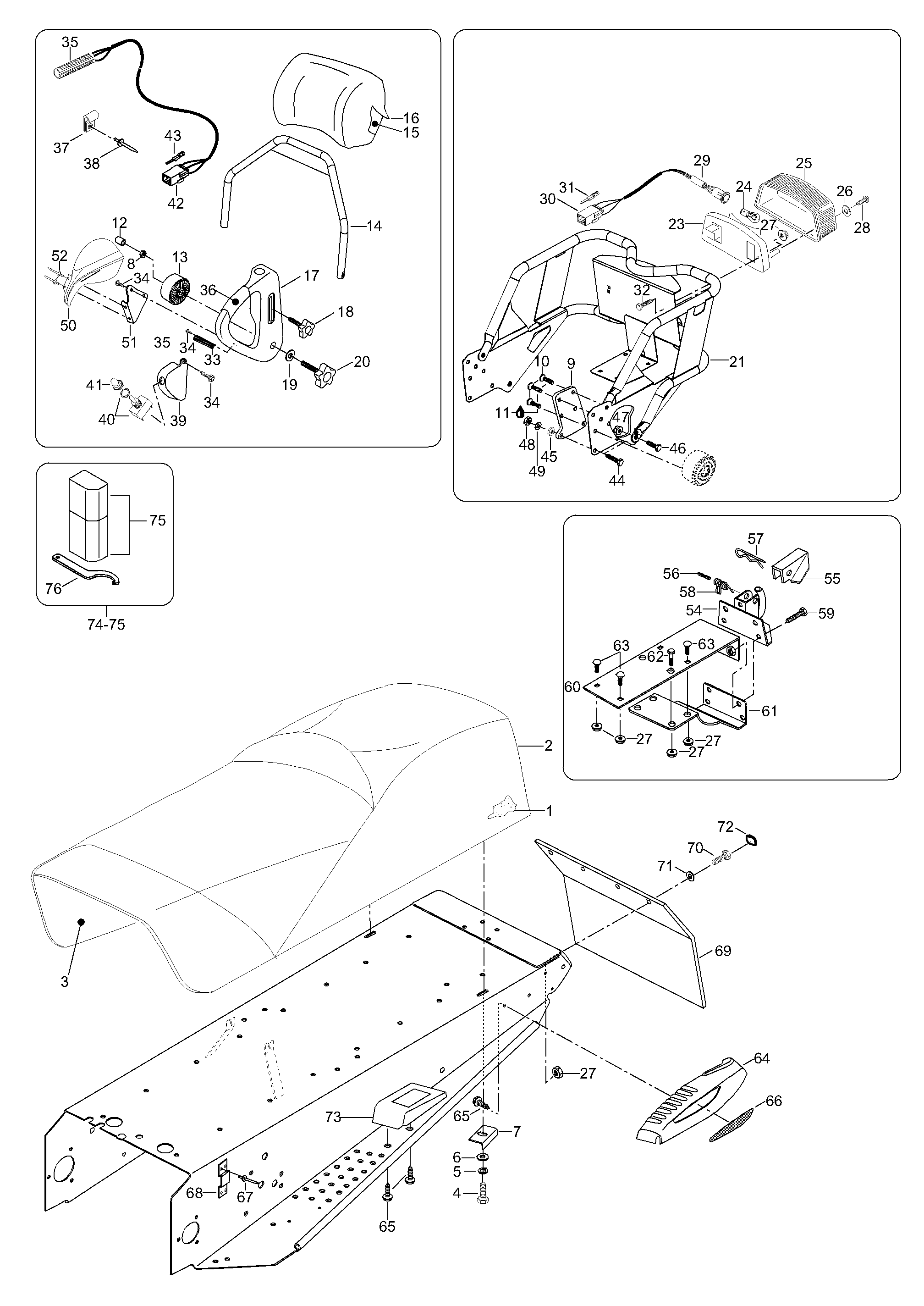

09- Body для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
15146604 Seat foamSeat foam
-
2605148618 Seat coverSeat cover
-
35146603 Seat baseSeat base
-
440015 Screw M8 x 30Screw M8 x 30
-
520014 Lock washerLock washer
-
620010 WasherWasher
-
75447994 Support plateSupport plate
-
833016 Nut elastic M12Nut elastic M12
-
9605350498 R.H. Support plateR.H. Support plate
-
9605350497 L.H. Support plateL.H. Support plate
-
1040839 Allen screw M8 x 20Allen screw M8 x 20
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12510003628 HoseHose
-
13510003543 PivotPivot
-
14605250406 BackrestBackrest
-
15605349172 FoamFoam
-
16605350799 CoverCover
-
17510003542 R.H. armR.H. arm
-
17510003607 L.H. armL.H. arm
-
18510003533 Male handle M8 x 35Male handle M8 x 35
-
1920027 WasherWasher
-
20510003534 Male handle M12 x 45Male handle M12 x 45
-
21605150337 Rack assyRack assy
-
23515175397 Taillamp housingTaillamp housing
-
24410504000 BulbBulb
-
25414513700 LensLens
-
26414516400 WasherWasher
-
2733200 Nut M6Nut M6
-
28414516300 ScrewScrew
-
29515175852 AdaptorAdaptor
-
3042271 Male connector housingMale connector housing
-
3142614 Female terminalFemale terminal
-
3240149 Locking screw M6 x 30Locking screw M6 x 30
-
33605349166 HousingHousing
-
3440847 ScrewScrew
-
35605349534 HeaterHeater
-
36605451380 R.H. GripR.H. Grip
-
36605451381 L.H. GripL.H. Grip
-
3727025 ClipClip
-
3836036 RivetRivet
-
39605348889 BracketBracket
-
40410110700 SwitchSwitch
-
41515175281 CoverCover
-
4242606 Connector housingConnector housing
-
4342614 Female connectorFemale connector
-
4440397 Screw M8 x 25Screw M8 x 25
-
45605450499 SleeveSleeve
-
4640316 Screw M8 x 20Screw M8 x 20
-
4733201 Elastic flanged nut M8Elastic flanged nut M8
-
4833006 Nut M8Nut M8
-
4920072 Lock washerLock washer
-
50572089400 R.H. Passeng. hand Grip SR.H. Passeng. hand Grip S
-
50572089500 L.H. Passeng. hand Grip SL.H. Passeng. hand Grip S
-
51605348911 R.H. Bracket hand gripR.H. Bracket hand grip
-
51605348912 L.H. Bracket hand gripL.H. Bracket hand grip
-
5236037 RivetRivet
-
535344156 Hitch Assy. Includes items 53 thru 58Hitch Assy. Includes items 53 thru 58
-
545344208 Hitch WeldHitch Weld
-
555440767 LockLock
-
5641012 Spring PinSpring Pin
-
5741029 Needle PinNeedle Pin
-
58545693 SpringSpring
-
5940336 Screw M8 x 20Screw M8 x 20
-
60605450084 BracketBracket
-
61605350085 ReinforcementReinforcement
-
6240029 Screw M6 x 16Screw M6 x 16
-
6340866 Locking screw M6 x 20Locking screw M6 x 20
-
64861777700 R.H. mouldingR.H. moulding
-
64861777800 L.H. mouldingL.H. moulding
-
6540870 Hex. tapping screwHex. tapping screw
-
66516000241 R.H. rear reflectorR.H. rear reflector
-
66516000242 L.H. rear reflectorL.H. rear reflector
-
6736489 RivetRivet
-
685447908 BracketBracket
-
695246859 Snow guardSnow guard
-
7040078 Screw M6 x 22Screw M6 x 22
-
7120009 WasherWasher
-
72415073300 CapCap
-
73572088700 GT SE Foot Rest RHGT SE Foot Rest RH
-
73572088800 GT SE Foot Rest LHGT SE Foot Rest LH
-
745445403 Tool box with tools. Includes items 74 thru 75Tool box with tools. Includes items 74 thru 75
-
75572036310 Tool boxTool box
-
76529032900 Wrench adjustWrench adjust
