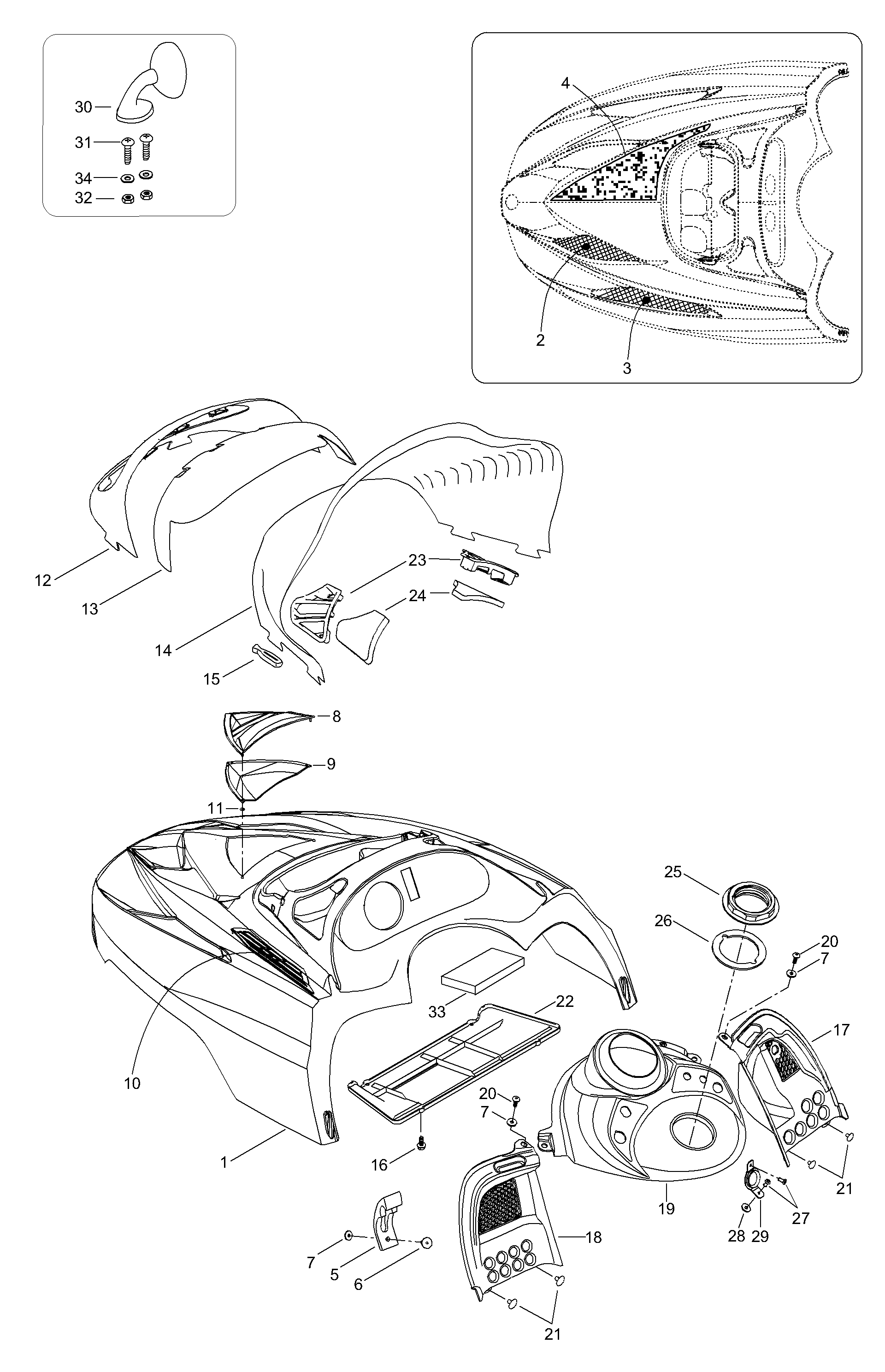

09- Hood для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
1605148648 Hood, Nautical blue. Includes items 1 thru 4Hood, Nautical blue. Includes items 1 thru 4
-
25346887 L.H. GrillL.H. Grill
-
25346888 R.H. GrillR.H. Grill
-
35346889 L.H. GrillL.H. Grill
-
35346890 R.H. GrillR.H. Grill
-
4414631900 Foam-acousticFoam-acoustic
-
5570027100 Hood latchHood latch
-
636037 RivetRivet
-
720008 WasherWasher
-
85247486 Middle grillMiddle grill
-
95247487 Inlet duct, middleInlet duct, middle
-
105247488 L.H. outlet grill, sideL.H. outlet grill, side
-
1141034 CirclipCirclip
-
12517302158 Mold. head lampMold. head lamp
-
13517302003 Windshield supportWindshield support
-
14517302560 WindshieldWindshield
-
15570023800 Windshield latchWindshield latch
-
16243141640 Screw M4 x 16Screw M4 x 16
-
17517302005 R.H.consoleR.H.console
-
18517302006 L.H.consoleL.H.console
-
195248076 Center consoleCenter console
-
20732600030 ScrewScrew
-
2136036 RivetRivet
-
22517302836 Air intake plateAir intake plate
-
23517302024 R.H. air intake grillR.H. air intake grill
-
23517302025 L.H. air intake grillL.H. air intake grill
-
24605450267 Air intake foamAir intake foam
-
25517302043 Console nutConsole nut
-
265447116 GasketGasket
-
2736002 RivetRivet
-
28517302286 Rubber stopperRubber stopper
-
29517302129 Rope guideRope guide
-
30414971910 R.H. mirrorR.H. mirror
-
30414972010 L.H. mirrorL.H. mirror
-
3140167 Screw M4 x 16Screw M4 x 16
-
32232541414 Nut elastic M4Nut elastic M4
-
33605350268 Air intake foamAir intake foam
-
3420001 WasherWasher
