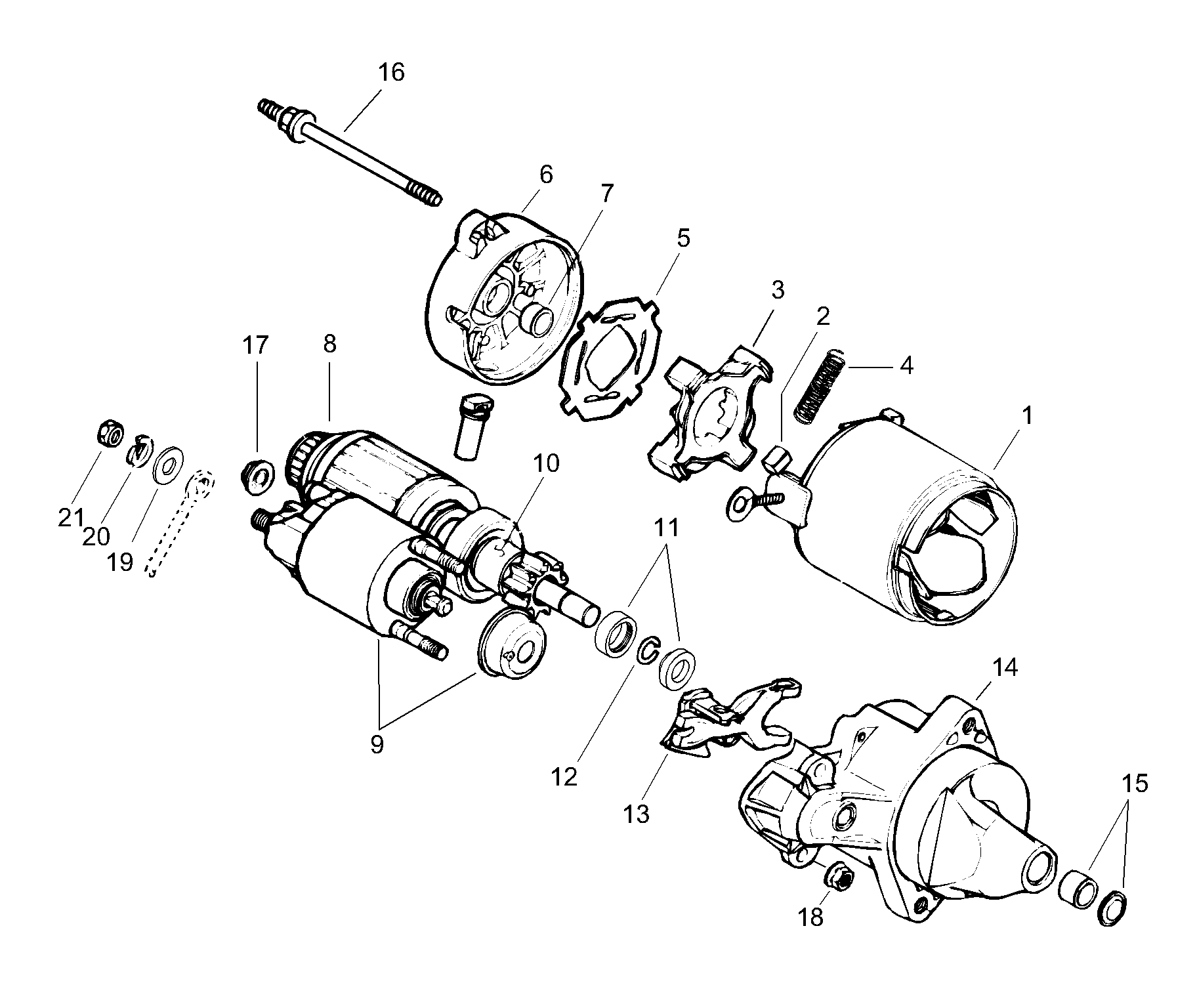

10- Electric Starter для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
1515175141 Electric starter assy. Includes items 1 thru 20Electric starter assy. Includes items 1 thru 20
-
1410213106 Hausing starterHausing starter
-
2410213107 BrushBrush
-
3410209700 Brush holderBrush holder
-
4410209800 SpringSpring
-
5410209900 Isolating plateIsolating plate
-
6410213108 End frameEnd frame
-
7410210100 BushingBushing
-
8410210200 Rotor assyRotor assy
-
9410210300 Magnetic switch assyMagnetic switch assy
-
10410210400 Clutch drive assyClutch drive assy
-
11410212500 Lock ringLock ring
-
12410212600 CirclipCirclip
-
13410213109 Control leverControl lever
-
14410213113 Bearing housingBearing housing
-
15410210900 BushingBushing
-
16410212000 Screw M5Screw M5
-
17410211100 Hexagon nut M8Hexagon nut M8
-
18410211200 NutNut
-
19234081410 Flat washerFlat washer
-
20420945752 Lock washerLock washer
-
21232081414 NutNut
