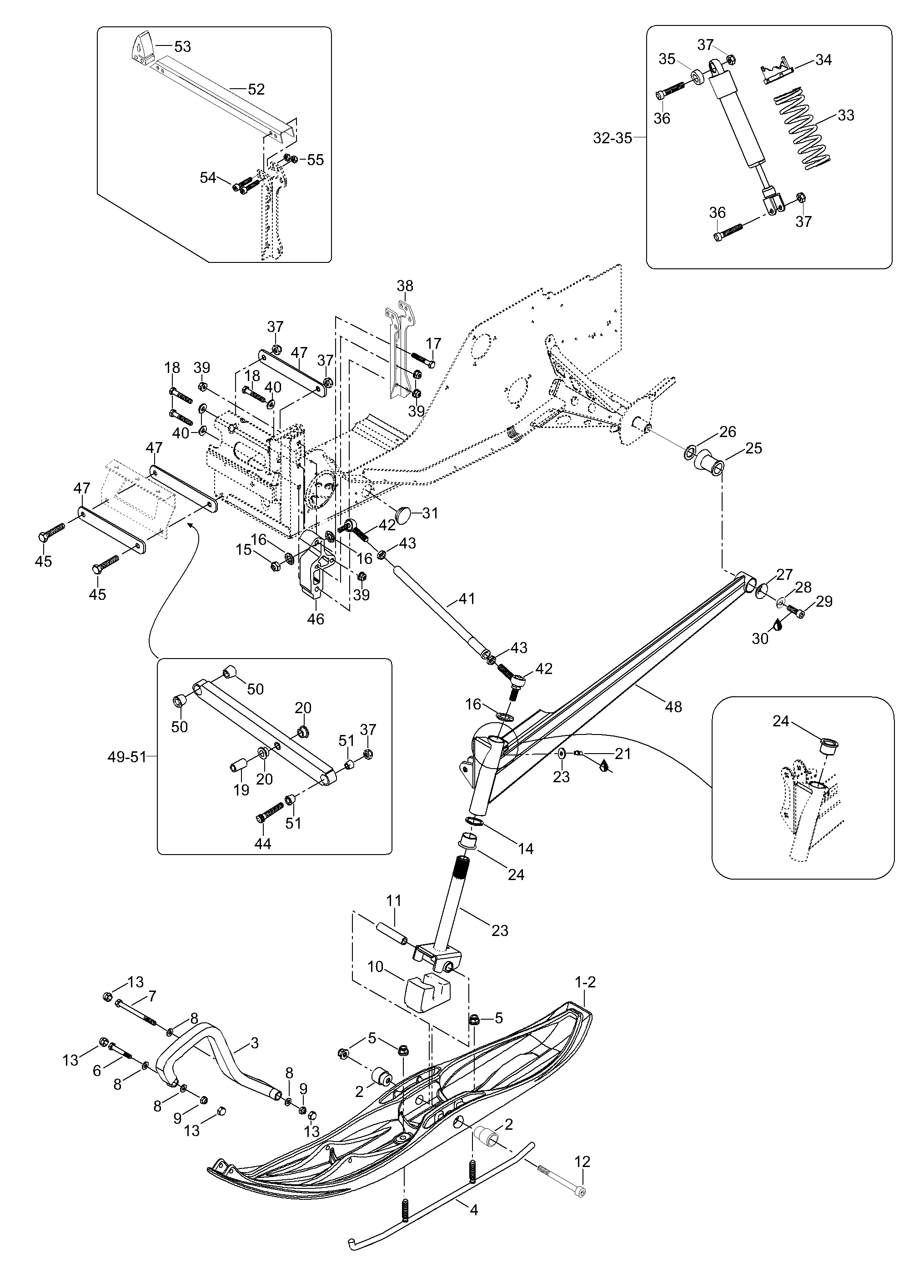

08- Front Suspension для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
1605148440 Plastic ski. Includes items 1 thru 2Plastic ski. Includes items 1 thru 2
-
2605348392 SleeveSleeve
-
3505070963 Plastic handlePlastic handle
-
4605349310 Runner carbideRunner carbide
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
640009 Screw M8 x 50Screw M8 x 50
-
740264 Screw M8 x 90Screw M8 x 90
-
820004 WasherWasher
-
933011 Elastic stop nut M8Elastic stop nut M8
-
10605348458 Stopper-skiStopper-ski
-
11506133300 SpacerSpacer
-
1240225 Allen screw M10 x 140Allen screw M10 x 140
-
1328056 CapCap
-
14505070004 WasherWasher
-
1533087 Jam nut elastic M12Jam nut elastic M12
-
1620074 Lock washerLock washer
-
1740010 Screw M8 x 55Screw M8 x 55
-
1840264 Screw M8 x 90Screw M8 x 90
-
195441433 BushingBushing
-
2031088 BearingBearing
-
2134011 Grease fittingGrease fitting
-
2220007 WasherWasher
-
23605248927 Ski legSki leg
-
24505070003 BushingBushing
-
25570062200 DamperDamper
-
26503146700 WasherWasher
-
27506079600 CupCup
-
2820014 Spring washerSpring washer
-
2940289 Allen screw M8 x 25Allen screw M8 x 25
-
30293800060 Loctite 243, 10mlLoctite 243, 10ml
-
31414916600 PlugPlug
-
3223180 Shock LYNX. 32 Includes items 35Shock LYNX. 32 Includes items 35
-
34503183700 CamCam
-
35230055 Rubber bushingRubber bushing
-
3640837 Allen screw M10 x 55Allen screw M10 x 55
-
3733012 Nut elastic M10Nut elastic M10
-
385247702 Shock bracketShock bracket
-
3933201 Elastic flanged nut M8Elastic flanged nut M8
-
4020104 Washer, hardenedWasher, hardened
-
415346122 Upper armUpper arm
-
4231092 Ball jointBall joint
-
4333048 Jam nut M12Jam nut M12
-
4440136 Allen screw M10 x 50Allen screw M10 x 50
-
4540814 Screw M10 x 110Screw M10 x 110
-
465447566 R.H. Upper arm bracketR.H. Upper arm bracket
-
465447559 L.H. Upper arm bracketL.H. Upper arm bracket
-
475346112 Support plateSupport plate
-
48605248970 R.H. Swing arm, Full MoonR.H. Swing arm, Full Moon
-
48605248969 L.H. Swing arm, Full MoonL.H. Swing arm, Full Moon
-
49605249207 Lower arm, Full Moon. 49 Includes items 51Lower arm, Full Moon. 49 Includes items 51
-
505447769 Inner sleeveInner sleeve
-
515447770 Outer sleeveOuter sleeve
-
525347225 BracketBracket
-
535348099 Rubber damperRubber damper
-
5440345 Allen screw M6 x 40Allen screw M6 x 40
-
5533010 Nut elastic M6Nut elastic M6
-
56413711500 Synthetic greaseSynthetic grease
