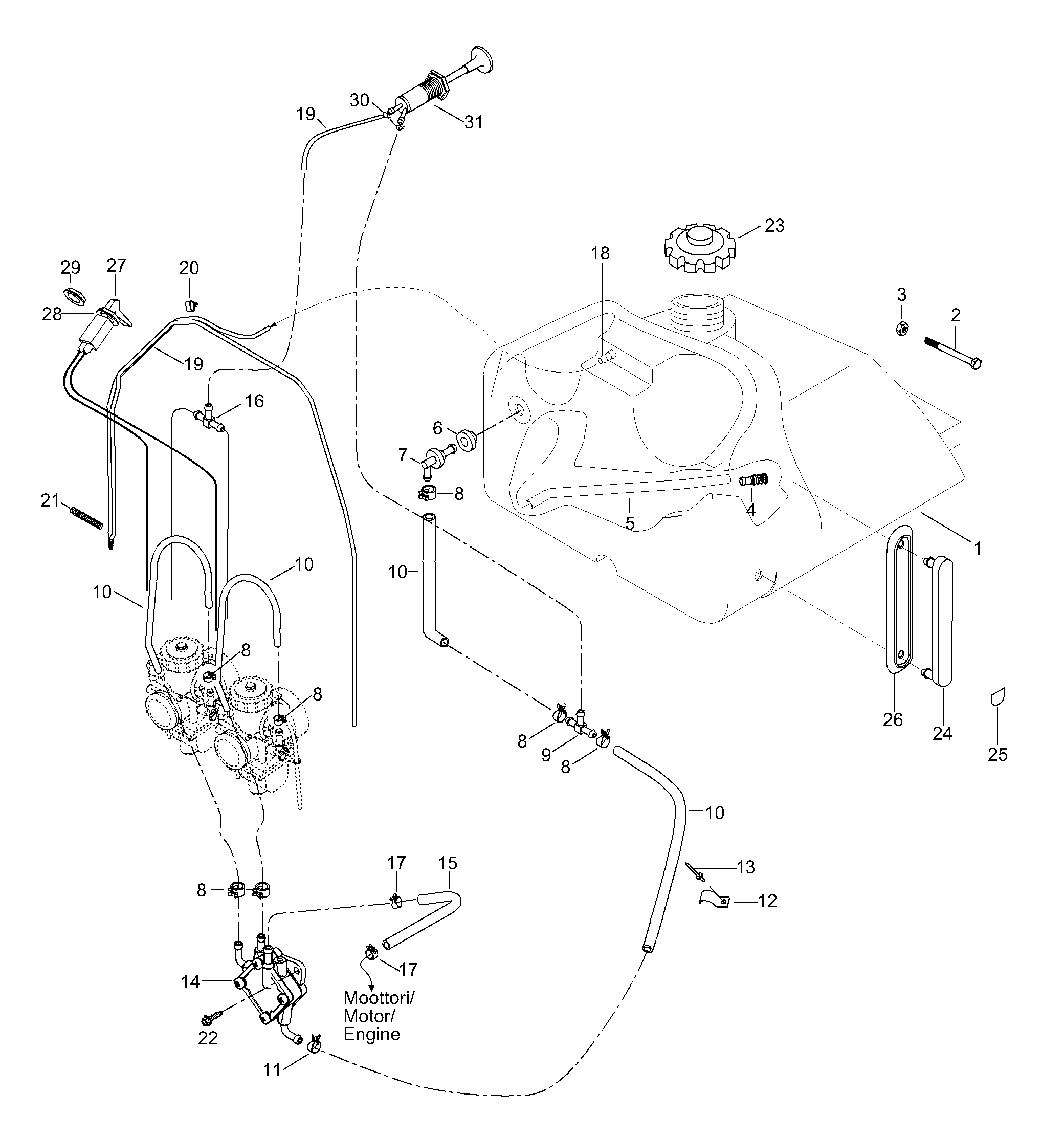

02- Fuel Tank для BRP Lynx Explorer 550 - 2004
-
№АртикулНазвание
-
15146246 Fuel tankFuel tank
-
240002 Screw M6 x 40Screw M6 x 40
-
333200 Elastig flanged nut M6Elastig flanged nut M6
-
4414872100 Fuel filterFuel filter
-
539048 Fuel line 12.5/7.5Fuel line 12.5/7.5
-
628037 RubberRubber
-
75341709 Angle adapterAngle adapter
-
8414655700 ClampClamp
-
10513033022 Fuel lineFuel line
-
11513032979 ClampClamp
-
12415018200 ClipClip
-
1336036 RivetRivet
-
14403901813 Fuel pumpFuel pump
-
1539001 Fuel line 11/6Fuel line 11/6
-
17414420700 Spring clipSpring clip
-
1819051 FittingFitting
-
1939035 Airhose 5/3Airhose 5/3
-
20513032923 Tube clampTube clamp
-
21414818200 SpringSpring
-
2240322 Self tapp. screw M6 x 16Self tapp. screw M6 x 16
-
23580259400 Cap assemblyCap assembly
-
24572015900 Fuel gaugeFuel gauge
-
25549200 Fuel labelFuel label
-
26570018000 Housing gaugeHousing gauge
-
27512059441 Choke cable. Includes items 27 thru 28Choke cable. Includes items 27 thru 28
-
28394103300 Lock washerLock washer
-
29512059094 Plastic nutPlastic nut
