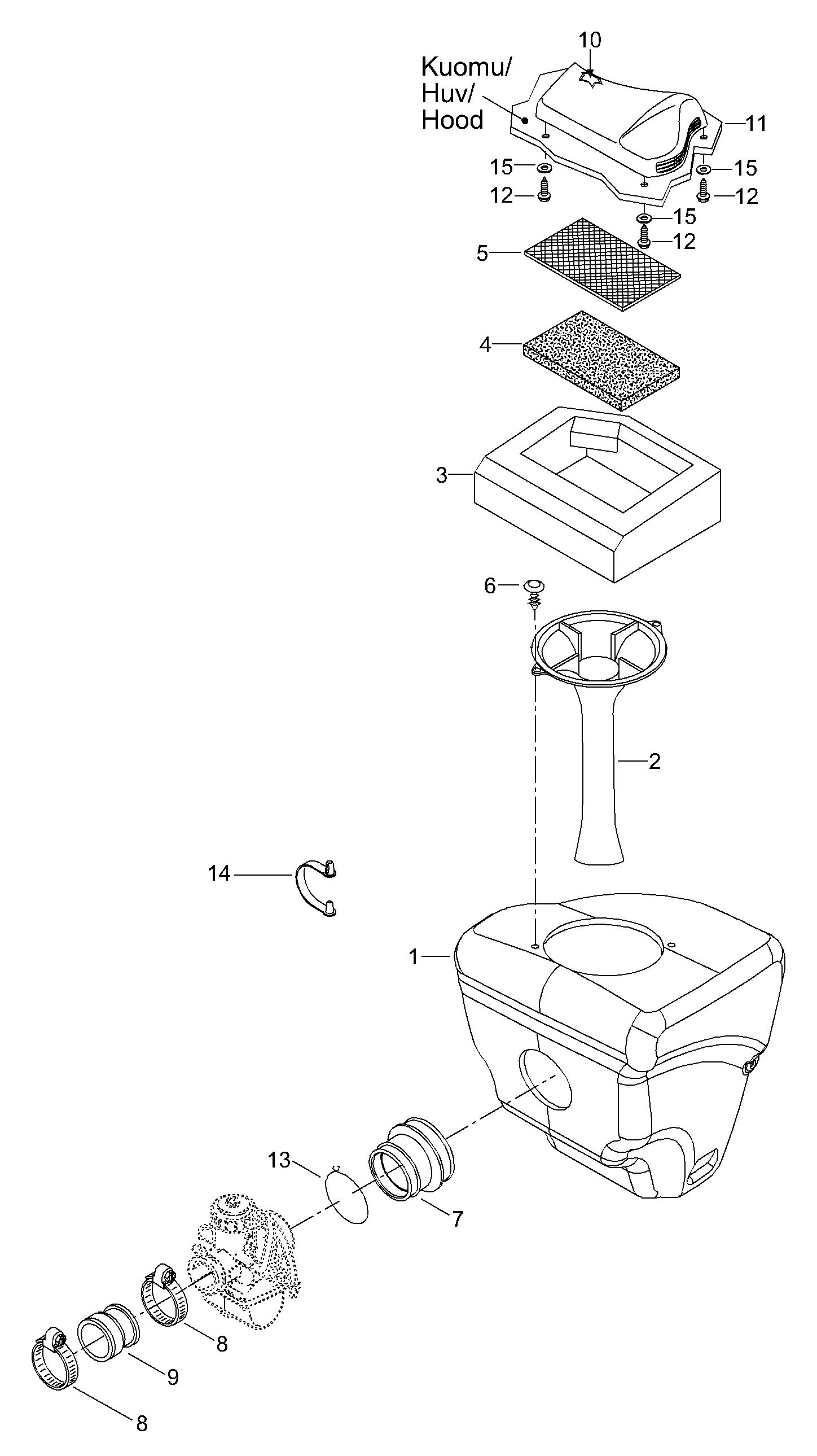

01- Air Silencer для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
15145397 Air silencer assyAir silencer assy
-
35346536 Exterior foamExterior foam
-
45345398 Air filterAir filter
-
55346220 Intake grillIntake grill
-
6414644300 DartDart
-
75245961 AdaptorAdaptor
-
8420951510 CollarCollar
-
9420867481 Fastening rubberFastening rubber
-
10414972600 Air filterAir filter
-
11572077900 Intake coverIntake cover
-
1240901 ScrewScrew
-
135346755 CollarCollar
-
14414379300 Cable clipCable clip
-
1520008 WasherWasher
