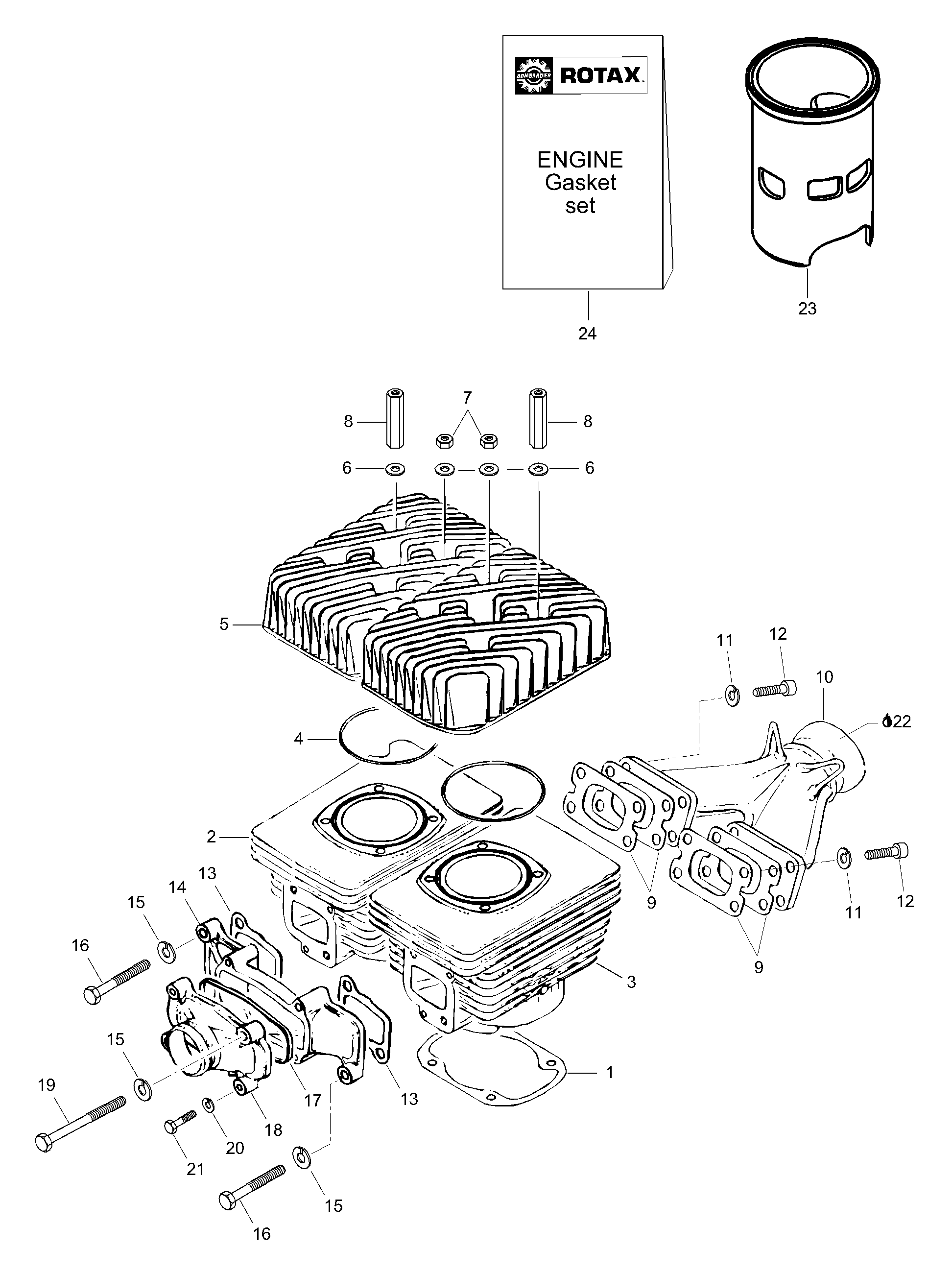

01- Cylinder для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
1420931780 Gasket, cyl.bottom 0.3Gasket, cyl.bottom 0.3
-
1420931781 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
1420931782 Gasket, cyl.bottom 0.6Gasket, cyl.bottom 0.6
-
2420923790 Cylinder,PTO.sideCylinder,PTO.side
-
3420923795 Cylinder, MAG. sideCylinder, MAG. side
-
4420931380 Gasket, cylinder headGasket, cylinder head
-
5420923377 Cylinder headCylinder head
-
620004 WasherWasher
-
7232081414 Nut M8Nut M8
-
8420842208 Nut M8Nut M8
-
9420850114 Gasket 1.0mmGasket 1.0mm
-
10420879459 Branch-YBranch-Y
-
1120014 Spring washerSpring washer
-
1240135 Allen screw M8x30Allen screw M8x30
-
13420831866 Gasket 1.0mmGasket 1.0mm
-
14420867435 Intake manifoldIntake manifold
-
1520014 Spring washerSpring washer
-
16420940491 Screw M8x35Screw M8x35
-
17420850190 Rubber ringRubber ring
-
18420867442 Intake cover assyIntake cover assy
-
19420841201 Screw M8x70Screw M8x70
-
20420945751 Lock washerLock washer
-
21207162544 Screw M6x25Screw M6x25
-
22293800090 Loctite 17914, 80 mlLoctite 17914, 80 ml
-
23420923533 Spare cylinder sleeveSpare cylinder sleeve
-
24420994232 Gasket setGasket set
