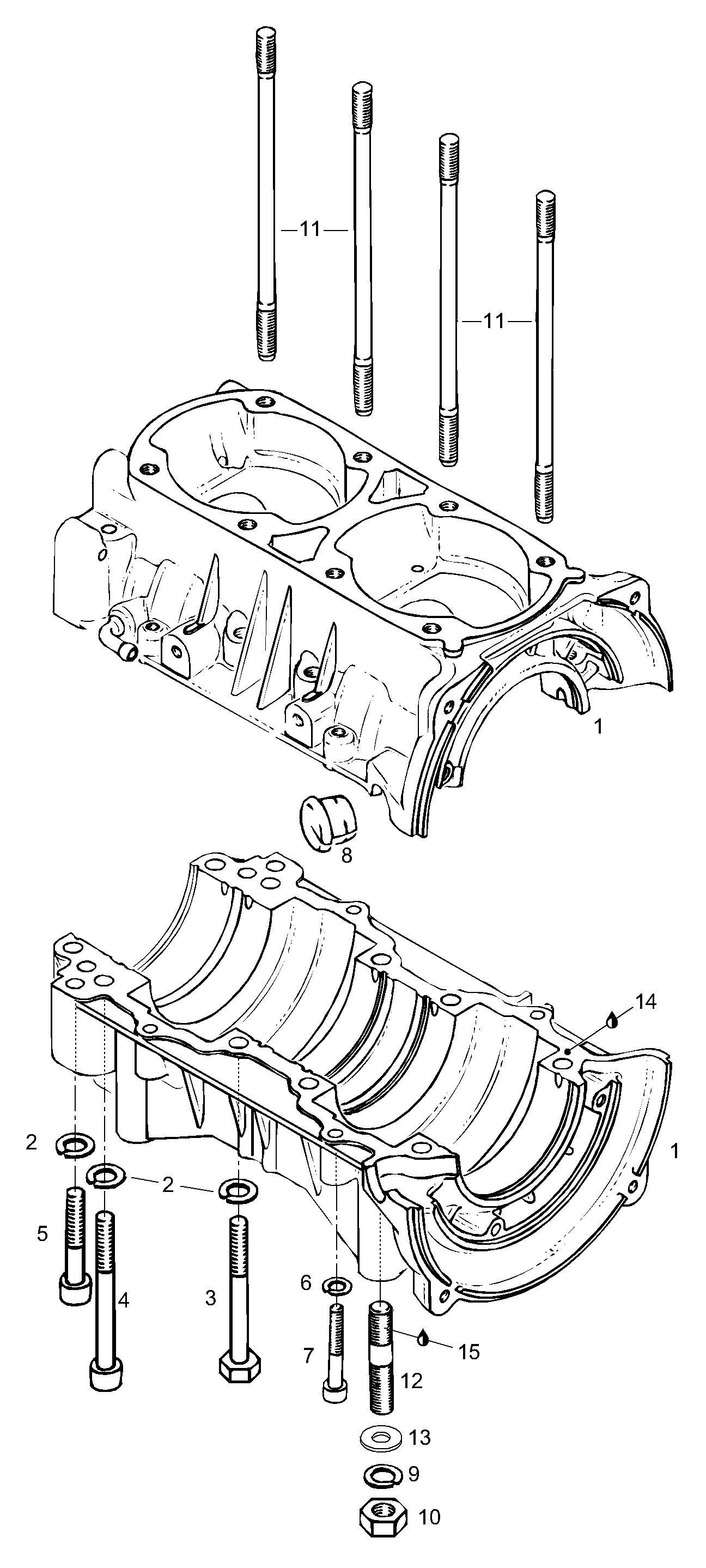

05- Crankcase для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
1420888481 Crankcase. Includes items 1 thru 7Crankcase. Includes items 1 thru 7
-
2420945752 Spring washerSpring washer
-
3420841201 Screw M8x70Screw M8x70
-
4420841831 Allen screw M8x75Allen screw M8x75
-
5420841566 Allen Screw M8x50Allen Screw M8x50
-
6420945751 Spring washerSpring washer
-
7420241816 Allen Screw M6x40Allen Screw M6x40
-
8420860962 Cable grommetCable grommet
-
920047 Spring washerSpring washer
-
10232006414 Nut M10Nut M10
-
11420841149 StudStud
-
12420940190 StudStud
-
13234001410 Flat washerFlat washer
-
14413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
