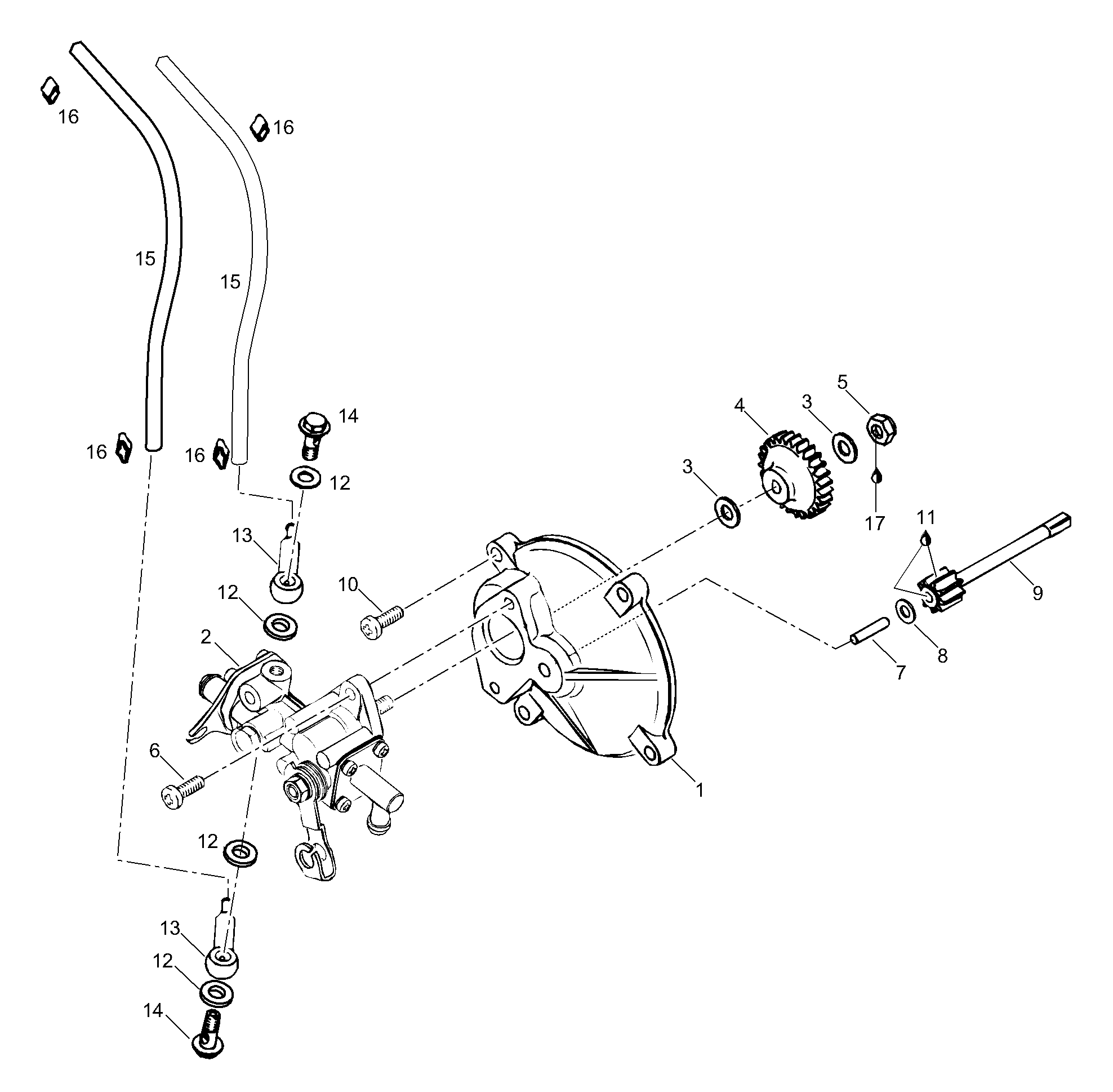

01- Oil Pump для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420887996 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5232561414 Lock nut, M6Lock nut, M6
-
6420841971 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841976 Screw M5.5x16Screw M5.5x16
-
11413707000 Molykote 111Molykote 111
-
12420227500 Gasket ringGasket ring
-
13420956010 Chock valve assyChock valve assy
-
14404146800 Banjo boltBanjo bolt
-
15420660493 Oil line, 325 mmOil line, 325 mm
-
16420853840 Clamp, 3-5 mmClamp, 3-5 mm
-
17420899785 Loctite 221, violetLoctite 221, violet
