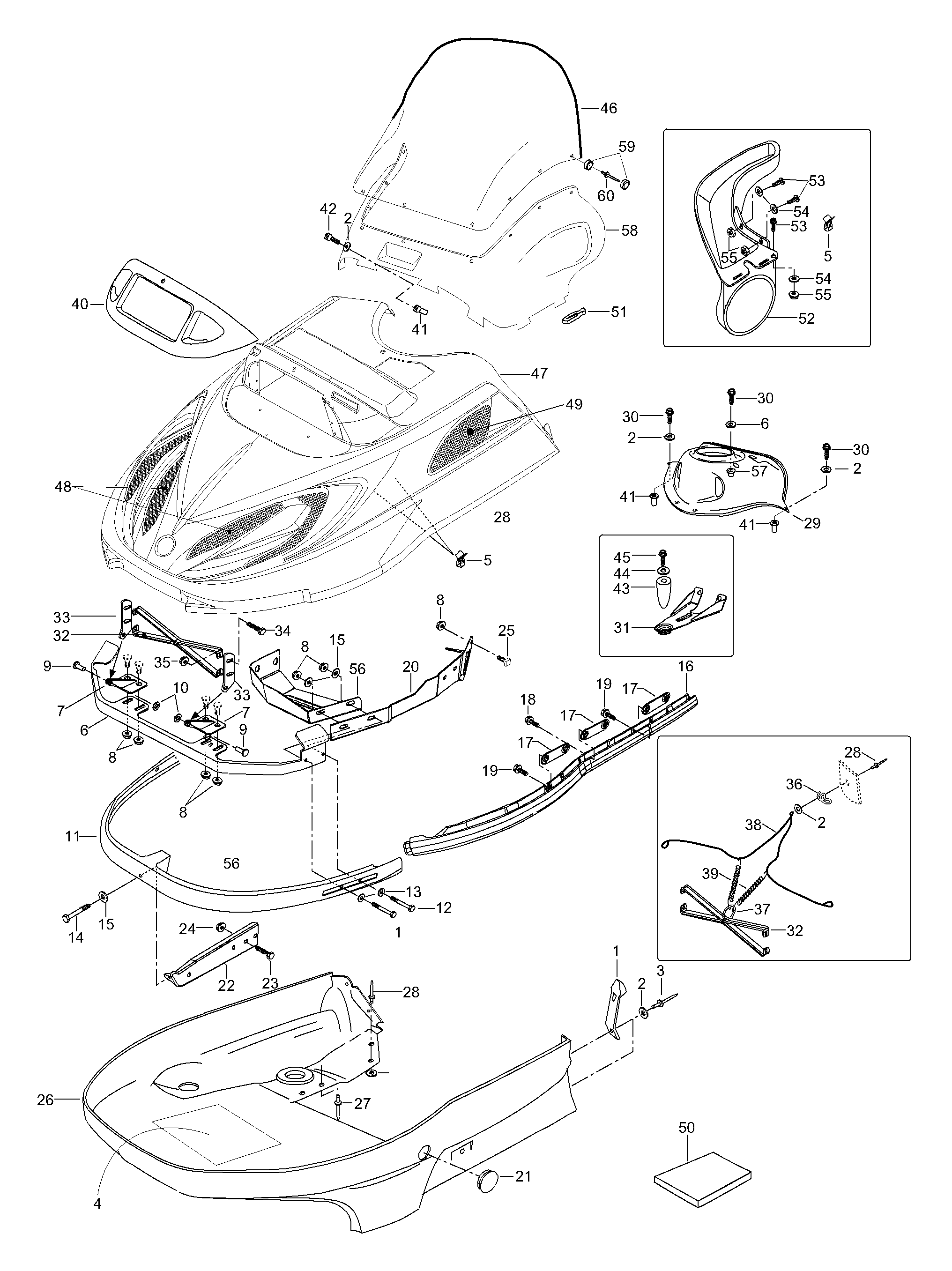

09- Hood для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
1570025900 Hood latchHood latch
-
220008 WasherWasher
-
336009 RivetRivet
-
45444437 Reflective sheetReflective sheet
-
5414227300 ClipClip
-
6517265100 Hood reinforcerHood reinforcer
-
7517289900 Hinge, lowerHinge, lower
-
833200 Elastic Flanged nut M6Elastic Flanged nut M6
-
9390906200 Rivet-flatRivet-flat
-
10389804300 Push-nutPush-nut
-
11517265400 BumperBumper
-
1240083 Screw M6x30Screw M6x30
-
13224061121 WasherWasher
-
1440867 Screw M6x30Screw M6x30
-
1520009 WasherWasher
-
165144965 R.H. Side bumperR.H. Side bumper
-
165144964 L.H. Side bumperL.H. Side bumper
-
175446213 Side bracketSide bracket
-
1840322 Screw M6x16Screw M6x16
-
1940377 Screw M6x20Screw M6x20
-
205246400 Support L.H.Support L.H.
-
205246399 Support R.H.Support R.H.
-
21570277300 Cap-pan bottomCap-pan bottom
-
225246183 Front supportFront support
-
2340386 Screw M8x30Screw M8x30
-
2433201 Elastic flanged nut M8Elastic flanged nut M8
-
255446813 ScrewScrew
-
265347412 Bottom panBottom pan
-
2736036 RivetRivet
-
2836005 RivetRivet
-
295146854 Switch dashSwitch dash
-
30732600030 ScrewScrew
-
31605350221 Guide plateGuide plate
-
32517278100 Hinge bracketHinge bracket
-
33517261100 Upper hingeUpper hinge
-
3440864 Screw M5x20Screw M5x20
-
3533062 Elastic flanged nut M5Elastic flanged nut M5
-
365442870 Retainer Cable ClipRetainer Cable Clip
-
37415058300 RingRing
-
385342674 Cab retainer cableCab retainer cable
-
395442675 SpringSpring
-
40572079200 Lamp moldingLamp molding
-
4128055 Well nutWell nut
-
4240358 Allen screwAllen screw
-
435446857 Guide PinGuide Pin
-
4420038 WasherWasher
-
4540375 ScrewScrew
-
46539504 WindscreenWindscreen
-
47605148658 HoodHood
-
485246261 R.H. Front grillR.H. Front grill
-
485246262 L.H. Front grillL.H. Front grill
-
495347250 R.H. rear grillR.H. rear grill
-
495346263 L.H. rear grillL.H. rear grill
-
50414632400 Foam (74'’x34'’x1/2'’)Foam (74'’x34'’x1/2'’)
-
51570023800 Windshield latchWindshield latch
-
525246991 Air ductAir duct
-
5340247 Screw M5x16Screw M5x16
-
5420002 WasherWasher
-
5533062 Elastic flanged nut M5Elastic flanged nut M5
-
56605250251 R.H. bracketR.H. bracket
-
56605250252 L.H. bracketL.H. bracket
-
57547539 Rubber damperRubber damper
-
585246990 Windshield lower partWindshield lower part
-
59282000 CapCap
-
6036002 RivetRivet
