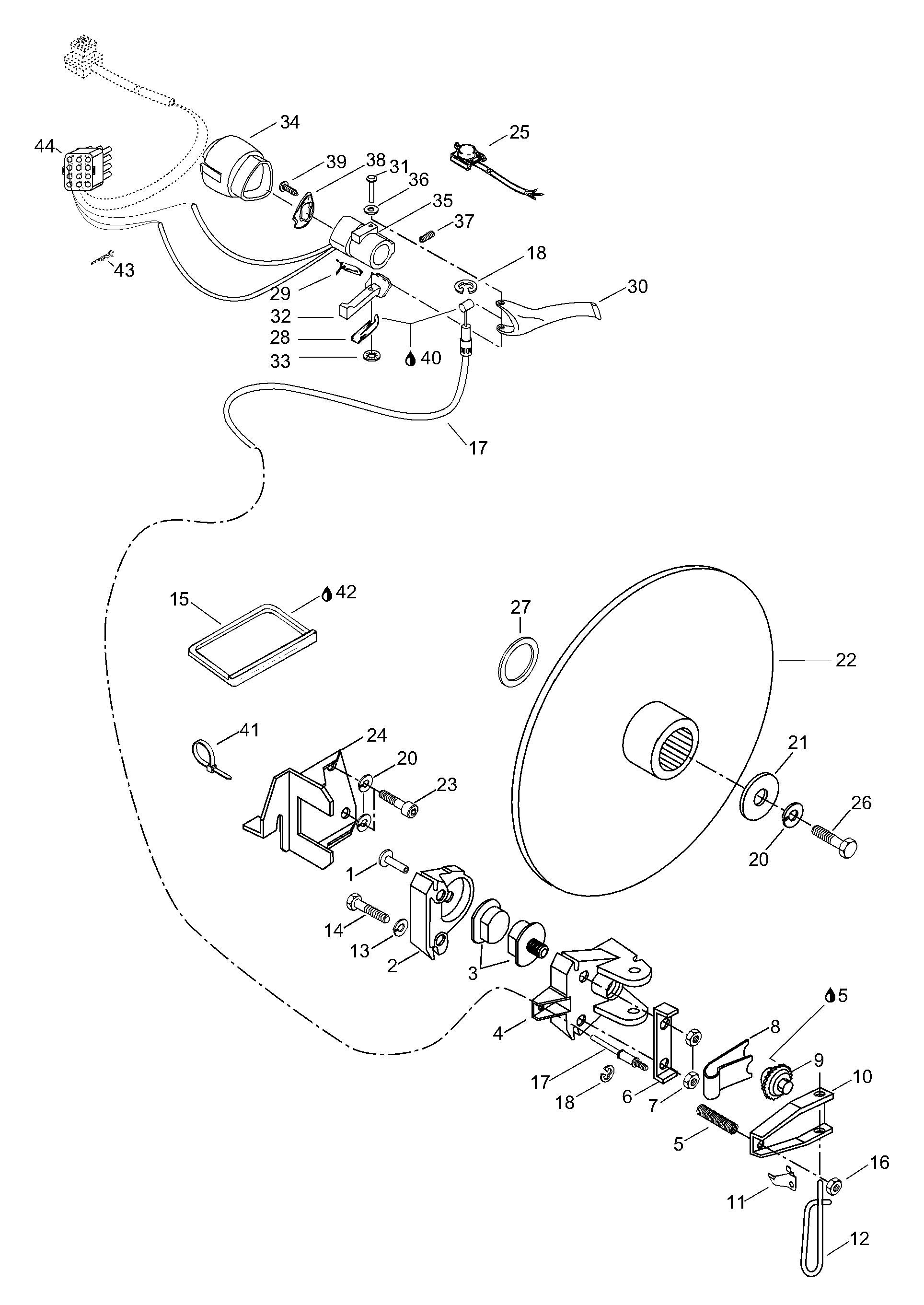

06- Brake Assy для BRP Lynx Forest - 2004
-
№АртикулНазвание
-
1507032331 Brake calibre, mec.. Includes items 1 thru 15Brake calibre, mec.. Includes items 1 thru 15
-
1390409600 RivetRivet
-
2414466800 AnvilAnvil
-
3860700100 Brake pad kitBrake pad kit
-
4507026600 Mobile brake lining holdMobile brake lining hold
-
5293800070 Loctite 767Loctite 767
-
6507020400 Locking tabLocking tab
-
733011 Nut elastic M8x1.25Nut elastic M8x1.25
-
8507020200 SpringSpring
-
9507032310 Ratchel wheelRatchel wheel
-
10507021500 Brake leverBrake lever
-
11507009400 Ratchet springRatchet spring
-
12507032306 PinPin
-
13507023600 Lock tabLock tab
-
14207085544 Screw M8x1.25x55Screw M8x1.25x55
-
15572013500 SliderSlider
-
1633010 Nut elastic M6Nut elastic M6
-
17414922500 Brake cableBrake cable
-
1831038 CirclipCirclip
-
19414460600 SpringSpring
-
2020014 Lock washerLock washer
-
2120010 WasherWasher
-
225340065 Brake discBrake disc
-
2340305 Allen screw M8x20Allen screw M8x20
-
245340079 Brake SupportBrake Support
-
25415085800 Dimmer switchDimmer switch
-
2640036 Screw M8x20Screw M8x20
-
2731013 ShimShim
-
28507032317 SpringSpring
-
29415085700 Brake light switchBrake light switch
-
30572025700 Handle brakeHandle brake
-
31517229400 PinPin
-
32572025200 Brake leverBrake lever
-
33389804300 Push nutPush nut
-
345448256 Brake coverBrake cover
-
35507032313 Brake handle housingBrake handle housing
-
36414729400 Spring washerSpring washer
-
37414440800 Screw M8x10Screw M8x10
-
38572086600 CoverCover
-
39414473200 ScrewScrew
-
40293550004 Dielectric greaseDielectric grease
-
4127026 Tie rapTie rap
-
42413711500 Lithium greaseLithium grease
-
4342603 Male terminalMale terminal
-
4442266 Connector housingConnector housing
